Riegler Filter regulator »FUTURA«, PC, Size 4, G 1, 0.5-8 bar, Fully a.
Type number: FU 6121
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator »FUTURA«, with PC container, Protective cage, Pressure gauge, 5 µm, Size 4, G 1, Control range 0.5-8 bar, Fully
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 1.5 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 1 |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 4 |

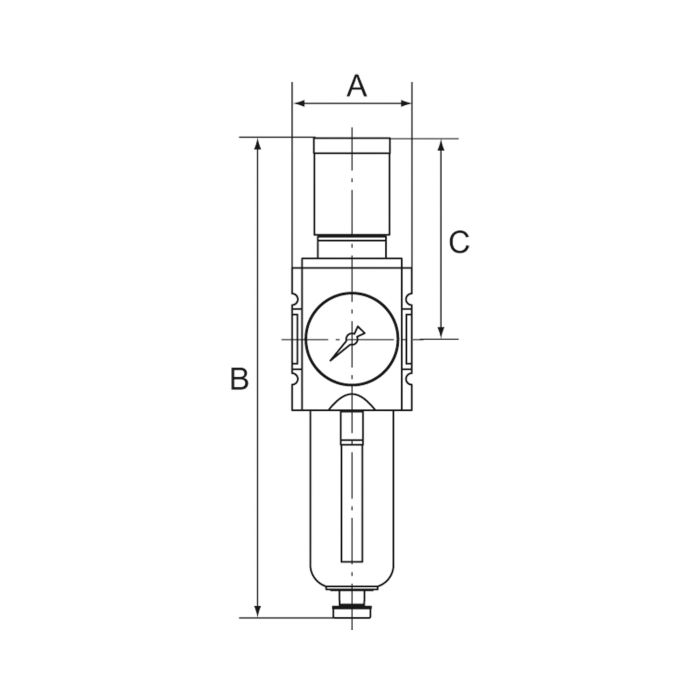

| A | 85 mm |
| B | 343 mm |
| C | 137 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I. 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Intrinsic air consumption | Yes |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow_1 | 13000 l/min |
| SCIP message number Supplier | a79d9a92-8009-4f9b-a1cd-06a52457897e |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[151764] Riegler Filter regulator »FUTURA«, PC, Size 1, G 1/4, 0.1-1 bar, Semi a.](/web/image/product.template/122202/image_128/%5B151764%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%201-4%2C%200.1-1%20bar%2C%20Semi%20a.?unique=90bc1cf)
|
Typennummer: FU 811-1 |
79.88 € | |
![[151785] Riegler Filter regulator »FUTURA«, PC, Size 1, G 1/4, 0.1-2 bar, Fully a.](/web/image/product.template/122301/image_128/%5B151785%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%201-4%2C%200.1-2%20bar%2C%20Fully%20a.?unique=cecd528)
|
Typennummer: FU 821-2 |
136.58 € | |
![[151765] Riegler Filter regulator »FUTURA«, PC, Size 1, G 1/4, 0.1-2 bar, Semi a.](/web/image/product.template/122264/image_128/%5B151765%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%201-4%2C%200.1-2%20bar%2C%20Semi%20a.?unique=483e2e4)
|
Typennummer: FU 811-2 |
79.88 € | |
![[151787] Riegler Filter regulator »FUTURA«, PC, Size 1, G1/4, 0.5-10 bar, Fully a.](/web/image/product.template/122304/image_128/%5B151787%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G1-4%2C%200.5-10%20bar%2C%20Fully%20a.?unique=19b3a2f)
|
Typennummer: FU 821-10 |
136.58 € | |
![[151767] Riegler Filter regulator »FUTURA«, PC, Size 1, G 1/4, 0.5-10 bar, Semi a.](/web/image/product.template/122268/image_128/%5B151767%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%201-4%2C%200.5-10%20bar%2C%20Semi%20a.?unique=8227159)
|
Typennummer: FU 811-10 |
79.88 € | |
![[151768] Riegler Filter regulator »FUTURA«, PC, Size 1, G 1/4, 0.5-16 bar, Semi a.](/web/image/product.template/122269/image_128/%5B151768%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%201-4%2C%200.5-16%20bar%2C%20Semi%20a.?unique=3d03709)
|
Typennummer: FU 811-16 |
79.88 € | |
![[100124] Riegler Filter regulator »FUTURA«, PC, Size 1, G 1/4, 0.5-8 bar, Fully a.](/web/image/product.template/122303/image_128/%5B100124%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%201-4%2C%200.5-8%20bar%2C%20Fully%20a.?unique=04a552a)
|
Type number: FU 821 |
139.17 € | |
![[100118] Riegler Filter regulator »FUTURA«, PC, Size 1, G 1/4, 0.5-8 bar, Semi a.](/web/image/product.template/122267/image_128/%5B100118%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%201-4%2C%200.5-8%20bar%2C%20Semi%20a.?unique=29f6c90)
|
Type number: FU 811 |
81.41 € | |
![[151791] Riegler Filter regulator »FUTURA«, PC, Size 1, G 3/8, 0.2-4 bar, Fully a.](/web/image/product.template/122308/image_128/%5B151791%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.2-4%20bar%2C%20Fully%20a.?unique=7193230)
|
Typennummer: FU 822-4 |
136.58 € | |
![[151771] Riegler Filter regulator »FUTURA«, PC, Size 1, G 3/8, 0.2-4 bar, Semi a.](/web/image/product.template/122272/image_128/%5B151771%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.2-4%20bar%2C%20Semi%20a.?unique=0c847a3)
|
Typennummer: FU 812-4 |
79.88 € | |
![[151792] Riegler Filter regulator »FUTURA«, PC, Size 1, G3/8, 0.5-10 bar, Fully a.](/web/image/product.template/122310/image_128/%5B151792%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G3-8%2C%200.5-10%20bar%2C%20Fully%20a.?unique=52fd217)
|
Typennummer: FU 822-10 |
130.07 € | |
![[151772] Riegler Filter regulator »FUTURA«, PC, Size 1, G 3/8, 0.5-10 bar, Semi a.](/web/image/product.template/122274/image_128/%5B151772%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.5-10%20bar%2C%20Semi%20a.?unique=e1a8b73)
|
Typennummer: FU 812-10 |
79.88 € | |
![[151793] Riegler Filter regulator »FUTURA«, PC, Size 1, G3/8, 0.5-16 bar, Fully a.](/web/image/product.template/122311/image_128/%5B151793%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G3-8%2C%200.5-16%20bar%2C%20Fully%20a.?unique=651159c)
|
Typennummer: FU 822-16 |
136.58 € | |
![[151773] Riegler Filter regulator »FUTURA«, PC, Size 1, G 3/8, 0.5-16 bar, Semi a.](/web/image/product.template/122275/image_128/%5B151773%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.5-16%20bar%2C%20Semi%20a.?unique=cd024b7)
|
Typennummer: FU 812-16 |
79.88 € | |
![[100125] Riegler Filter regulator »FUTURA«, PC, Size 1, G 3/8, 0.5-8 bar, Fully a.](/web/image/product.template/122309/image_128/%5B100125%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.5-8%20bar%2C%20Fully%20a.?unique=157ca96)
|
Type number: FU 822 |
139.17 € | |
![[100119] Riegler Filter regulator »FUTURA«, PC, Size 1, G 3/8, 0.5-8 bar, Semi a.](/web/image/product.template/122273/image_128/%5B100119%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.5-8%20bar%2C%20Semi%20a.?unique=39e66fb)
|
Type number: FU 812 |
81.41 € | |
![[151799] Riegler Filter regulator »FUTURA«, PC, Size 2, G 1/2, 0.1-1 bar, Fully a.](/web/image/product.template/122318/image_128/%5B151799%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%201-2%2C%200.1-1%20bar%2C%20Fully%20a.?unique=b825045)
|
Typennummer: FU 824-1 |
193.89 € | |
![[139501] Riegler Filter regulator »FUTURA«, PC, Size 2, G 1/2, 0.1-1 bar, Semi a.](/web/image/product.template/122282/image_128/%5B139501%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%201-2%2C%200.1-1%20bar%2C%20Semi%20a.?unique=426514f)
|
Type number: FU 814-1 |
136.87 € | |
![[151800] Riegler Filter regulator »FUTURA«, PC, Size 2, G 1/2, 0.1-2 bar, Fully a.](/web/image/product.template/122319/image_128/%5B151800%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%201-2%2C%200.1-2%20bar%2C%20Fully%20a.?unique=740e0d6)
|
Typennummer: FU 824-2 |
193.89 € | |
![[139502] Riegler Filter regulator »FUTURA«, PC, Size 2, G 1/2, 0.1-2 bar, Semi a.](/web/image/product.template/122283/image_128/%5B139502%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%201-2%2C%200.1-2%20bar%2C%20Semi%20a.?unique=74d2277)
|
Type number: FU 814-2 |
136.87 € | |
![[151802] Riegler Filter regulator »FUTURA«, PC, Size 2, G1/2, 0.5-10 bar, Fully a.](/web/image/product.template/122322/image_128/%5B151802%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G1-2%2C%200.5-10%20bar%2C%20Fully%20a.?unique=ef5300b)
|
Typennummer: FU 824-10 |
193.89 € | |
![[139504] Riegler Filter regulator »FUTURA«, PC, Size 2, G 1/2, 0.5-10 bar, Semi a.](/web/image/product.template/122286/image_128/%5B139504%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%201-2%2C%200.5-10%20bar%2C%20Semi%20a.?unique=2e68f38)
|
Type number: FU 814-10 |
136.87 € | |
![[151803] Riegler Filter regulator »FUTURA«, PC, Size 2, G1/2, 0.5-16 bar, Fully a.](/web/image/product.template/122323/image_128/%5B151803%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G1-2%2C%200.5-16%20bar%2C%20Fully%20a.?unique=27467c2)
|
Typennummer: FU 824-16 |
193.89 € | |
![[139505] Riegler Filter regulator »FUTURA«, PC, Size 2, G 1/2, 0.5-16 bar, Semi a.](/web/image/product.template/122287/image_128/%5B139505%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%201-2%2C%200.5-16%20bar%2C%20Semi%20a.?unique=09c8f44)
|
Type number: FU 814-16 |
136.87 € | |
![[100127] Riegler Filter regulator »FUTURA«, PC, Size 2, G 1/2, 0.5-8 bar, Fully a.](/web/image/product.template/122321/image_128/%5B100127%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%201-2%2C%200.5-8%20bar%2C%20Fully%20a.?unique=72c6b1d)
|
Type number: FU 824 |
197.58 € | |
![[100121] Riegler Filter regulator »FUTURA«, PC, Size 2, G 1/2, 0.5-8 bar, Semi a.](/web/image/product.template/122285/image_128/%5B100121%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%201-2%2C%200.5-8%20bar%2C%20Semi%20a.?unique=f83e606)
|
Type number: FU 814 |
139.49 € | |
![[151794] Riegler Filter regulator »FUTURA«, PC, Size 2, G 3/8, 0.1-1 bar, Fully a.](/web/image/product.template/122312/image_128/%5B151794%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%203-8%2C%200.1-1%20bar%2C%20Fully%20a.?unique=400b2e5)
|
Typennummer: FU 823-1 |
193.89 € | |
![[139496] Riegler Filter regulator »FUTURA«, PC, Size 2, G 3/8, 0.1-1 bar, Semi a.](/web/image/product.template/122276/image_128/%5B139496%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%203-8%2C%200.1-1%20bar%2C%20Semi%20a.?unique=432ec67)
|
Type number: FU 813-1 |
136.87 € | |
![[151797] Riegler Filter regulator »FUTURA«, PC, Size 2, G3/8, 0.5-10 bar, Fully a.](/web/image/product.template/122316/image_128/%5B151797%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G3-8%2C%200.5-10%20bar%2C%20Fully%20a.?unique=b6c7e3d)
|
Typennummer: FU 823-10 |
193.89 € | |
![[139499] Riegler Filter regulator »FUTURA«, PC, Size 2, G 3/8, 0.5-10 bar, Semi a.](/web/image/product.template/122280/image_128/%5B139499%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%203-8%2C%200.5-10%20bar%2C%20Semi%20a.?unique=da398f3)
|
Type number: FU 813-10 |
136.87 € | |
![[151798] Riegler Filter regulator »FUTURA«, PC, Size 2, G3/8, 0.5-16 bar, Fully a.](/web/image/product.template/122317/image_128/%5B151798%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G3-8%2C%200.5-16%20bar%2C%20Fully%20a.?unique=e30c9f5)
|
Typennummer: FU 823-16 |
193.89 € | |
![[139500] Riegler Filter regulator »FUTURA«, PC, Size 2, G 3/8, 0.5-16 bar, Semi a.](/web/image/product.template/122281/image_128/%5B139500%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%203-8%2C%200.5-16%20bar%2C%20Semi%20a.?unique=67b34c9)
|
Type number: FU 813-16 |
136.87 € | |
![[100126] Riegler Filter regulator »FUTURA«, PC, Size 2, G 3/8, 0.5-8 bar, Fully a.](/web/image/product.template/122315/image_128/%5B100126%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%203-8%2C%200.5-8%20bar%2C%20Fully%20a.?unique=de7f9a6)
|
Type number: FU 823 |
197.58 € | |
![[100120] Riegler Filter regulator »FUTURA«, PC, Size 2, G 3/8, 0.5-8 bar, Semi a.](/web/image/product.template/122279/image_128/%5B100120%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%202%2C%20G%203-8%2C%200.5-8%20bar%2C%20Semi%20a.?unique=90fd405)
|
Type number: FU 813 |
139.49 € | |
![[151811] Riegler Filter regulator »FUTURA«, PC, Size 4, G 1, 0.2-4 bar, Fully a.](/web/image/product.template/122332/image_128/%5B151811%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%204%2C%20G%201%2C%200.2-4%20bar%2C%20Fully%20a.?unique=5f68878)
|
Typennummer: FU 6121-4 |
377.37 € | |
![[151781] Riegler Filter regulator »FUTURA«, PC, Size 4, G 1, 0.2-4 bar, Semi a.](/web/image/product.template/122296/image_128/%5B151781%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%204%2C%20G%201%2C%200.2-4%20bar%2C%20Semi%20a.?unique=543af4a)
|
Typennummer: FU 6111-4 |
314.37 € | |

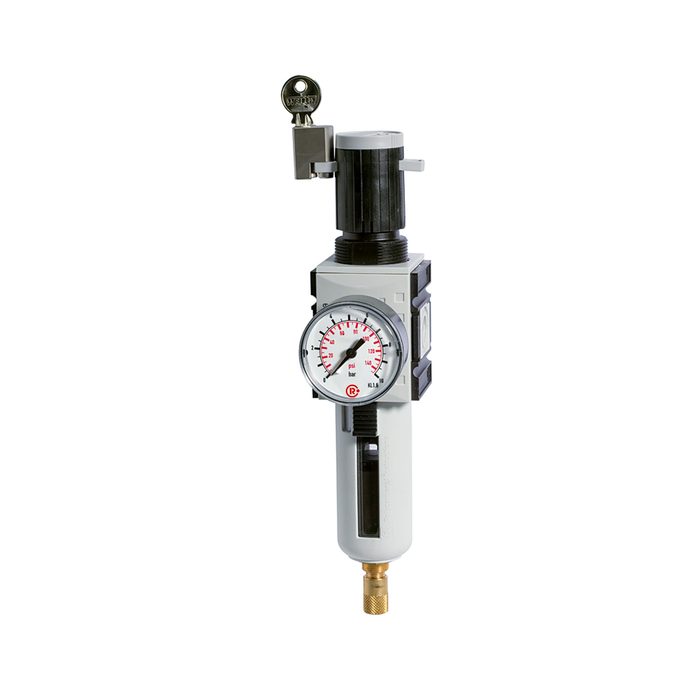

![[151812] Riegler Filter regulator »FUTURA«, PC, Size 4, G 1, 0.5-10 bar, Fully a.](/web/image/product.template/122334/image_128/%5B151812%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%204%2C%20G%201%2C%200.5-10%20bar%2C%20Fully%20a.?unique=064fbcb)
|
Typennummer: FU 6121-10 |
377.37 € | |
![[151813] Riegler Filter regulator »FUTURA«, PC, Size 4, G 1, 0.5-16 bar, Fully a.](/web/image/product.template/122335/image_128/%5B151813%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%204%2C%20G%201%2C%200.5-16%20bar%2C%20Fully%20a.?unique=49f9021)
|
Typennummer: FU 6121-16 |
377.37 € | |
![[100123] Riegler Filter regulator »FUTURA«, PC, Size 4, G 1, 0.5-8 bar, Semi a.](/web/image/product.template/122297/image_128/%5B100123%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%204%2C%20G%201%2C%200.5-8%20bar%2C%20Semi%20a.?unique=ad7c3f2)
|
Type number: FU 6111 |
320.37 € | |
![[151775] Riegler Filter regulator »FUTURA«, PC, Size 4, G 3/4, 0.1-2 bar, Semi a.](/web/image/product.template/122289/image_128/%5B151775%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%204%2C%20G%203-4%2C%200.1-2%20bar%2C%20Semi%20a.?unique=5375451)
|
Typennummer: FU 6110-2 |
314.37 € | |
![[151778] Riegler Filter regulator »FUTURA«, PC, Size 4, G 3/4, 0.5-16 bar, Semi a.](/web/image/product.template/122293/image_128/%5B151778%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%204%2C%20G%203-4%2C%200.5-16%20bar%2C%20Semi%20a.?unique=1196d89)
|
Typennummer: FU 6110-16 |
314.37 € | |
![[100128] Riegler Filter regulator »FUTURA«, PC, Size 4, G 3/4, 0.5-8 bar, Fully a.](/web/image/product.template/122327/image_128/%5B100128%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%204%2C%20G%203-4%2C%200.5-8%20bar%2C%20Fully%20a.?unique=7b3266d)
|
Type number: FU 6120 |
384.57 € | |
![[100122] Riegler Filter regulator »FUTURA«, PC, Size 4, G 3/4, 0.5-8 bar, Semi a.](/web/image/product.template/122291/image_128/%5B100122%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%204%2C%20G%203-4%2C%200.5-8%20bar%2C%20Semi%20a.?unique=c42ee99)
|
Type number: FU 6110 |
320.37 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100037] Riegler Plug lock for »FUTURA«, made of nickel-plated brass](/web/image/product.template/118199/image_128/%5B100037%5D%20Riegler%20Plug%20lock%20for%20%C2%BBFUTURA%C2%AB%2C%20made%20of%20nickel-plated%20brass?unique=e6e931c)
|
Type number: SS 32 |
73.26 € | |
![[100048] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 4](/web/image/product.template/118210/image_128/%5B100048%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=c80aa80)
|
Type number: H 854 |
21.59 € | |
![[100049] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 4](/web/image/product.template/118211/image_128/%5B100049%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=97db1fa)
|
Type number: WK 103 |
10.28 € | |
![[100050] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 4](/web/image/product.template/118212/image_128/%5B100050%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=a26c95c)
|
Type number: KP 300 |
7.32 € | |
![[100140] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 4, Ablass: HA](/web/image/product.template/123204/image_128/%5B100140%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%204%2C%20Ablass:%20HA?unique=bc2b740)
|
Type number: BSF 34 |
20.11 € | |
![[100141] Riegler Metal container incl. viewing tube, for »FUTURA«, Size 4](/web/image/product.template/123205/image_128/%5B100141%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=ede1f7d)
|
Type number: MF 34 |
73.08 € | |

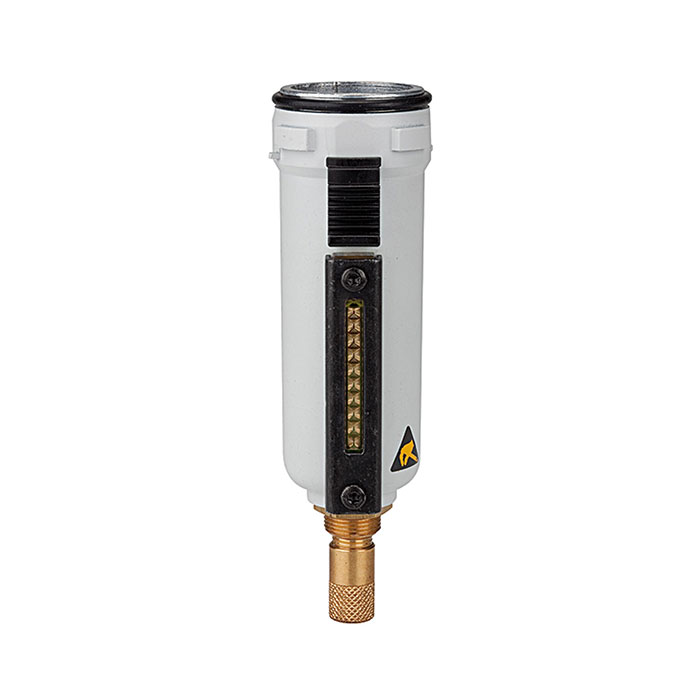

![[123967] RIEGLER Metal container, for »FUTURA«, Size 4, Fully-automatic (NC)](/web/image/product.template/202406/image_128/%5B123967%5D%20RIEGLER%20Metal%20container%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20Fully-automatic%20%28NC%29?unique=b48bf1f)
|
Type number: MF 34-NC-A |
88.06 € | |
![[135853] RIEGLER Wall console with connection thread G 3/4, for »FUTURA«, Size 4](/web/image/product.template/206210/image_128/%5B135853%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=1c8e668)
|
Type number: WK 104-34 |
64.47 € | |
![[135854] RIEGLER Wall console with connection thread G 1, for »FUTURA«, Size 4](/web/image/product.template/206211/image_128/%5B135854%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=bbe8c20)
|
Type number: WK 104-1 |
64.47 € | |
![[152961] RIEGLER Automatic bleeder valve, usually closed (NC)](/web/image/product.template/212486/image_128/%5B152961%5D%20RIEGLER%20Automatic%20bleeder%20valve%2C%20usually%20closed%20%28NC%29?unique=22177f7)
|
Typennummer: 655.6.901 |
64.69 € | |

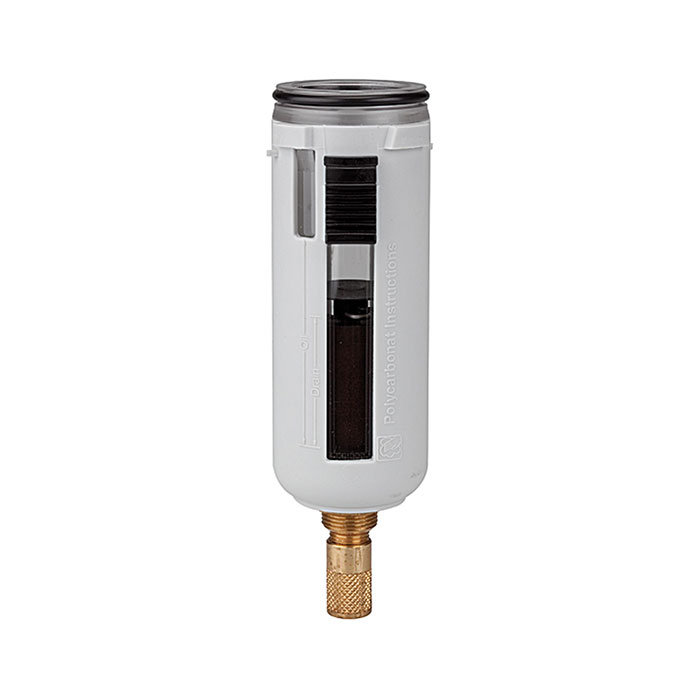

![[156476] RIEGLER Polycarbonate container, »FUTURA«, Size 4, Fully-automatic (NC)](/web/image/product.template/213291/image_128/%5B156476%5D%20RIEGLER%20Polycarbonate%20container%2C%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20Fully-automatic%20%28NC%29?unique=58b91c9)
|
Typennummer: BSF 34-NC-A |
59.17 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

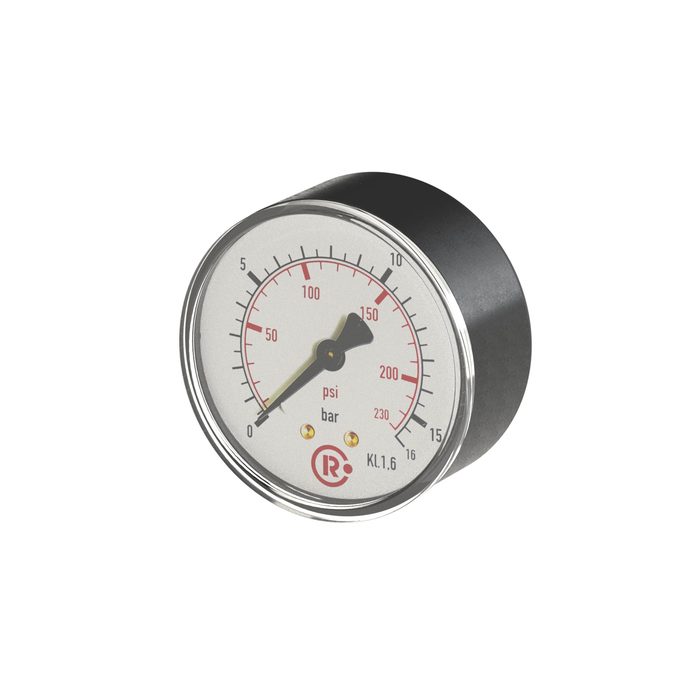

![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=2733aaa)
|
Type number: 217-KD |
6.30 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=fdaeaef)
|
Type number: 655.6.900 |
36.96 € | |

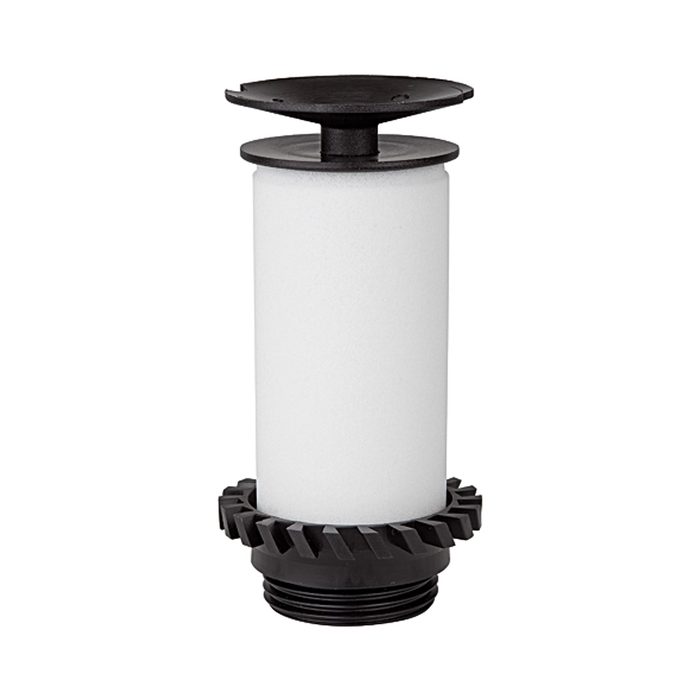

![[100144] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123337/image_128/%5B100144%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=35a1198)
|
Type number: 6141.6.905 |
41.25 € | |

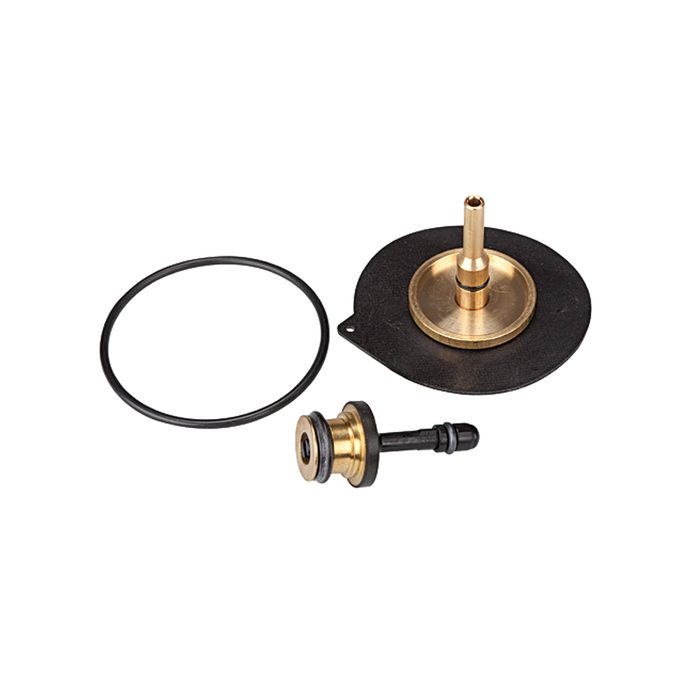

![[100051] Riegler Wear part set for »FUTURA«, size 4, G 3/4 and G 1](/web/image/product.template/118213/image_128/%5B100051%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%204%2C%20G%203-4%20and%20G%201?unique=3adb5ff)
|
Type number: 22.71110.4 |
33.13 € | |
