Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 4, G 1, Semi a.
Type number: FU 6151
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Vorfilter »FUTURA« mit PC-Behälter u. Schutzkorb, 0,3 µm, BG 4, G 1, PE 1,5 - 16 bar, Temp. -10 °C bis 50 °C, Kondensatablass HA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.02 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Impregnated paper |
| Filter fineness | 0.3 µm |
| Thread | G 1 |
| Flow_1 | 1500 l/min |
| Condensate drain | semi-automatic |
| BG | 4 |
| A | 85 mm |
| B | 252 mm |
| C | 63 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| SCIP message number Supplier | 9ecc2aa9-7fea-4cfa-81c9-de731d89a175 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100163] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 1, G 1/4, Fully](/web/image/product.template/123226/image_128/%5B100163%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%20Fully?unique=170ab61)
|
Type number: FU 861 |
151.65 € | |
![[100157] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 1, G 1/4, Semi a.](/web/image/product.template/123220/image_128/%5B100157%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%20Semi%20a.?unique=72111ab)
|
Type number: FU 851 |
106.84 € | |
![[100158] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 1, G 3/8, Semi a.](/web/image/product.template/123221/image_128/%5B100158%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%20Semi%20a.?unique=b51a14d)
|
Type number: FU 852 |
106.84 € | |

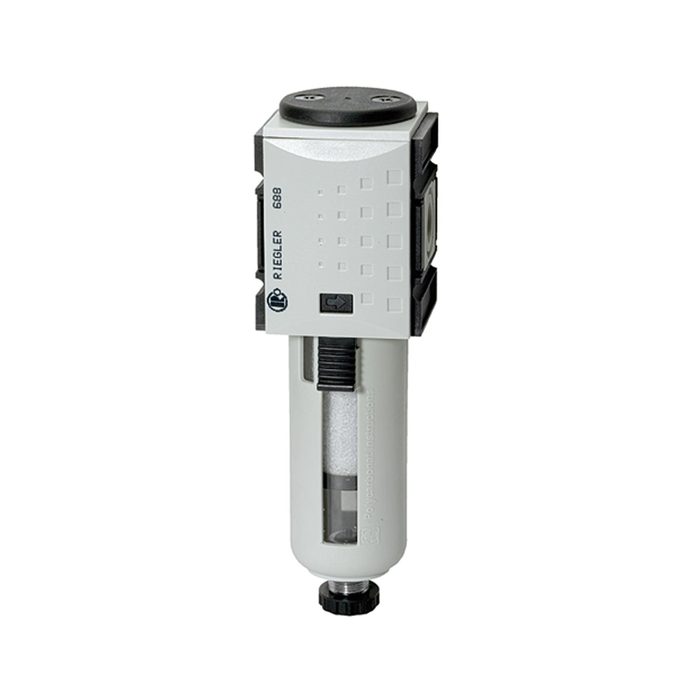

![[100166] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 2, G 1/2, Fully](/web/image/product.template/123229/image_128/%5B100166%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Fully?unique=32aedb2)
|
Type number: FU 864 |
258.50 € | |
![[100160] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 2, G 1/2, Semi a.](/web/image/product.template/123223/image_128/%5B100160%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Semi%20a.?unique=11d39e3)
|
Type number: FU 854 |
200.54 € | |
![[100161] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 4, G 3/4, Semi a.](/web/image/product.template/123224/image_128/%5B100161%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%204%2C%20G%203-4%2C%20Semi%20a.?unique=548ef83)
|
Type number: FU 6150 |
254.28 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100048] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 4](/web/image/product.template/118210/image_128/%5B100048%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=7845aef)
|
Type number: H 854 |
21.59 € | |
![[100049] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 4](/web/image/product.template/118211/image_128/%5B100049%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=0996d29)
|
Type number: WK 103 |
10.28 € | |
![[100050] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 4](/web/image/product.template/118212/image_128/%5B100050%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=2a2a736)
|
Type number: KP 300 |
7.32 € | |
![[100141] Riegler Metal container incl. viewing tube, for »FUTURA«, Size 4](/web/image/product.template/123205/image_128/%5B100141%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=d9a61e3)
|
Type number: MF 34 |
73.08 € | |
![[100171] Riegler Differential pressure display, for pre / microfilter](/web/image/product.template/123232/image_128/%5B100171%5D%20Riegler%20Differential%20pressure%20display%2C%20for%20pre%20-%20microfilter?unique=96cd0b3)
|
Type number: DAF 1 |
29.18 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=8c11846)
|
Type number: 655.6.900 |
36.96 € | |

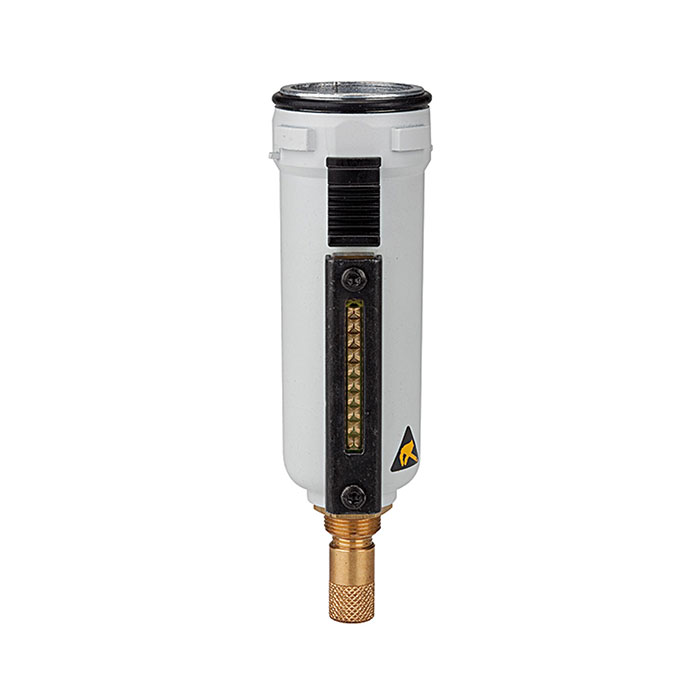

![[123967] RIEGLER Metal container, for »FUTURA«, Size 4, Fully-automatic (NC)](/web/image/product.template/202406/image_128/%5B123967%5D%20RIEGLER%20Metal%20container%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20Fully-automatic%20%28NC%29?unique=dcede03)
|
