Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 1, G 1/4, Semi a.
Type number: FU 851
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Vorfilter »FUTURA« mit PC-Behälter u. Schutzkorb, 0,3 µm, BG 1, G 1/4, PE 1,5 - 16 bar, Temp. -10 °C bis 50 °C, Kondensatablass HA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.02 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Impregnated paper |
| Filter fineness | 0.3 µm |
| Thread | G 1/4 |
| Condensate drain | semi-automatic |
| BG | 1 |
| A | 52 mm |
| B | 169.5 mm |
| C | 39.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 300 l/min |
| SCIP message number Supplier | 4488983b-dd3c-4658-bbb2-3997e01eec32 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100163] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 1, G 1/4, Fully](/web/image/product.template/123226/image_128/%5B100163%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%20Fully?unique=4ffc2a2)
|
Type number: FU 861 |
91.00 € | |
![[100158] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 1, G 3/8, Semi a.](/web/image/product.template/123221/image_128/%5B100158%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%20Semi%20a.?unique=5c60566)
|
Type number: FU 852 |
64.11 € | |

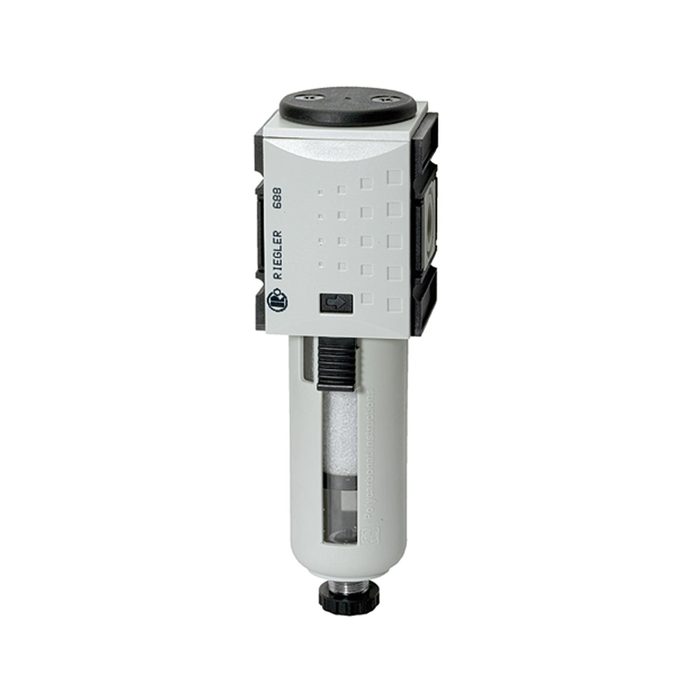

![[100166] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 2, G 1/2, Fully](/web/image/product.template/123229/image_128/%5B100166%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Fully?unique=fdeec54)
|
Type number: FU 864 |
155.09 € | |
![[100160] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 2, G 1/2, Semi a.](/web/image/product.template/123223/image_128/%5B100160%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Semi%20a.?unique=2093946)
|
Type number: FU 854 |
120.32 € | |
![[100162] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 4, G 1, Semi a.](/web/image/product.template/123225/image_128/%5B100162%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%204%2C%20G%201%2C%20Semi%20a.?unique=1c7e9dc)
|
Type number: FU 6151 |
152.57 € | |
![[100161] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 4, G 3/4, Semi a.](/web/image/product.template/123224/image_128/%5B100161%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%204%2C%20G%203-4%2C%20Semi%20a.?unique=db2c9d4)
|
Type number: FU 6150 |
152.57 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100130] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 1, Ablass: HA](/web/image/product.template/123195/image_128/%5B100130%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%201%2C%20Ablass:%20HA?unique=6059626)
|
Type number: BSF 14 |
8.28 € | |
