Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 2, G 1/2, Fully
Type number: FU 864
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Vorfilter »FUTURA« mit PC-Behälter u. Schutzkorb, 0,3 µm, BG 2, G 1/2, PE 1,5 - 16 bar, Temp. -10 °C bis 50 °C, Kondensatablass VA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.02 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Impregnated paper |
| Filter fineness | 0.3 µm |
| Thread | G 1/2 |
| Condensate drain | fully automatic |
| BG | 2 |
| A | 63 mm |
| B | 210.8 mm |
| C | 47.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow_1 | 500 l/min |
| SCIP message number Supplier | 5e01aa12-3772-4d44-8268-65064acce15d |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100163] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 1, G 1/4, Fully](/web/image/product.template/123226/image_128/%5B100163%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%20Fully?unique=170ab61)
|
Type number: FU 861 |
151.65 € | |
![[100157] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 1, G 1/4, Semi a.](/web/image/product.template/123220/image_128/%5B100157%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%20Semi%20a.?unique=72111ab)
|
Type number: FU 851 |
106.84 € | |

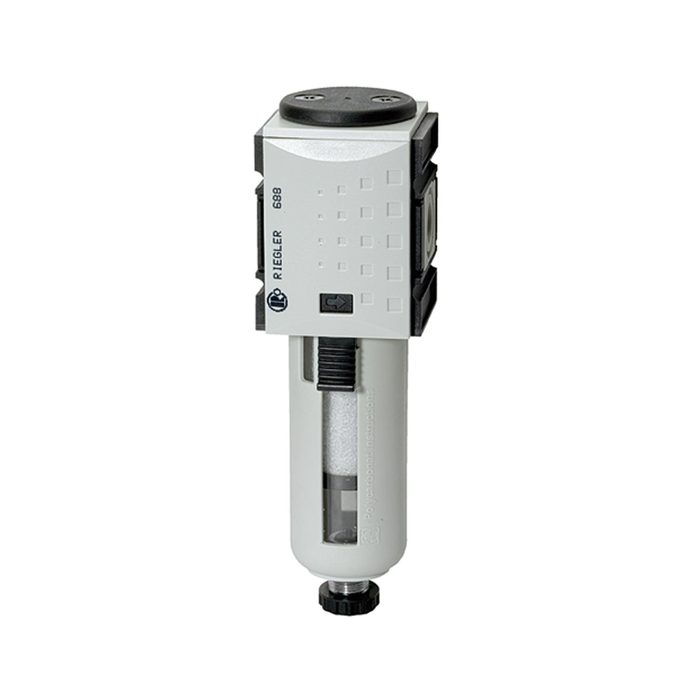

![[100158] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 1, G 3/8, Semi a.](/web/image/product.template/123221/image_128/%5B100158%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%20Semi%20a.?unique=b51a14d)
|
Type number: FU 852 |
106.84 € | |
![[100160] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 2, G 1/2, Semi a.](/web/image/product.template/123223/image_128/%5B100160%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Semi%20a.?unique=11d39e3)
|
Type number: FU 854 |
200.54 € | |
![[100162] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 4, G 1, Semi a.](/web/image/product.template/123225/image_128/%5B100162%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%204%2C%20G%201%2C%20Semi%20a.?unique=98baef6)
|
Type number: FU 6151 |
254.28 € | |
![[100161] Riegler Pre-filter »FUTURA«, PC container, 0.3 µm, Size 4, G 3/4, Semi a.](/web/image/product.template/123224/image_128/%5B100161%5D%20Riegler%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%204%2C%20G%203-4%2C%20Semi%20a.?unique=548ef83)
|
Type number: FU 6150 |
254.28 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100043] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 2](/web/image/product.template/118205/image_128/%5B100043%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=e2c08c8)
|
Type number: H 852 |
17.04 € | |
![[100044] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118206/image_128/%5B100044%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=bd8f247)
|
Type number: WK 102 |
8.53 € | |
![[100045] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118207/image_128/%5B100045%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=5db2875)
|
Type number: KP 200 |
4.31 € | |
![[100135] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 2, Ablass: HA](/web/image/product.template/123200/image_128/%5B100135%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%202%2C%20Ablass:%20HA?unique=ea551ae)
|
Type number: BSF 12 |
17.21 € | |
![[100136] Riegler Metal container incl. viewing tube, for »FUTURA«, Size 2](/web/image/product.template/123201/image_128/%5B100136%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=0aed15b)
|
Type number: MF 12 |
63.82 € | |
![[100171] Riegler Differential pressure display, for pre / microfilter](/web/image/product.template/123232/image_128/%5B100171%5D%20Riegler%20Differential%20pressure%20display%2C%20for%20pre%20-%20microfilter?unique=96cd0b3)
|
Type number: DAF 1 |
29.18 € | |
![[100331] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 2](/web/image/product.template/139765/image_128/%5B100331%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=a247af3)
|
Type number: WK 102-38 |
43.07 € | |
![[100332] RIEGLER Wall console with connection thread G 1/2, for »FUTURA«, Size 2](/web/image/product.template/139766/image_128/%5B100332%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-2%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=a81ed30)
|
Type number: WK 102-12 |
43.07 € | |
![[100333] RIEGLER Wall console with connection thread G 3/4, for »FUTURA«, Size 2](/web/image/product.template/139767/image_128/%5B100333%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=6b14732)
|
Type number: WK 102-34 |
43.07 € | |
![[152961] RIEGLER Automatic bleeder valve, usually closed (NC)](/web/image/product.template/212486/image_128/%5B152961%5D%20RIEGLER%20Automatic%20bleeder%20valve%2C%20usually%20closed%20%28NC%29?unique=10803e2)
|
Typennummer: 655.6.901 |
64.69 € | |

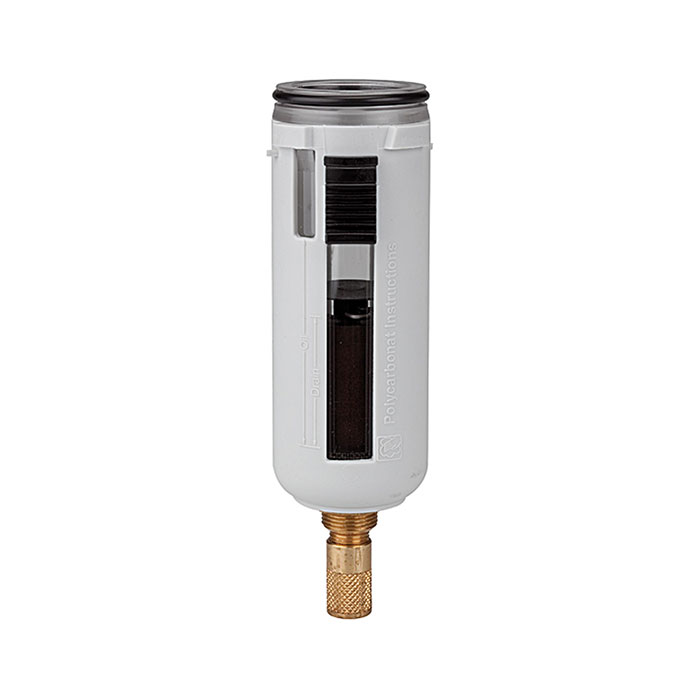

![[156475] RIEGLER Polycarbonate container, »FUTURA«, Size 2, Fully-automatic (NC)](/web/image/product.template/213290/image_128/%5B156475%5D%20RIEGLER%20Polycarbonate%20container%2C%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20Fully-automatic%20%28NC%29?unique=da5eefe)
|
Typennummer: BSF 12-NC-A |
58.13 € | |

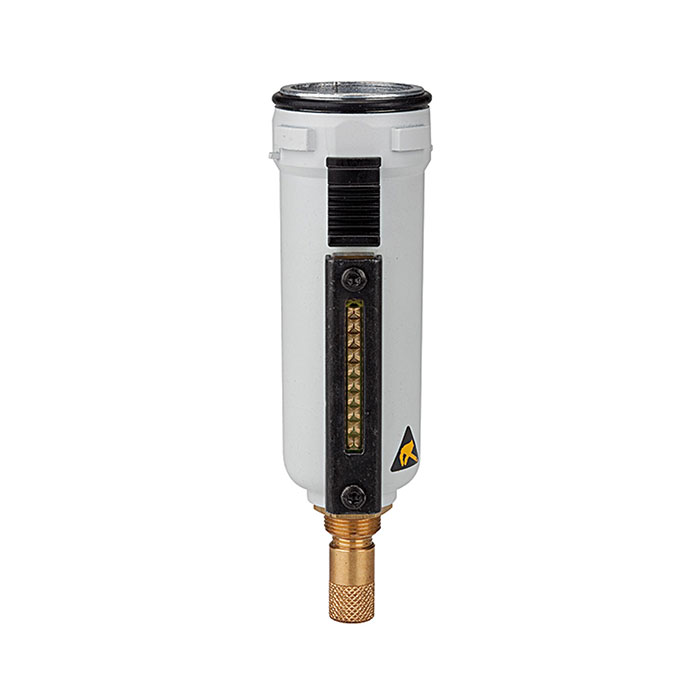

![[156478] RIEGLER Metal container, for »FUTURA«, Size 2, Fully-automatic (NC)](/web/image/product.template/213293/image_128/%5B156478%5D%20RIEGLER%20Metal%20container%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20Fully-automatic%20%28NC%29?unique=2f7d465)
|
Typennummer: MF 12-NC-A |
74.64 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=8c11846)
|
Type number: 655.6.900 |
36.96 € | |

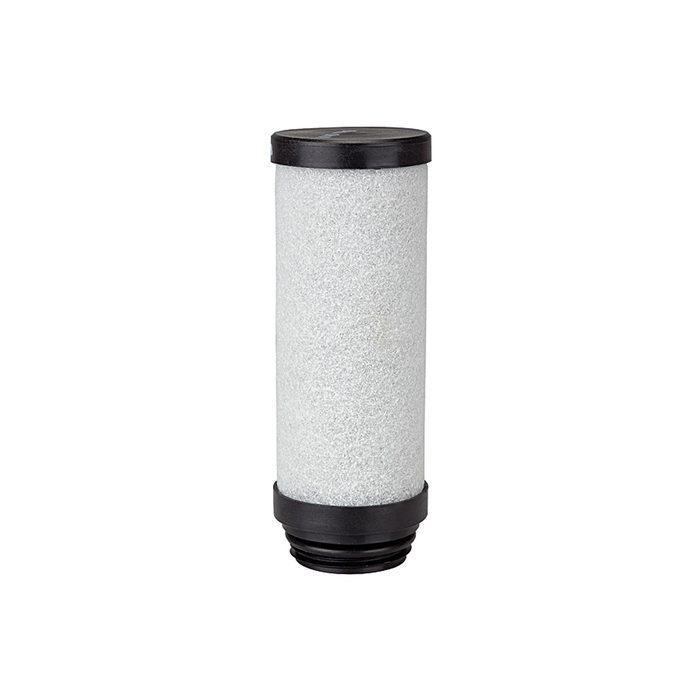

![[100173] Riegler Filter element 0.3 µm, Paper-Aluminium](/web/image/product.template/123322/image_128/%5B100173%5D%20Riegler%20Filter%20element%200.3%20%C2%B5m%2C%20Paper-Aluminium?unique=50ca1af)
|
