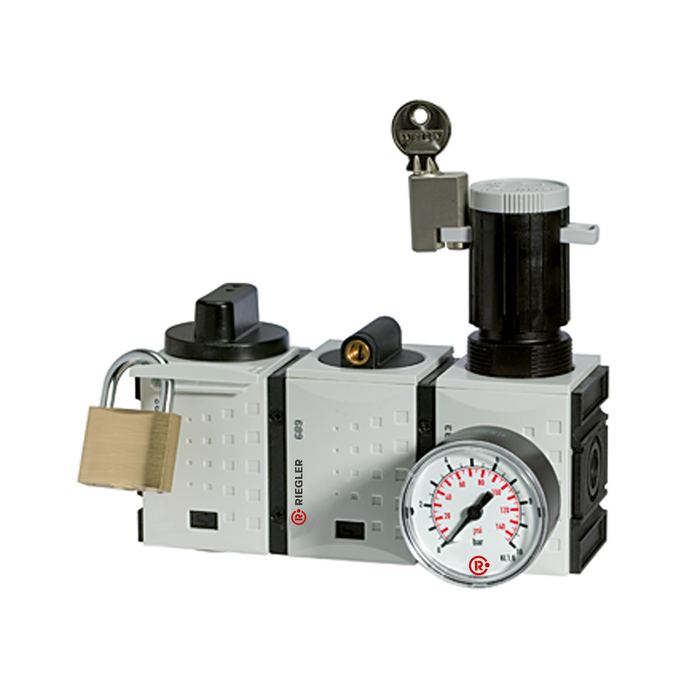

SAFETY FUTURA Maintenance Station, KH-AV-DR, BG 4, G 1, 2.5–8 bar
Model Number: FDT1
EAN: 4047322246255
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER SAFETY "FUTURA" Maintenance Station (Pressure Regulator) made of PA66 GF60, for compressed air treatment – Model FU 1005
The RIEGLER SAFETY “FUTURA” maintenance station, model KH-AV-DR, BG 4, G 1, 2.5–8 bar, maintains a constant working pressure and protects downstream components from pressure fluctuations. The housing is made of PA66 GF60 with NBR seals. The control range extends from 2.5 bar to 8 bar at a maximum inlet pressure of 16 bar. The permissible medium temperature ranges from -10 °C to 50 °C. G 1 connection—compatible with common industrial standards. The flow rate is 10,000 l/min. The filter rating is 5 µm. Suitable for compressed air and neutral gases. Ensures constant pressure conditions even with fluctuating supply.
Scope of Application
Typical applications: FUTURA maintenance devices, maintenance units, FUTURA, and maintenance devices in compressed air and pneumatic systems.
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 1.5 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 1 |
| Flow 1 | 10000 l/min |
| Control range max. | 8 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 4 |
| A | 255 mm |
| B | 191 mm |
| C | 137 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Intrinsic air consumption | Yes |
| Class name | MAX |
| Control range min. | 2.5 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100247] SAFETY FUTURA Maintenance Station, KH-AV-DR, BG 4, G 3/4, 2.5–8 bar](/web/image/product.template/123294/image_128/%5B100247%5D%20SAFETY%20FUTURA%20Maintenance%20Station%2C%20KH-AV-DR%2C%20BG%204%2C%20G%203-4%2C%202.5%E2%80%938%20bar?unique=c7111f6)
|
Part Number: LDGNR2ES4408FDIA EAN: 4047322246248 |
323.86 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100037] Riegler Plug lock for »FUTURA«, made of nickel-plated brass](/web/image/product.template/118199/image_128/%5B100037%5D%20Riegler%20Plug%20lock%20for%20%C2%BBFUTURA%C2%AB%2C%20made%20of%20nickel-plated%20brass?unique=30dd3ec)
|
Type number: SS 32 |
41.76 € | |
![[100048] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 4](/web/image/product.template/118210/image_128/%5B100048%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=e3d55be)
|
Type number: H 854 |
12.30 € | |
![[100049] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 4](/web/image/product.template/118211/image_128/%5B100049%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=1b9b86e)
|
Type number: WK 103 |
5.85 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100050] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 4](/web/image/product.template/118212/image_128/%5B100050%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=a997453)
|
Type number: KP 300 |
4.18 € | |
![[100051] Riegler Wear part set for »FUTURA«, size 4, G 3/4 and G 1](/web/image/product.template/118213/image_128/%5B100051%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%204%2C%20G%203-4%20and%20G%201?unique=aa194f1)
|
Type number: 22.71110.4 |
18.89 € | |
