Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8
Type number: FU 1101
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Wartungsstation SAFETY »FUTURA«, Kugelhahn-Anfahrventil-Filterregler, HA, BG 1, G 3/8, PE 2,5 - 16 bar, Regelbereich 2,5 - 8 bar
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 3/8 |
| Control range max. | 8 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 156 mm |
| B | 226 mm |
| C | 96 mm |

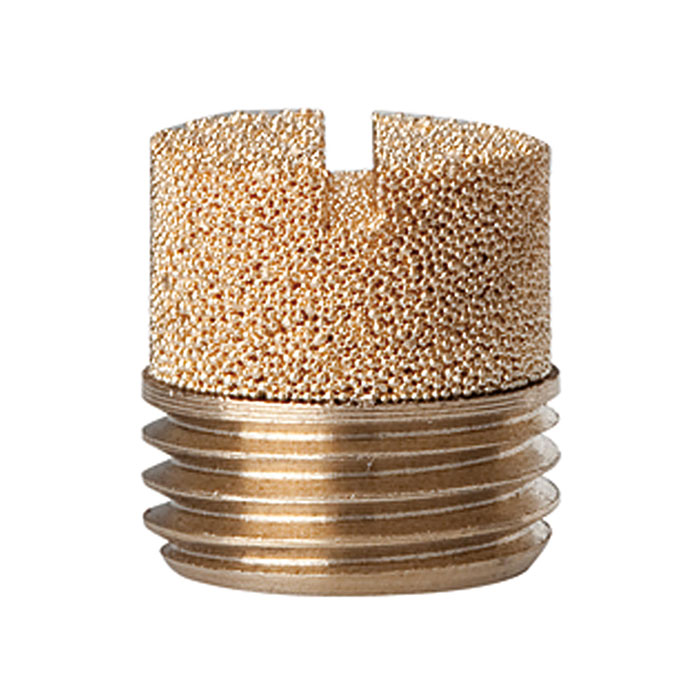

| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Class name | MAX |
| Flow 1 | 1900 l/min |
| Control range min. | 2.5 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100249] Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4](/web/image/product.template/123296/image_128/%5B100249%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=e3f88bc)
|
Type number: FU 1100 |
121.30 € | |
![[100255] Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4](/web/image/product.template/123302/image_128/%5B100255%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=ce19c70)
|
Type number: FU 1200 |
155.65 € | |
![[100256] Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8](/web/image/product.template/123303/image_128/%5B100256%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8?unique=6c78e62)
|
Type number: FU 1201 |
155.65 € | |
![[100252] Riegler Service station SAFETY »FUTURA«, Size 2, G 1/2](/web/image/product.template/123299/image_128/%5B100252%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2?unique=b874504)
|
Type number: FU 1103 |
176.41 € | |
![[100258] Riegler Service station SAFETY »FUTURA«, Size 2, G 1/2](/web/image/product.template/123305/image_128/%5B100258%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2?unique=0cb3c51)
|
Type number: FU 1203 |
210.93 € | |
![[100257] Riegler Service station SAFETY »FUTURA«, Size 2, G 3/8](/web/image/product.template/123304/image_128/%5B100257%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8?unique=67d8434)
|
Type number: FU 1202 |
210.93 € | |
![[100251] Riegler Service station SAFETY »FUTURA«, Size 2, G 3/8](/web/image/product.template/123298/image_128/%5B100251%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8?unique=f23fc28)
|
Type number: FU 1102 |
176.41 € | |
![[100253] Riegler Service station SAFETY »FUTURA«, Size 4, G 3/4](/web/image/product.template/123300/image_128/%5B100253%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4?unique=2ace8e8)
|
Type number: FU 1104 |
423.45 € | |
![[100259] Riegler Service station SAFETY »FUTURA«, Size 4, G 3/4](/web/image/product.template/123306/image_128/%5B100259%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4?unique=8748390)
|
Type number: FU 1204 |
463.68 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100040] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118202/image_128/%5B100040%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=208ff37)
|
Type number: KP 100 |
2.05 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=25a1ab9)
|
Type number: 611.6.905 |
9.46 € | |
![[100130] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 1, Ablass: HA](/web/image/product.template/123195/image_128/%5B100130%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%201%2C%20Ablass:%20HA?unique=8faa20a)
|
Type number: BSF 14 |
8.28 € | |
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=3b4e24f)
|
Type number: 206-KD |
6.25 € | |
![[100042] Riegler Wear part set for »FUTURA«, size 1, G 1/4 and G 3/8](/web/image/product.template/118204/image_128/%5B100042%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%201%2C%20G%201-4%20and%20G%203-8?unique=9a5566d)
|
Type number: 22.7010.4 |
7.76 € | |
