Riegler Service station SAFETY »FUTURA«, Size 2, G 3/8
Type number: FU 1202
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Wartungsstation SAFETY »FUTURA«, Kugelhahn-Anfahrventil-Filterregler, VA, BG 2, G 3/8, PE 2,5 - 16 bar, Regelbereich 2,5 - 8 bar
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 3/8 |
| Control range max. | 8 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 189 mm |
| B | 273 mm |
| C | 110 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Class name | MAX |
| Flow_1 | 4500 l/min |
| Control range min. | 2.5 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100255] Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4](/web/image/product.template/123302/image_128/%5B100255%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=bf562ea)
|
Type number: FU 1200 |
155.65 € | |
![[100249] Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4](/web/image/product.template/123296/image_128/%5B100249%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=e5727e6)
|
Type number: FU 1100 |
121.30 € | |
![[100250] Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8](/web/image/product.template/123297/image_128/%5B100250%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8?unique=5b01b91)
|
Type number: FU 1101 |
121.30 € | |
![[100256] Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8](/web/image/product.template/123303/image_128/%5B100256%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8?unique=3ca9a7b)
|
Type number: FU 1201 |
155.65 € | |
![[100252] Riegler Service station SAFETY »FUTURA«, Size 2, G 1/2](/web/image/product.template/123299/image_128/%5B100252%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2?unique=b28e18c)
|
Type number: FU 1103 |
176.41 € | |
![[100258] Riegler Service station SAFETY »FUTURA«, Size 2, G 1/2](/web/image/product.template/123305/image_128/%5B100258%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2?unique=1f8610c)
|
Type number: FU 1203 |
210.93 € | |

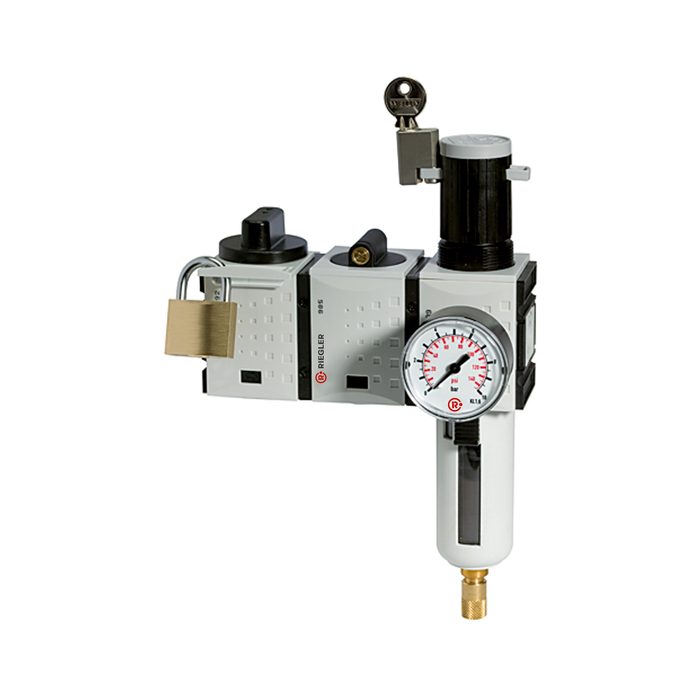

![[100251] Riegler Service station SAFETY »FUTURA«, Size 2, G 3/8](/web/image/product.template/123298/image_128/%5B100251%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8?unique=f1b13c3)
|
