Riegler Service station SAFETY »FUTURA«, Size 4, G 3/4
Type number: FU 1204
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER SAFETY "FUTURA" maintenance station made of PA66 GF60, for compressed air treatment, 2.5 bar - type FU 1204
The RIEGLER SAFETY "FUTURA" maintenance station, KH-AV-FR, VA, BG 4, G 3/4, 2.5-8 combines a compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of PA66 GF60 with NBR seals. The control range extends from 2.5 bar to 8 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 3/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. Filter fineness 5 µm. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 1.5 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 3/4 |
| Flow 1 | 10000 l/min |
| Control range max. | 8 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 4 |
| A | 255 mm |
| B | 343 mm |
| C | 137 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Intrinsic air consumption | Yes |
| Class name | MAX |
| Control range min. | 2.5 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100255] Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4](/web/image/product.template/123302/image_128/%5B100255%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=dd544a4)
|
Type number: FU 1200 |
155.65 € | |
![[100249] Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4](/web/image/product.template/123296/image_128/%5B100249%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=feef4f1)
|
Type number: FU 1100 |
121.30 € | |
![[100256] Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8](/web/image/product.template/123303/image_128/%5B100256%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8?unique=0f3ce4b)
|
Type number: FU 1201 |
155.65 € | |
![[100250] Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8](/web/image/product.template/123297/image_128/%5B100250%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8?unique=cc2f60a)
|
Type number: FU 1101 |
121.30 € | |
![[100258] Riegler Service station SAFETY »FUTURA«, Size 2, G 1/2](/web/image/product.template/123305/image_128/%5B100258%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2?unique=389c4e5)
|
Type number: FU 1203 |
210.93 € | |
![[100252] Riegler Service station SAFETY »FUTURA«, Size 2, G 1/2](/web/image/product.template/123299/image_128/%5B100252%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2?unique=1d64d5a)
|
Type number: FU 1103 |
176.41 € | |
![[100257] Riegler Service station SAFETY »FUTURA«, Size 2, G 3/8](/web/image/product.template/123304/image_128/%5B100257%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8?unique=83bed73)
|
Type number: FU 1202 |
210.93 € | |

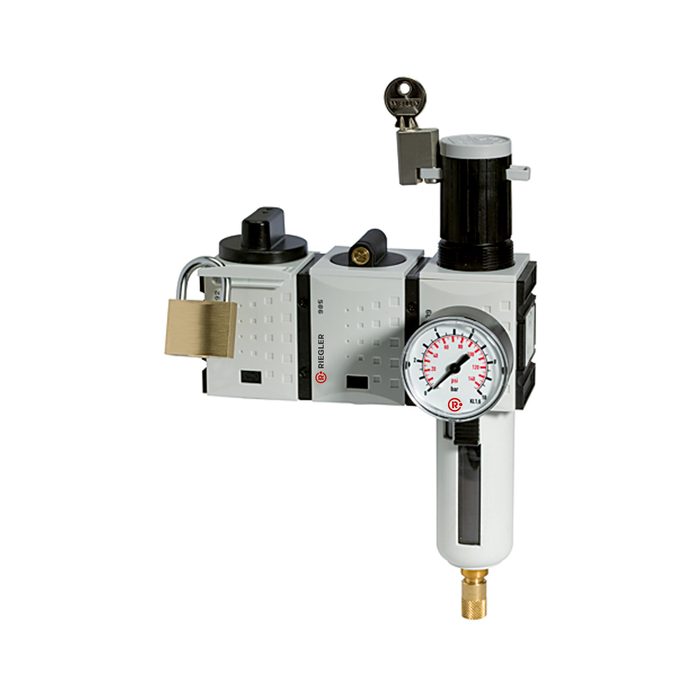

![[100251] Riegler Service station SAFETY »FUTURA«, Size 2, G 3/8](/web/image/product.template/123298/image_128/%5B100251%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8?unique=f84bbec)
|
