RIEGLER Filter regulator »multifix-mini«, Metal container, G 1/8, 0.5-10
Type number: C 05 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator "multifix-mini" with metal bowl and mano., 5 µm, BG 0, G 1/8, PE max. 16 bar, control range 0.5 - 10 bar, drain HA
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix-mini |
| Container | Metal container |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/8 |
| Flow rate | 1450 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 5 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 0 |
| A | 40 mm |
| B | 162 mm |
| C | 63 mm |
| D | 99 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

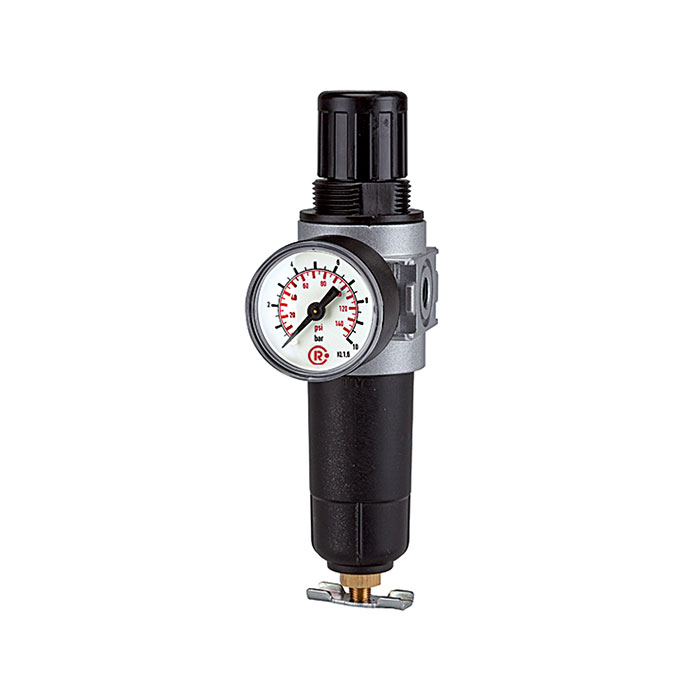

![[100356] RIEGLER Filter regulator »multifix-mini«, Metal container, G 1/4, 0.5-10](/web/image/product.template/139790/image_128/%5B100356%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix-mini%C2%AB%2C%20Metal%20container%2C%20G%201-4%2C%200.5-10?unique=6b9cd34)
|
