RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 1/4, 0.1 - 3 bar
Type number: C 11-K 3-HA
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator »multifix«, PC container, press. gauge, 5 µm, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.1-3 bar
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/4 |
| Flow rate | 1600 l/min |
| Control range min. | 0.1 bar |
| Control range max. | 3 bar |
| Condensate drain | semi-automatic |
| DN | 6 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 4 bar |
| BG | 1 |
| A | 47.8 mm |
| B | 192.1 mm |
| C | 67 mm |
| D | 125.1 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100470] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/139904/image_128/%5B100470%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=9cae6eb)
|
Type number: C 11-K 10-HA |
52.32 € | |
![[100474] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/139909/image_128/%5B100474%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=a319b77)
|
Type number: C 12-K 10-HA |
51.46 € | |
![[100478] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 1/2, 0.5 - 10 bar](/web/image/product.template/139913/image_128/%5B100478%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=ec56407)
|
Type number: C 33-K 10-HA |
80.43 € | |

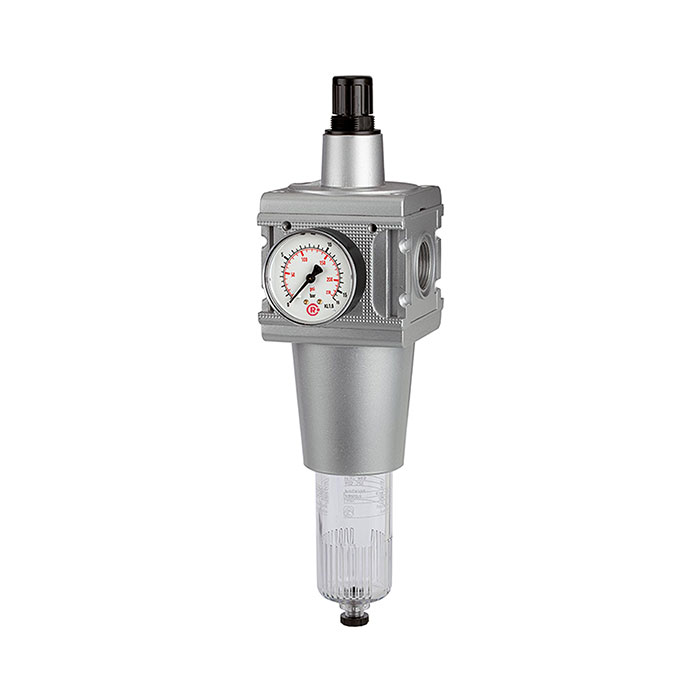

![[100484] RIEGLER Filter regulator »multifix«, 40 µm, Size 5, G 1, 0.1 - 3 bar](/web/image/product.template/139919/image_128/%5B100484%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%2040%20%C2%B5m%2C%20Size%205%2C%20G%201%2C%200.1%20-%203%20bar?unique=e7a083f)
|
Type number: C 55-K 3-HA |
248.83 € | |
![[100485] RIEGLER Filter regulator »multifix«, 40 µm, Size 5, G 1, 0.2 - 6 bar](/web/image/product.template/139920/image_128/%5B100485%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%2040%20%C2%B5m%2C%20Size%205%2C%20G%201%2C%200.2%20-%206%20bar?unique=3db724b)
|
Type number: C 55-K 6-HA |
248.83 € | |
![[100486] RIEGLER Filter regulator »multifix«, 40 µm, Size 5, G 1, 0.5 - 10 bar](/web/image/product.template/139921/image_128/%5B100486%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%2040%20%C2%B5m%2C%20Size%205%2C%20G%201%2C%200.5%20-%2010%20bar?unique=7b102cd)
|
Type number: C 55-K 10-HA |
248.83 € | |
![[100487] RIEGLER Filter regulator »multifix«, 40 µm, Size 5, G 1, 0.5 - 16 bar](/web/image/product.template/139922/image_128/%5B100487%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%2040%20%C2%B5m%2C%20Size%205%2C%20G%201%2C%200.5%20-%2016%20bar?unique=378ac21)
|
Type number: C 55-K 16-HA |
248.83 € | |
![[100469] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 1/4, 0.2 - 6 bar](/web/image/product.template/139903/image_128/%5B100469%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%200.2%20-%206%20bar?unique=b659f16)
|
Type number: C 11-K 6-HA |
52.32 € | |
![[100471] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/139906/image_128/%5B100471%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=62c7ffe)
|
Type number: C 11-K 16-HA |
52.32 € | |
![[100472] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 3/8, 0.1 - 3 bar](/web/image/product.template/139907/image_128/%5B100472%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%200.1%20-%203%20bar?unique=f54e6e6)
|
Type number: C 12-K 3-HA |
52.32 € | |
![[100473] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 3/8, 0.2 - 6 bar](/web/image/product.template/139908/image_128/%5B100473%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%200.2%20-%206%20bar?unique=e9e2c5a)
|
Type number: C 12-K 6-HA |
52.32 € | |
![[100475] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/139910/image_128/%5B100475%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=da4011e)
|
Type number: C 12-K 16-HA |
52.32 € | |
![[100476] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 1/2, 0.1 - 3 bar](/web/image/product.template/139911/image_128/%5B100476%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2%2C%200.1%20-%203%20bar?unique=d80535d)
|
Type number: C 33-K 3-HA |
80.43 € | |
![[100477] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 1/2, 0.2 - 6 bar](/web/image/product.template/139912/image_128/%5B100477%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2%2C%200.2%20-%206%20bar?unique=d2845f2)
|
Type number: C 33-K 6-HA |
80.43 € | |
![[100479] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 1/2, 0.5 - 16 bar](/web/image/product.template/139914/image_128/%5B100479%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=7a9f62b)
|
Type number: C 33-K 16-HA |
83.11 € | |

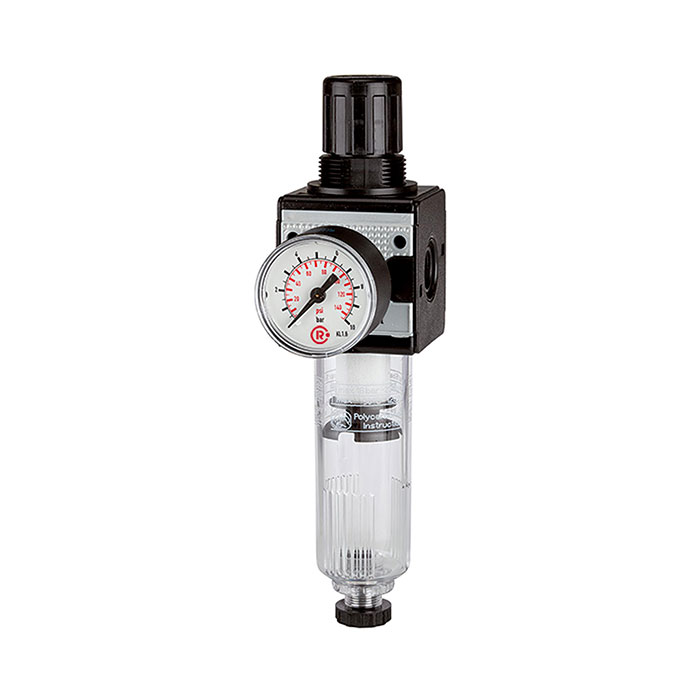

![[100480] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 3/4, 0.1 - 3 bar](/web/image/product.template/139915/image_128/%5B100480%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%203-4%2C%200.1%20-%203%20bar?unique=f30ff08)
|
Type number: C 34-K 3-HA |
80.43 € | |
![[100481] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 3/4, 0.2 - 6 bar](/web/image/product.template/139916/image_128/%5B100481%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%203-4%2C%200.2%20-%206%20bar?unique=95e1b62)
|
Type number: C 34-K 6-HA |
80.43 € | |
![[100482] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 3/4, 0.5 - 10 bar](/web/image/product.template/139917/image_128/%5B100482%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=0098d06)
|
Type number: C 34-K 10-HA |
80.43 € | |
![[100483] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 3/4, 0.5 - 16 bar](/web/image/product.template/139918/image_128/%5B100483%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=9406ff7)
|
Type number: C 34-K 16-HA |
80.43 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100344] RIEGLER Mounting bracket with nut M30x1.5](/web/image/product.template/139778/image_128/%5B100344%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M30x1.5?unique=7d826fb)
|
Type number: MV 30 |
5.11 € | |
![[100345] RIEGLER Control panel nut M30x1.5, for »multifix-mini« and »multifix«](/web/image/product.template/139779/image_128/%5B100345%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBmultifix-mini%C2%AB%20and%20%C2%BBmultifix%C2%AB?unique=3e876e2)
|
Type number: R 11-55 |
1.64 € | |
![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=d7591a3)
|
Type number: KS 11 F-A |
43.65 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=fdaeaef)
|
Type number: 655.6.900 |
36.96 € | |
![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=5ba636d)
|
Type number: ZW 11 |
3.63 € | |
![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=0c53d56)
|
Type number: KP 11 |
2.00 € | |
![[100498] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139933/image_128/%5B100498%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=ba838e7)
|
Type number: MS 11 FS |
27.48 € | |
![[100499] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139934/image_128/%5B100499%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=b6f40a7)
|
Type number: MS 11 FS-A |
62.71 € | |
![[100501] RIEGLER Protective cage, for »multifix«, Size 1, G 1/4 and G 3/8](/web/image/product.template/139936/image_128/%5B100501%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=51fef31)
|
Type number: SK 11 |
9.51 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=7c1e2e9)
|
Type number: 611.6.905 |
13.14 € | |
![[100500] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139935/image_128/%5B100500%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=aead516)
|
Type number: KS 11 F-HA |
13.16 € | |

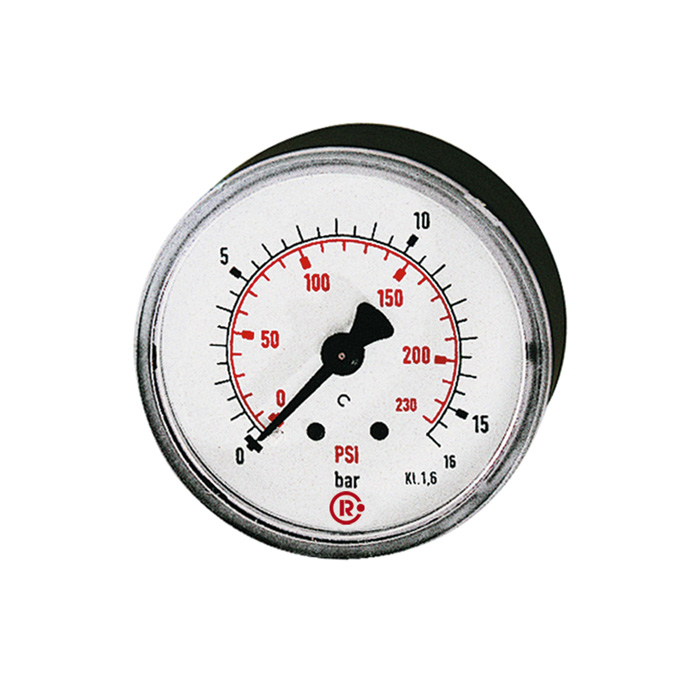

![[116892] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 4.0 bar/58 psi, Ø 40](/web/image/product.template/274703/image_128/%5B116892%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%204.0%20bar-58%20psi%2C%20%C3%98%2040?unique=e9a256a)
|
