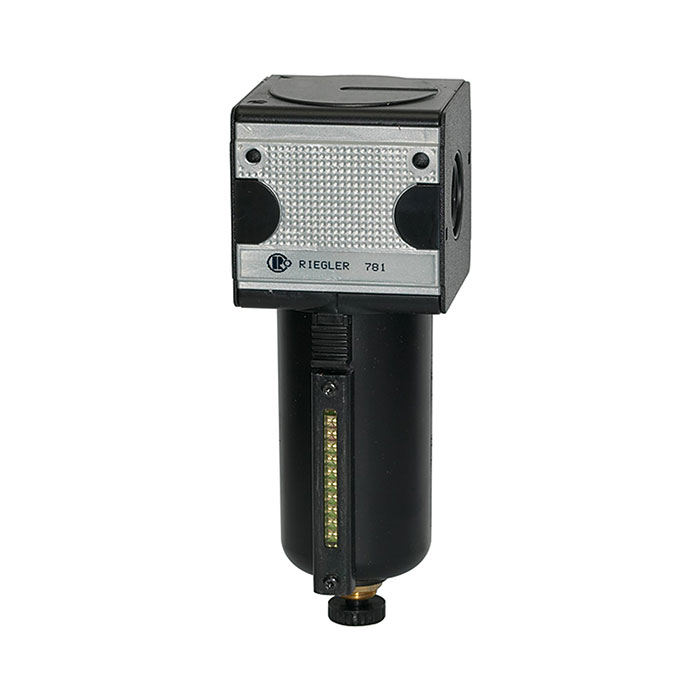

RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 1, G 3/8
Type number: F 12 M-SR
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter "multifix", metal bowl and sight tube, 5 µm, BG 1, G 3/8, PE max. 20 bar, max. ambient temp. 60 °C, drain valve: HA
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Flow rate measurement | with P<sub>1 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/8 |
| Flow rate | 2000 l/min |
| Condensate drain | semi-automatic |
| DN | 10 |
| BG | 1 |
| A | 47.8 mm |
| B | 152.5 mm |
| C | 27 mm |
| D | 125.5 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100522] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 1, G 1/4](/web/image/product.template/139957/image_128/%5B100522%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%201%2C%20G%201-4?unique=528b6f7)
|
Type number: F 11 M-SR |
44.17 € | |
![[100524] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 3, G 1/2](/web/image/product.template/139959/image_128/%5B100524%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%203%2C%20G%201-2?unique=3c9a0ed)
|
Type number: F 33 M-SR |
60.26 € | |
![[100525] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 3, G 3/4](/web/image/product.template/139960/image_128/%5B100525%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%203%2C%20G%203-4?unique=eac11fc)
|
Type number: F 34 M-SR |
60.26 € | |
![[133114] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 4, G 1](/web/image/product.template/202764/image_128/%5B133114%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%204%2C%20G%201?unique=3cd8577)
|
Type number: F 45 M-SR |
149.37 € | |
![[133113] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 4, G 3/4](/web/image/product.template/202763/image_128/%5B133113%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%204%2C%20G%203-4?unique=5a668f9)
|
Type number: F 44 M-SR |
149.37 € | |

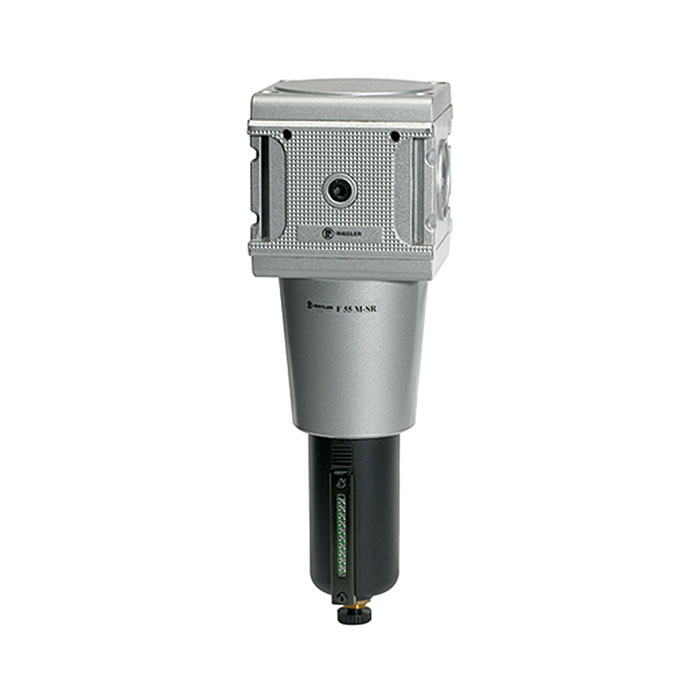

![[100526] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 5, G 1](/web/image/product.template/139961/image_128/%5B100526%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%205%2C%20G%201?unique=548f4b3)
|
Type number: F 55 M-SR |
153.14 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=7d09600)
|
Type number: KS 11 F-A |
43.65 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=7114555)
|
Type number: 655.6.900 |
36.96 € | |
![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=16fb606)
|
Type number: ZW 11 |
3.63 € | |
![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=562cc09)
|
Type number: KP 11 |
2.00 € | |
![[100499] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139934/image_128/%5B100499%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=83e1a7a)
|
Type number: MS 11 FS-A |
62.71 € | |
![[100500] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139935/image_128/%5B100500%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=ccba17d)
|
Type number: KS 11 F-HA |
13.16 € | |
![[100501] RIEGLER Protective cage, for »multifix«, Size 1, G 1/4 and G 3/8](/web/image/product.template/139936/image_128/%5B100501%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=de75415)
|
Type number: SK 11 |
9.51 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100498] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139933/image_128/%5B100498%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=6b2dff6)
|
Type number: MS 11 FS |
27.48 € | |
