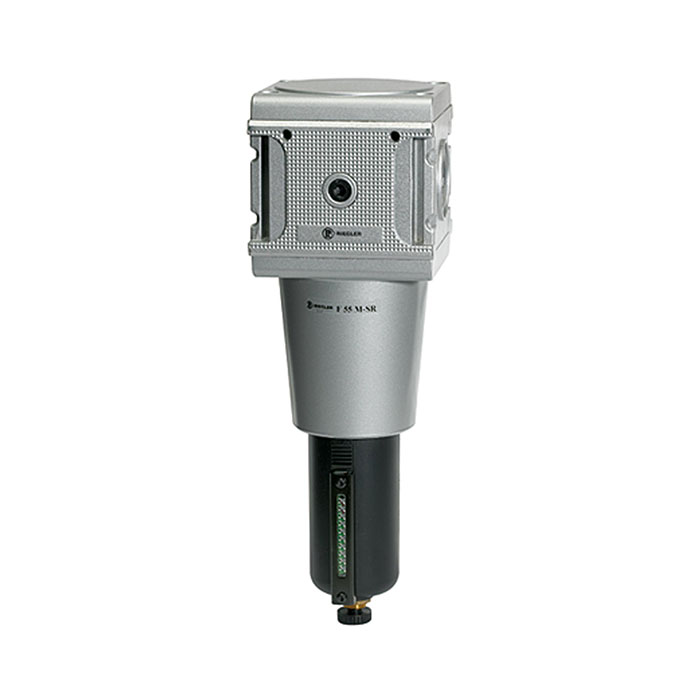

RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 5, G 1
Type number: F 55 M-SR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter "multifix" made of aluminum, for compressed air treatment, G 1 - type F 55 M-SR
The RIEGLER "multifix" filter, metal container and sight tube, 40 µm, BG 5, G 1, HA removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum. The maximum inlet pressure is 20 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 10500 l/min (at P1= 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, container made of metal container with sight tube. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 20 bar |
| Housing | Aluminum |
| Flow rate measurement | with P<sub>1 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 |
| Flow rate | 10500 l/min |
| Condensate drain | semi-automatic |
| DN | 25 |
| BG | 5 |
| A | 100 mm |
| B | 307.7 mm |
| C | 52 mm |
| D | 255.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

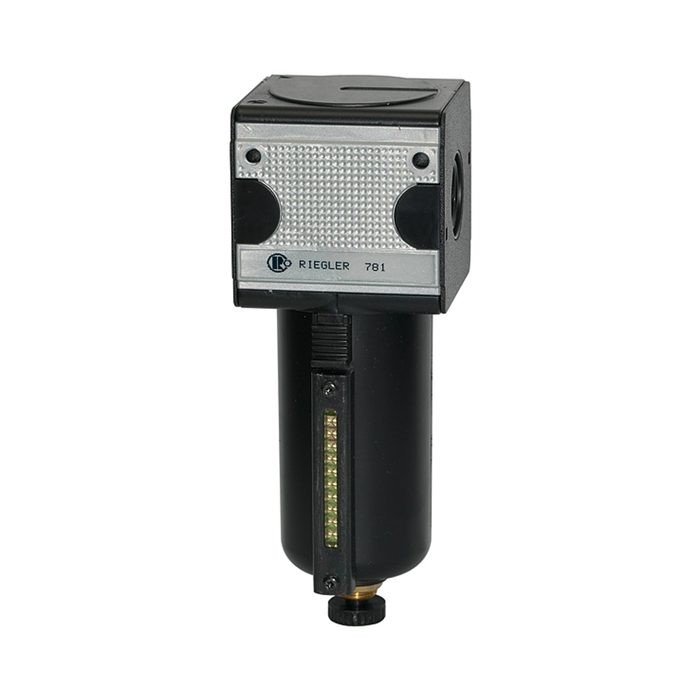

![[100522] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 1, G 1/4](/web/image/product.template/139957/image_128/%5B100522%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%201%2C%20G%201-4?unique=7440c82)
|
Type number: F 11 M-SR |
44.17 € | |
![[100523] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 1, G 3/8](/web/image/product.template/139958/image_128/%5B100523%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%201%2C%20G%203-8?unique=ebaf881)
|
Type number: F 12 M-SR |
44.17 € | |
![[100524] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 3, G 1/2](/web/image/product.template/139959/image_128/%5B100524%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%203%2C%20G%201-2?unique=8806643)
|
Type number: F 33 M-SR |
59.27 € | |
![[100525] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 3, G 3/4](/web/image/product.template/139960/image_128/%5B100525%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%203%2C%20G%203-4?unique=8c2dfe1)
|
Type number: F 34 M-SR |
59.27 € | |

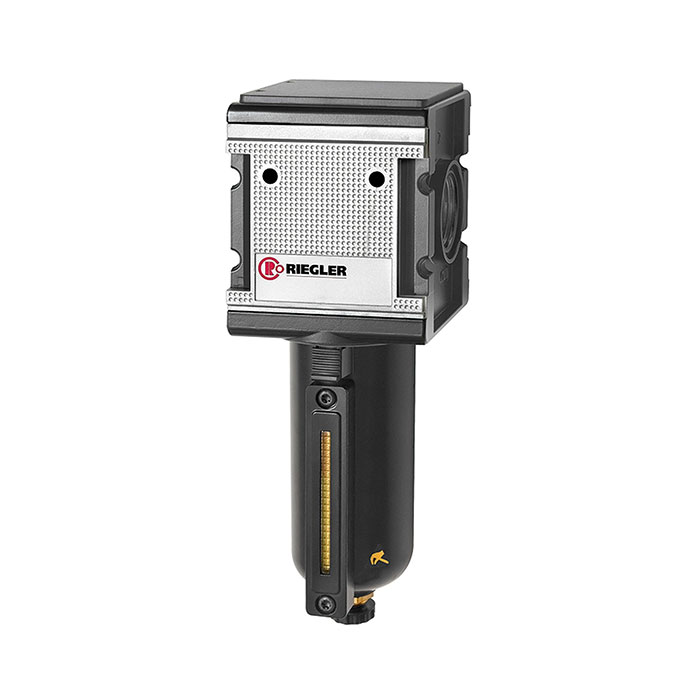

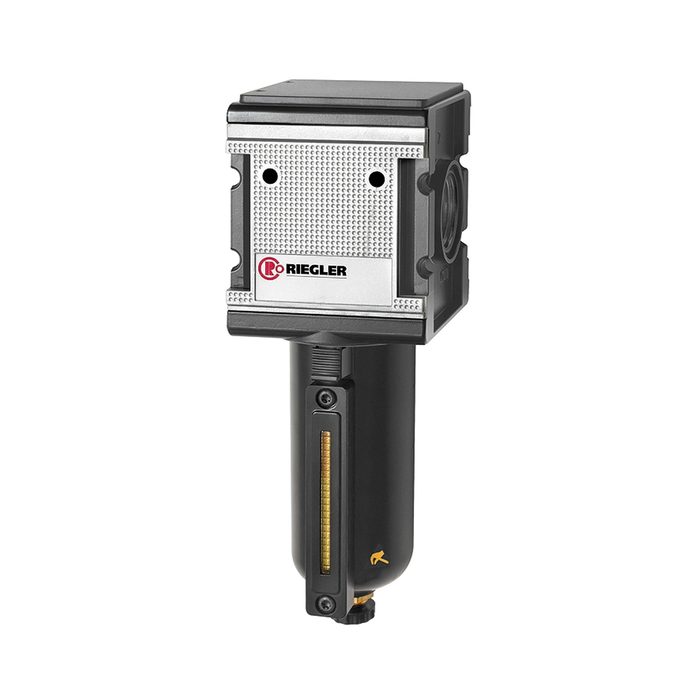

![[133114] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 4, G 1](/web/image/product.template/202764/image_128/%5B133114%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%204%2C%20G%201?unique=917d92e)
|
Type number: F 45 M-SR |
146.93 € | |
![[133113] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 4, G 3/4](/web/image/product.template/202763/image_128/%5B133113%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%204%2C%20G%203-4?unique=3e1940e)
|
Type number: F 44 M-SR |
146.93 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=16b9c4b)
|
Type number: 655.6.900 |
36.35 € | |

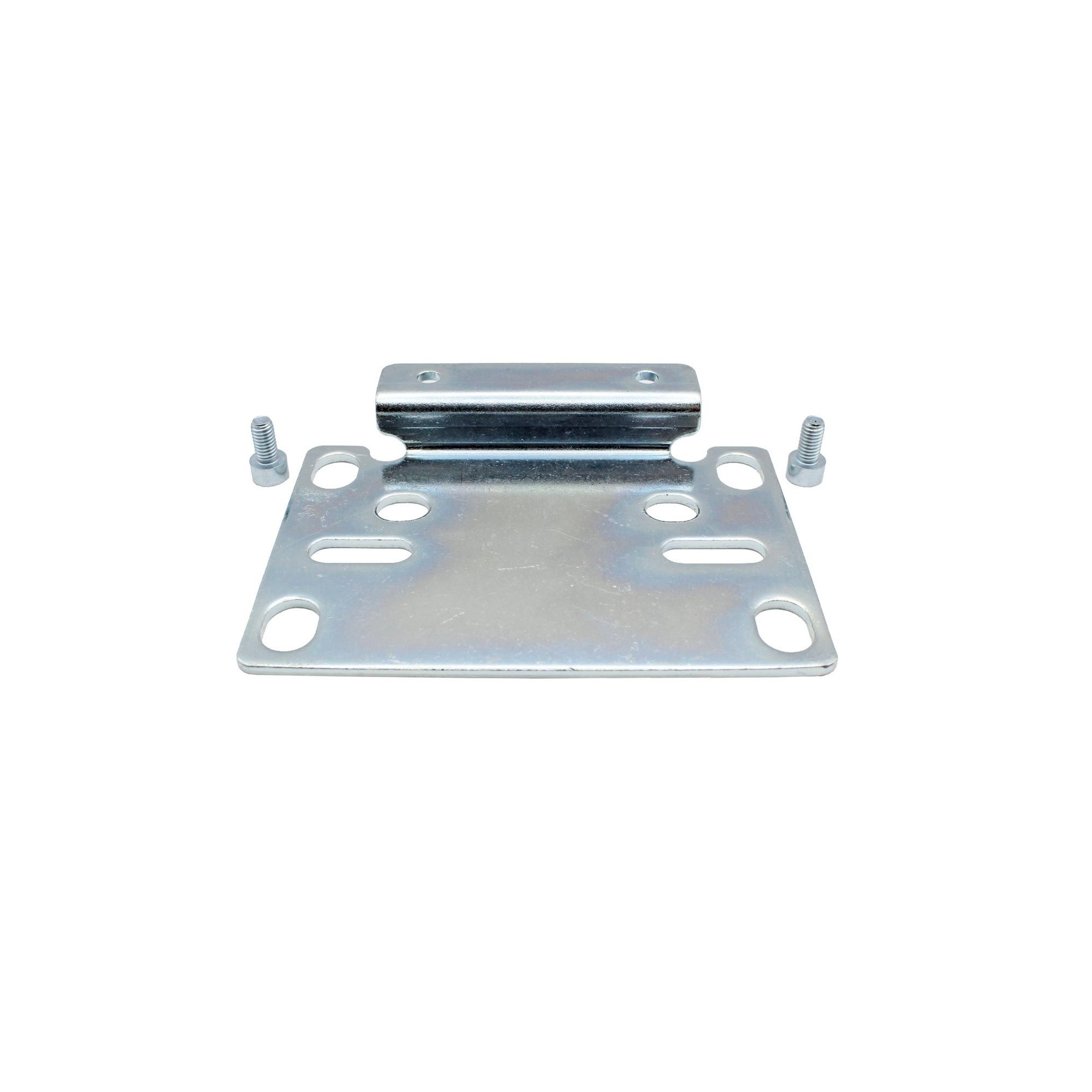

![[100445] RIEGLER Mounting bracket with 2 screws, for »multifix«, Size 5, G 1](/web/image/product.template/139879/image_128/%5B100445%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%205%2C%20G%201?unique=4656d49)
|
Type number: ZW 55 |
13.53 € | |
![[100446] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139880/image_128/%5B100446%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=7008c1b)
|
Type number: KP 55 |
7.39 € | |
![[100503] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139938/image_128/%5B100503%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=655c871)
|
Type number: MS 33 FS-A |
74.97 € | |

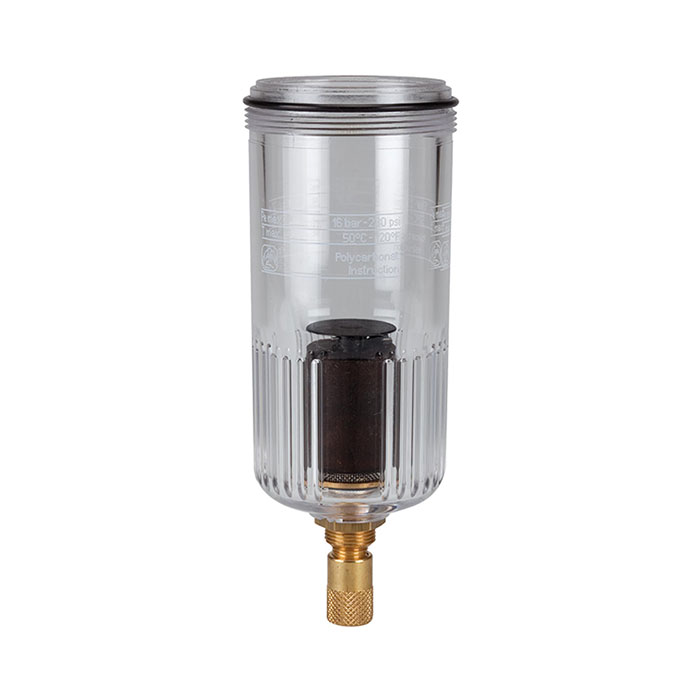

![[100505] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139940/image_128/%5B100505%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=791c028)
|
