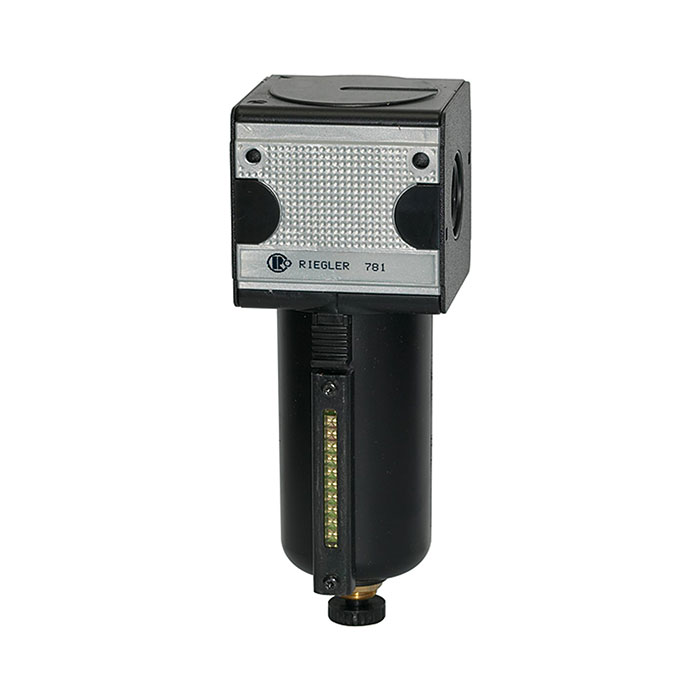

RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 3, G 3/4
Type number: F 34 M-SR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Filter "multifix", metal bowl and sight tube, 5 µm, BG 3, G 3/4, PE max. 20 bar, max. ambient temp. 60 °C, drain valve: HA
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Flow rate measurement | with P<sub>1 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/4 |
| Flow rate | 5850 l/min |
| Condensate drain | semi-automatic |
| DN | 20 |
| BG | 3 |
| A | 68.8 mm |
| B | 183.7 mm |
| C | 34.5 mm |
| D | 149.2 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100522] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 1, G 1/4](/web/image/product.template/139957/image_128/%5B100522%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%201%2C%20G%201-4?unique=8c52993)
|
Type number: F 11 M-SR |
44.17 € | |
![[100523] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 1, G 3/8](/web/image/product.template/139958/image_128/%5B100523%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%201%2C%20G%203-8?unique=af8fa0c)
|
Type number: F 12 M-SR |
44.17 € | |
![[100524] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 3, G 1/2](/web/image/product.template/139959/image_128/%5B100524%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%203%2C%20G%201-2?unique=b081221)
|
Type number: F 33 M-SR |
59.27 € | |
![[133114] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 4, G 1](/web/image/product.template/202764/image_128/%5B133114%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%204%2C%20G%201?unique=d25760c)
|
Type number: F 45 M-SR |
146.93 € | |
![[133113] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 4, G 3/4](/web/image/product.template/202763/image_128/%5B133113%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%204%2C%20G%203-4?unique=2c93ca0)
|
Type number: F 44 M-SR |
146.93 € | |
![[100526] RIEGLER Filter »multifix«, Metal container, Viewing tube, Size 5, G 1](/web/image/product.template/139961/image_128/%5B100526%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%205%2C%20G%201?unique=37000d8)
|
Type number: F 55 M-SR |
153.14 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=ce1aa1d)
|
Type number: 655.6.900 |
36.35 € | |
![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=194680a)
|
Type number: ZW 33 |
5.00 € | |
![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=84fafc3)
|
Type number: KP 33 |
2.01 € | |
![[100503] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139938/image_128/%5B100503%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=f8f6dc2)
|
Type number: MS 33 FS-A |
74.97 € | |
![[100504] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139939/image_128/%5B100504%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=1bad186)
|
Type number: KS 33 F-HA |
14.14 € | |
![[100505] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139940/image_128/%5B100505%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=067e3ec)
|
Type number: KS 33 F-A |
45.98 € | |
![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=9c21620)
|
Type number: SK 33 |
10.91 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=09e1da4)
|
Type number: 633.6.905 |
13.89 € | |
![[100502] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139937/image_128/%5B100502%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=e0ddc1c)
|
Type number: MS 33 FS |
34.69 € | |
