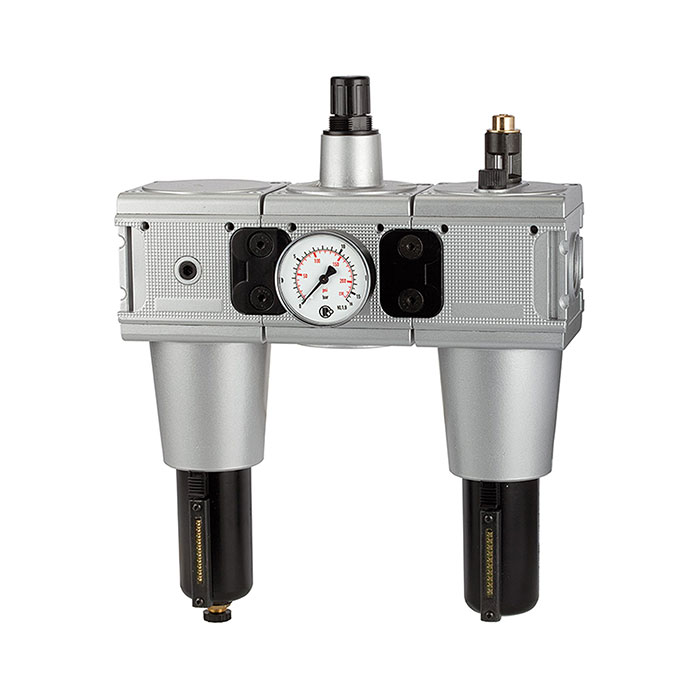

RIEGLER Service unit 3-part »multifix«, Metal container, Size 5, G 1
Type number: FRL 55 M-SR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Wartungseinheit 3-tlg. »multifix«, Metallbehälter und Sichtrohr, BG 5, G 1, Eingangsdruck max. 20 bar, Regelbereich 0,5 - 10 bar
| Inlet pressure max. | 20 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1 |
| Flow rate | 13500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 25 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 5 |
| A | 300 mm |
| B | 383.7 mm |
| C | 128 mm |
| D | 255.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100591] RIEGLER Service unit 3-part »multifix«, Metal container, Size 1, G 1/4](/web/image/product.template/140026/image_128/%5B100591%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=e07afc0)
|
Type number: FRL 11 M-SR |
144.23 € | |
![[100592] RIEGLER Service unit 3-part »multifix«, Metal container, Size 1, G 3/8](/web/image/product.template/140027/image_128/%5B100592%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=888bda6)
|
Type number: FRL 12 M-SR |
144.23 € | |
![[100593] RIEGLER Service unit 3-part »multifix«, Metal container, Size 3, G 1/2](/web/image/product.template/140028/image_128/%5B100593%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201-2?unique=cad6543)
|
Type number: FRL 33 M-SR |
174.13 € | |
![[100594] RIEGLER Service unit 3-part »multifix«, Metal container, Size 3, G 3/4](/web/image/product.template/140029/image_128/%5B100594%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%203-4?unique=b82bc61)
|
Type number: FRL 34 M-SR |
174.13 € | |

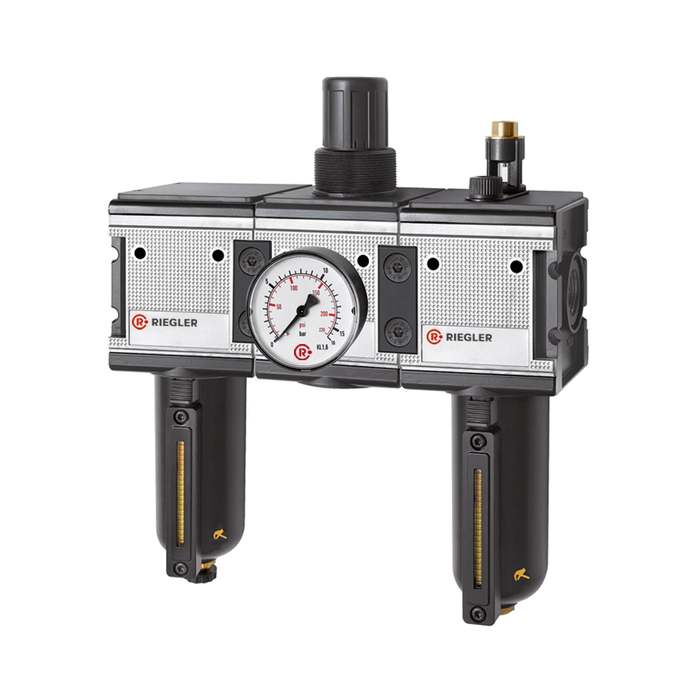

![[133130] RIEGLER Service unit 3-part »multifix«, Metal container, Size 4, G 1](/web/image/product.template/202780/image_128/%5B133130%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201?unique=a44e010)
|
Type number: FRL 45 M-SR-10 |
399.94 € | |
![[133129] RIEGLER Service unit 3-part »multifix«, Metal container, Size 4, G 3/4](/web/image/product.template/202779/image_128/%5B133129%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%203-4?unique=1c058db)
|
Type number: FRL 44 M-SR-10 |
399.94 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=d1aaa60)
|
Type number: 218-KD |
6.25 € | |
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=d4cbd22)
|
Type number: 1233.7.909 |
18.71 € | |
![[100511] RIEGLER Filter element 40 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139946/image_128/%5B100511%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=d4774af)
|
Type number: 655.6.940 |
21.00 € | |
![[100502] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139937/image_128/%5B100502%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=36c4537)
|
Type number: MS 33 FS |
34.69 € | |
![[100549] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139984/image_128/%5B100549%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=a945bef)
|
Type number: MS 33 NS |
32.64 € | |
![[100509] RIEGLER Wear part set](/web/image/product.template/139944/image_128/%5B100509%5D%20RIEGLER%20Wear%20part%20set?unique=824ab5d)
|
Type number: 22.355.4 |
86.10 € | |

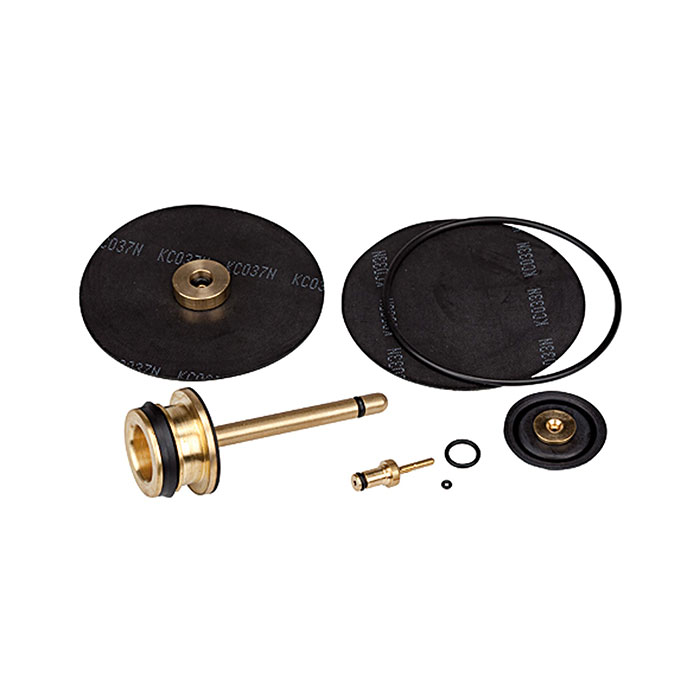

![[100447] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 81x2](/web/image/product.template/139881/image_128/%5B100447%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2081x2?unique=4e1eef0)
|
Type number: 22.1855.4 |
85.44 € | |
