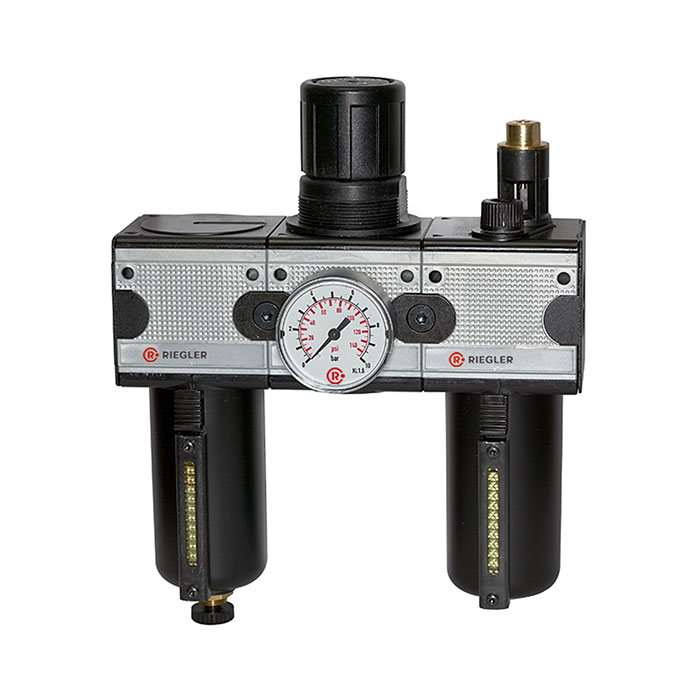

RIEGLER Service unit 3-part »multifix«, Metal container, Size 3, G 1/2
Type number: FRL 33 M-SR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "multifix" maintenance unit made of die-cast zinc, for compressed air preparation - type FRL 33 M-SR
The RIEGLER 3-piece "multifix" maintenance unit with metal container, BG 3, G 1/2 combines a compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 20 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 5800 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of metal container with sight tube. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/2 |
| Flow rate | 5800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 15 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 200.8 mm |
| B | 248.2 mm |
| C | 99 mm |
| D | 149.2 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100591] RIEGLER Service unit 3-part »multifix«, Metal container, Size 1, G 1/4](/web/image/product.template/140026/image_128/%5B100591%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=9da554c)
|
Type number: FRL 11 M-SR |
144.23 € | |
![[100592] RIEGLER Service unit 3-part »multifix«, Metal container, Size 1, G 3/8](/web/image/product.template/140027/image_128/%5B100592%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=d3ea1c6)
|
Type number: FRL 12 M-SR |
144.23 € | |
![[100594] RIEGLER Service unit 3-part »multifix«, Metal container, Size 3, G 3/4](/web/image/product.template/140029/image_128/%5B100594%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%203-4?unique=f22bd0e)
|
Type number: FRL 34 M-SR |
174.13 € | |
![[133130] RIEGLER Service unit 3-part »multifix«, Metal container, Size 4, G 1](/web/image/product.template/202780/image_128/%5B133130%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201?unique=595a064)
|
Type number: FRL 45 M-SR-10 |
399.94 € | |
![[133129] RIEGLER Service unit 3-part »multifix«, Metal container, Size 4, G 3/4](/web/image/product.template/202779/image_128/%5B133129%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%203-4?unique=3515601)
|
Type number: FRL 44 M-SR-10 |
399.94 € | |

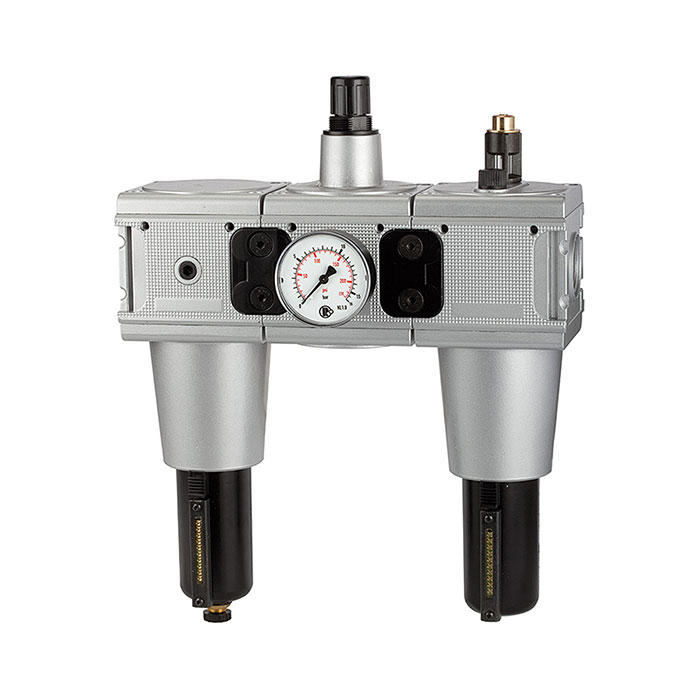

![[100595] RIEGLER Service unit 3-part »multifix«, Metal container, Size 5, G 1](/web/image/product.template/140030/image_128/%5B100595%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%205%2C%20G%201?unique=4cad4ce)
|
Type number: FRL 55 M-SR |
433.17 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=dcaf7c4)
|
Type number: 1233.7.909 |
18.71 € | |
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=c07d854)
|
Type number: 633.6.905 |
13.89 € | |

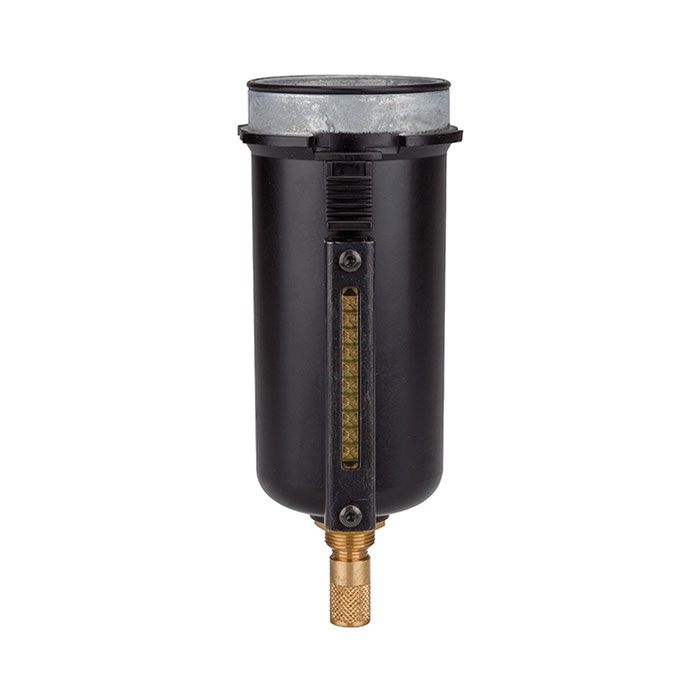

![[100502] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139937/image_128/%5B100502%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=5e9d4bc)
|
Type number: MS 33 FS |
34.69 € | |

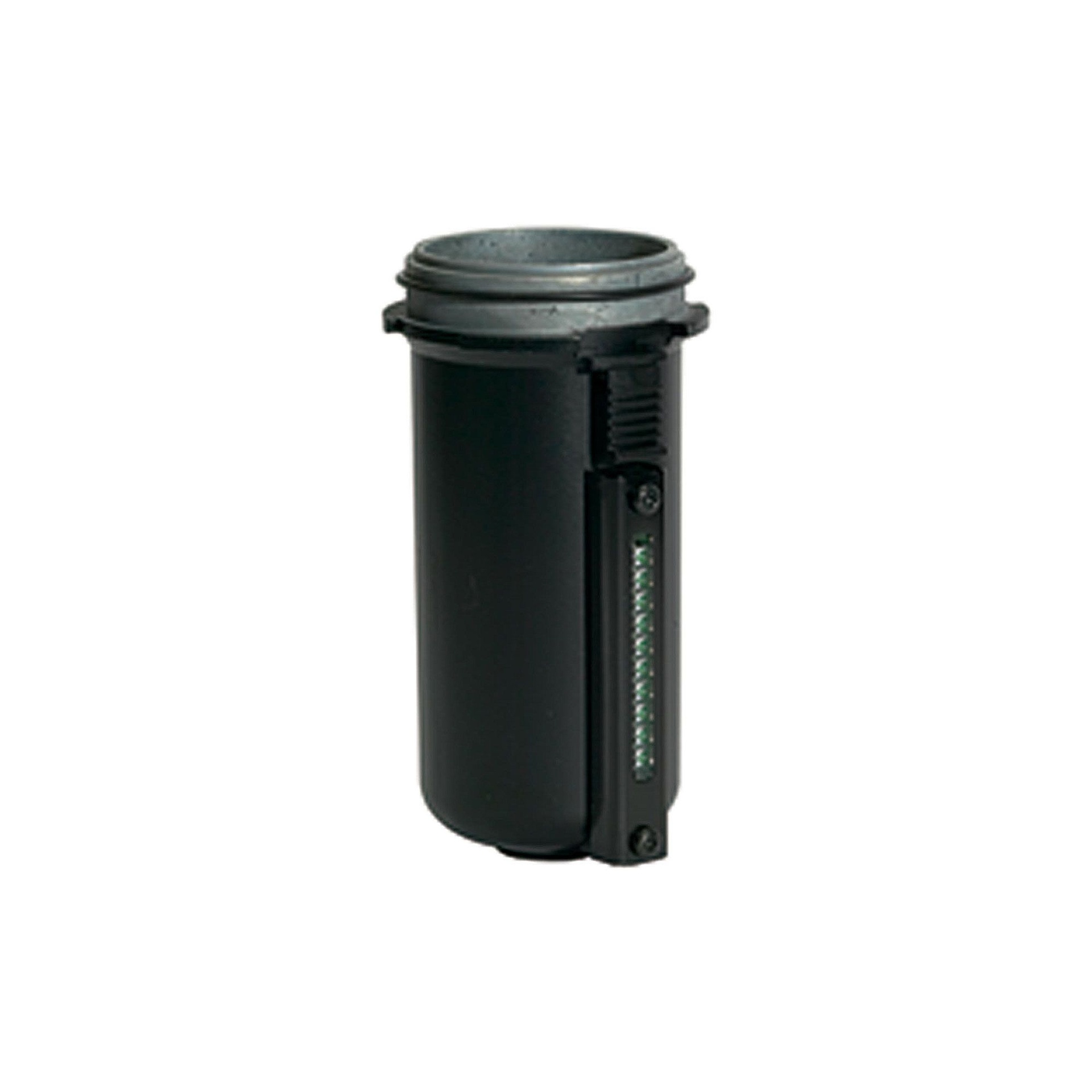

![[100549] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139984/image_128/%5B100549%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=a1502b4)
|
Type number: MS 33 NS |
32.64 € | |
![[101678] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169650/image_128/%5B101678%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=cda21d5)
|
Type number: 207-KD |
6.25 € | |

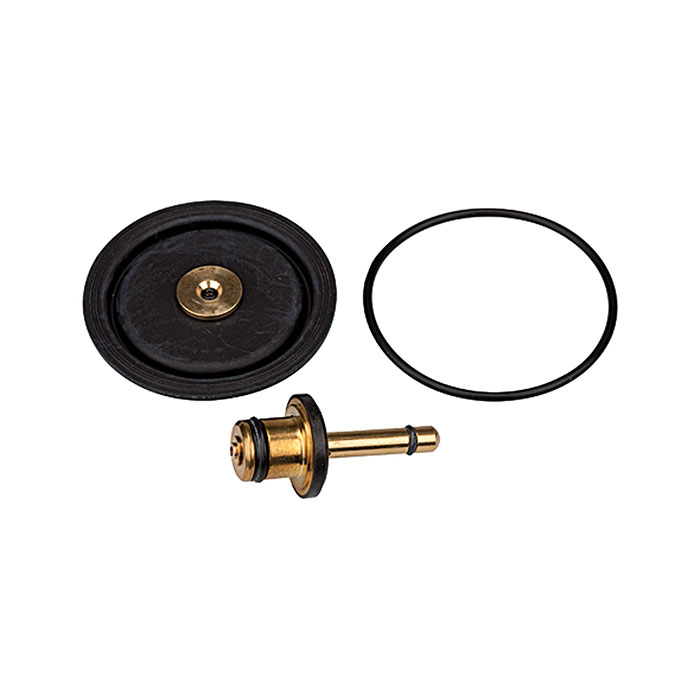

![[100444] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 50x2](/web/image/product.template/139878/image_128/%5B100444%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2050x2?unique=265fb6f)
|
