RIEGLER Pressure regulator »variobloc«, Size 1, G 1/4, 0.5 - 10 bar
Type number: VR 23
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator »variobloc«, incl. pressure gauge, Size 1, G 1/4, Input pressure max. 25 bar, Control range 0.5 - 10 bar
| Inlet pressure max. | 25 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Spring cover | POM |
| Thread | G 1/4 |
| Flow rate | 2000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 48 mm |
| B | 98 mm |
| C | 26 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100636] RIEGLER Pressure regulator »variobloc«, Size 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/140071/image_128/%5B100636%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=37db56f)
|
Type number: VR 24 |
72.84 € | |
![[100634] RIEGLER Pressure regulator »variobloc«, Size 1, G 1/4, 0.5 - 6 bar](/web/image/product.template/140069/image_128/%5B100634%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%206%20bar?unique=de33a84)
|
Type number: VR 22 |
72.84 € | |
![[100638] RIEGLER Pressure regulator »variobloc«, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/140073/image_128/%5B100638%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=b114841)
|
Type number: VR 33 |
72.84 € | |
![[100639] RIEGLER Pressure regulator »variobloc«, Size 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/140074/image_128/%5B100639%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=9028bbd)
|
Type number: VR 34 |
72.84 € | |
![[100637] RIEGLER Pressure regulator »variobloc«, Size 1, G 3/8, 0.5 - 6 bar](/web/image/product.template/140072/image_128/%5B100637%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%206%20bar?unique=89730bb)
|
Type number: VR 32 |
72.84 € | |
![[100647] RIEGLER Pressure regulator »variobloc«, Size 2, G 1, 0.5 - 10 bar](/web/image/product.template/140082/image_128/%5B100647%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201%2C%200.5%20-%2010%20bar?unique=101775f)
|
Type number: VR 63 |
134.91 € | |
![[100648] RIEGLER Pressure regulator »variobloc«, Size 2, G 1, 0.5 - 16 bar](/web/image/product.template/140083/image_128/%5B100648%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201%2C%200.5%20-%2016%20bar?unique=3650731)
|
Type number: VR 64 |
134.91 € | |
![[100646] RIEGLER Pressure regulator »variobloc«, Size 2, G 1, 0.5 - 6 bar](/web/image/product.template/140081/image_128/%5B100646%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201%2C%200.5%20-%206%20bar?unique=b114841)
|
Type number: VR 62 |
87.05 € | |
![[100641] RIEGLER Pressure regulator »variobloc«, Size 2, G 1/2, 0.5 - 10 bar](/web/image/product.template/140076/image_128/%5B100641%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=b114841)
|
Type number: VR 43 |
56.41 € | |
![[100640] RIEGLER Pressure regulator »variobloc«, Size 2, G 1/2, 0.5 - 6 bar](/web/image/product.template/140075/image_128/%5B100640%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%206%20bar?unique=2646397)
|
Type number: VR 42 |
87.43 € | |
![[100644] RIEGLER Pressure regulator »variobloc«, Size 2, G 3/4, 0.5 - 10 bar](/web/image/product.template/140079/image_128/%5B100644%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=195cfde)
|
Type number: VR 53 |
87.43 € | |
![[100645] RIEGLER Pressure regulator »variobloc«, Size 2, G 3/4, 0.5 - 16 bar](/web/image/product.template/140080/image_128/%5B100645%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=450e8d9)
|
Type number: VR 54 |
87.43 € | |
![[100643] RIEGLER Pressure regulator »variobloc«, Size 2, G 3/4, 0.5 - 6 bar](/web/image/product.template/140078/image_128/%5B100643%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%206%20bar?unique=b114841)
|
Type number: VR 52 |
56.41 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

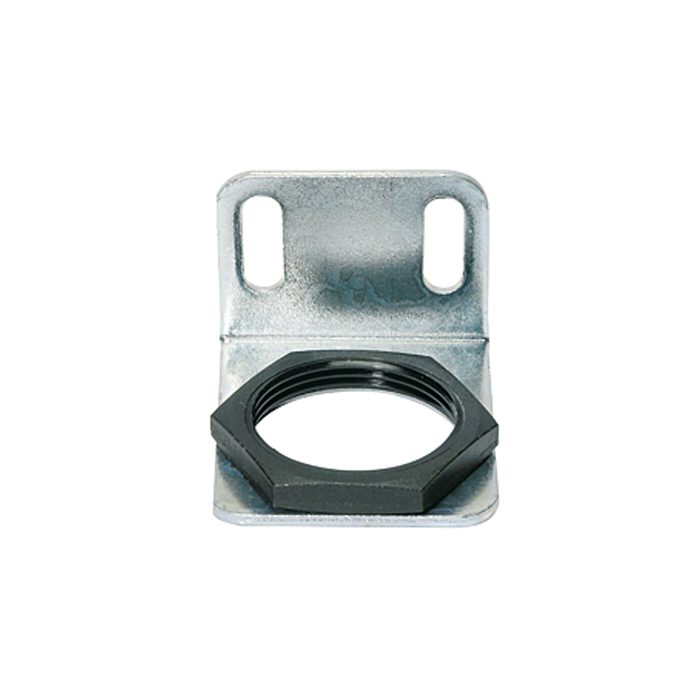

![[100746] RIEGLER Mounting bracket and fastening nut, for »variobloc«, Size 1](/web/image/product.template/140182/image_128/%5B100746%5D%20RIEGLER%20Mounting%20bracket%20and%20fastening%20nut%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=543f154)
|
Type number: 630/1-B |
9.22 € | |
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=471314d)
|
Type number: VZ 718 |
9.32 € | |
![[100750] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140186/image_128/%5B100750%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=35915c8)
|
Type number: VZ 101 |
9.31 € | |
![[100754] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 1/4](/web/image/product.template/140190/image_128/%5B100754%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=7fa306e)
|
Type number: VZ 201 |
9.52 € | |

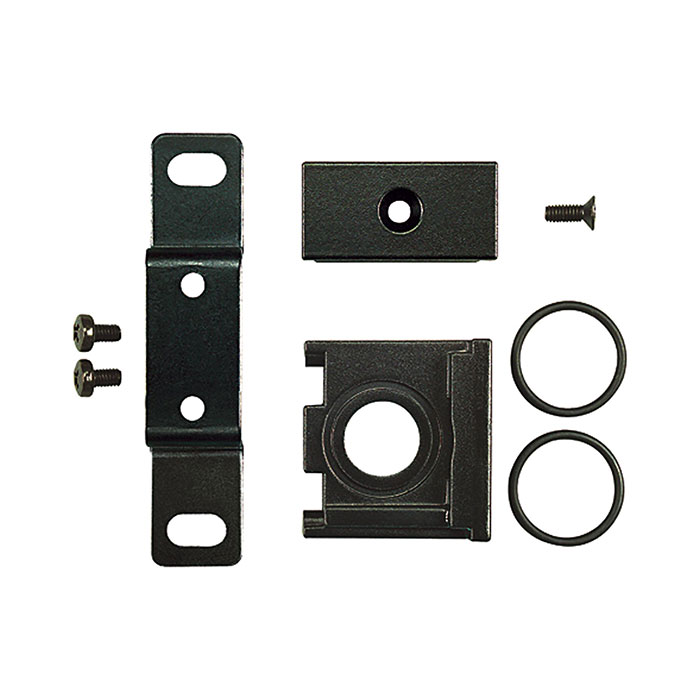

![[100760] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140196/image_128/%5B100760%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=0516cc6)
|
Type number: VZ 401 |
27.87 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

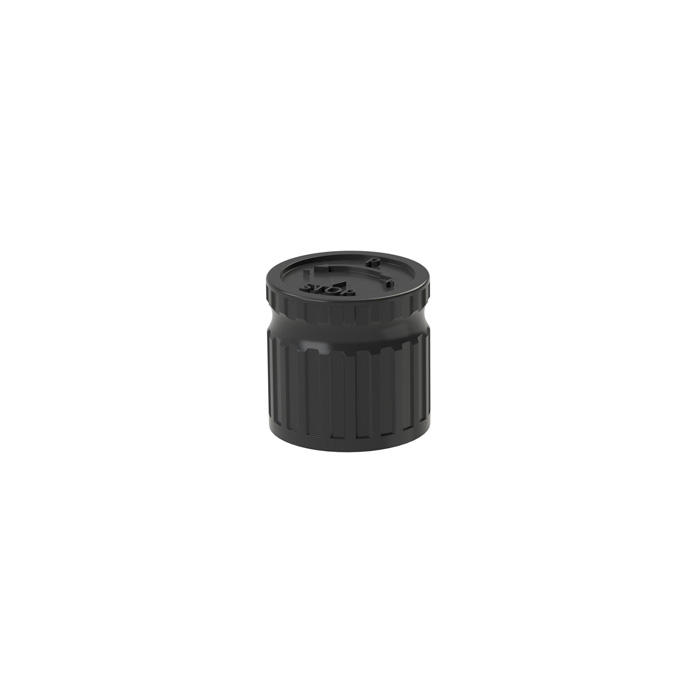

![[118707] RIEGLER Handwheel "variobloc" BG 1 for pressure and filter regulator](/web/image/product.template/280930/image_128/%5B118707%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%201%20for%20pressure%20and%20filter%20regulator?unique=64bf3c5)
|
Type number: 423.3.97 |
1.86 € | |

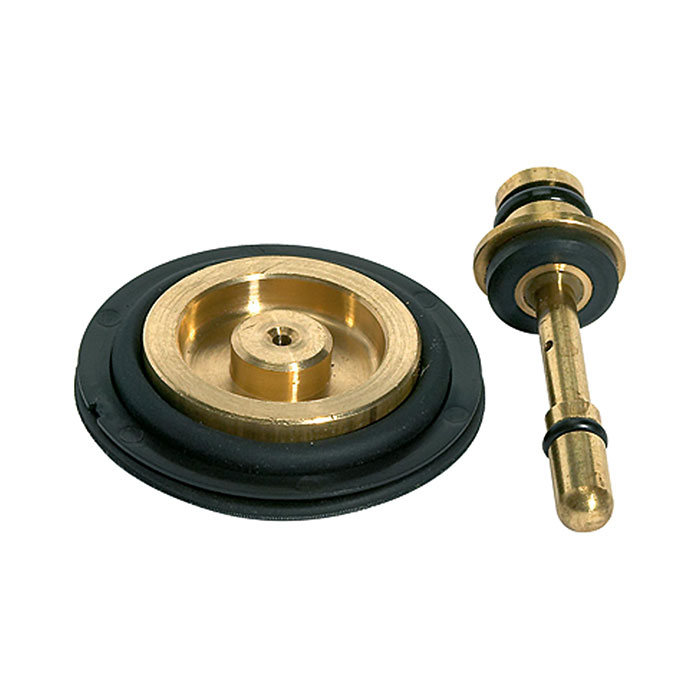

![[100649] RIEGLER Wear part set for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140084/image_128/%5B100649%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=4bbfc04)
|
Type number: VZ 781 |
19.16 € | |
