RIEGLER Pressure regulator »variobloc«, Size 2, G 1, 0.5 - 10 bar
Type number: VR 63
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator »variobloc«, incl. pressure gauge, Size 2, G 1, Input pressure max. 25 bar, Control range 0.5 - 10 bar
| Inlet pressure max. | 25 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Spring cover | POM |
| Thread | G 1 |
| Flow rate | 8000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 125 mm |
| B | 134 mm |
| C | 33 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100635] RIEGLER Pressure regulator »variobloc«, Size 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/140070/image_128/%5B100635%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=b114841)
|
Type number: VR 23 |
72.84 € | |
![[100636] RIEGLER Pressure regulator »variobloc«, Size 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/140071/image_128/%5B100636%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=37db56f)
|
Type number: VR 24 |
72.84 € | |
![[100634] RIEGLER Pressure regulator »variobloc«, Size 1, G 1/4, 0.5 - 6 bar](/web/image/product.template/140069/image_128/%5B100634%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%206%20bar?unique=de33a84)
|
Type number: VR 22 |
72.84 € | |
![[100638] RIEGLER Pressure regulator »variobloc«, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/140073/image_128/%5B100638%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=b114841)
|
Type number: VR 33 |
72.84 € | |
![[100639] RIEGLER Pressure regulator »variobloc«, Size 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/140074/image_128/%5B100639%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=9028bbd)
|
Type number: VR 34 |
72.84 € | |
![[100637] RIEGLER Pressure regulator »variobloc«, Size 1, G 3/8, 0.5 - 6 bar](/web/image/product.template/140072/image_128/%5B100637%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%206%20bar?unique=89730bb)
|
Type number: VR 32 |
72.84 € | |
![[100648] RIEGLER Pressure regulator »variobloc«, Size 2, G 1, 0.5 - 16 bar](/web/image/product.template/140083/image_128/%5B100648%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201%2C%200.5%20-%2016%20bar?unique=3650731)
|
Type number: VR 64 |
134.91 € | |
![[100646] RIEGLER Pressure regulator »variobloc«, Size 2, G 1, 0.5 - 6 bar](/web/image/product.template/140081/image_128/%5B100646%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201%2C%200.5%20-%206%20bar?unique=b114841)
|
Type number: VR 62 |
87.05 € | |
![[100641] RIEGLER Pressure regulator »variobloc«, Size 2, G 1/2, 0.5 - 10 bar](/web/image/product.template/140076/image_128/%5B100641%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=b114841)
|
Type number: VR 43 |
56.41 € | |
![[100640] RIEGLER Pressure regulator »variobloc«, Size 2, G 1/2, 0.5 - 6 bar](/web/image/product.template/140075/image_128/%5B100640%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%206%20bar?unique=2646397)
|
Type number: VR 42 |
87.43 € | |
![[100644] RIEGLER Pressure regulator »variobloc«, Size 2, G 3/4, 0.5 - 10 bar](/web/image/product.template/140079/image_128/%5B100644%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=195cfde)
|
Type number: VR 53 |
87.43 € | |
![[100645] RIEGLER Pressure regulator »variobloc«, Size 2, G 3/4, 0.5 - 16 bar](/web/image/product.template/140080/image_128/%5B100645%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=450e8d9)
|
Type number: VR 54 |
87.43 € | |
![[100643] RIEGLER Pressure regulator »variobloc«, Size 2, G 3/4, 0.5 - 6 bar](/web/image/product.template/140078/image_128/%5B100643%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%206%20bar?unique=b114841)
|
Type number: VR 52 |
56.41 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

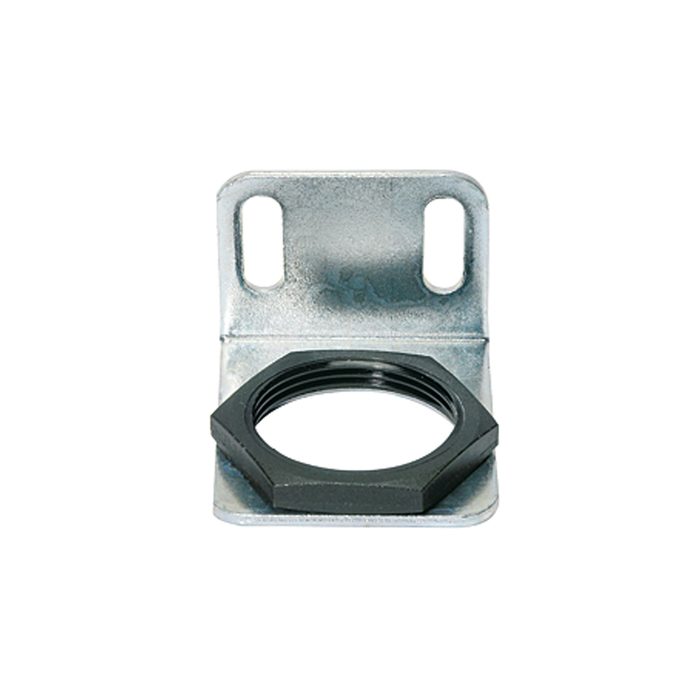

![[100747] RIEGLER Mounting bracket and fastening nut, for »variobloc«, Size 2](/web/image/product.template/140183/image_128/%5B100747%5D%20RIEGLER%20Mounting%20bracket%20and%20fastening%20nut%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=ce04309)
|
Type number: 630/2-B |
13.52 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=c3c0f0b)
|
Type number: VZ 719 |
13.99 € | |
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=615cd42)
|
Type number: VZ 104 |
14.01 € | |
![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=229c1f6)
|
Type number: VZ 204 |
23.11 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=1688a47)
|
Type number: VZ 500 |
29.85 € | |

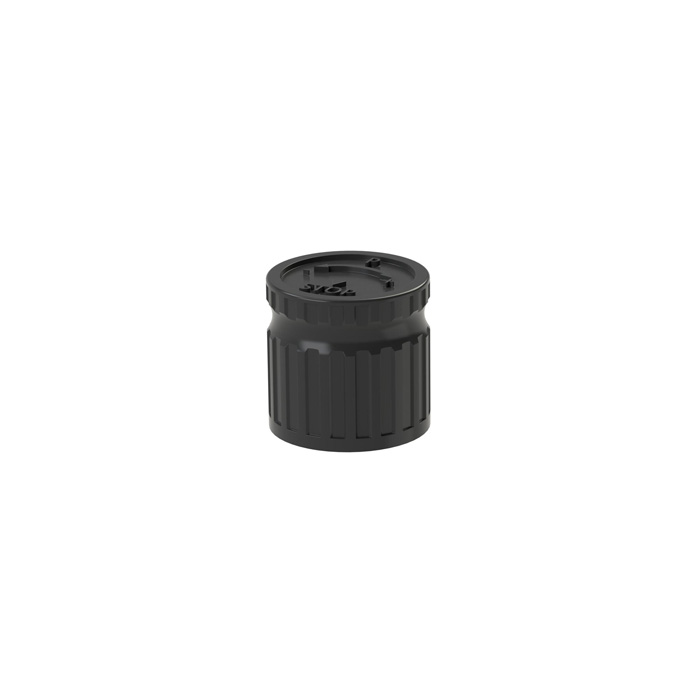

![[118831] RIEGLER Handwheel "variobloc" BG 2 for pressure and filter regulator](/web/image/product.template/280939/image_128/%5B118831%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%202%20for%20pressure%20and%20filter%20regulator?unique=dc2c63c)
|
Type number: 443.3.94 |
2.36 € | |

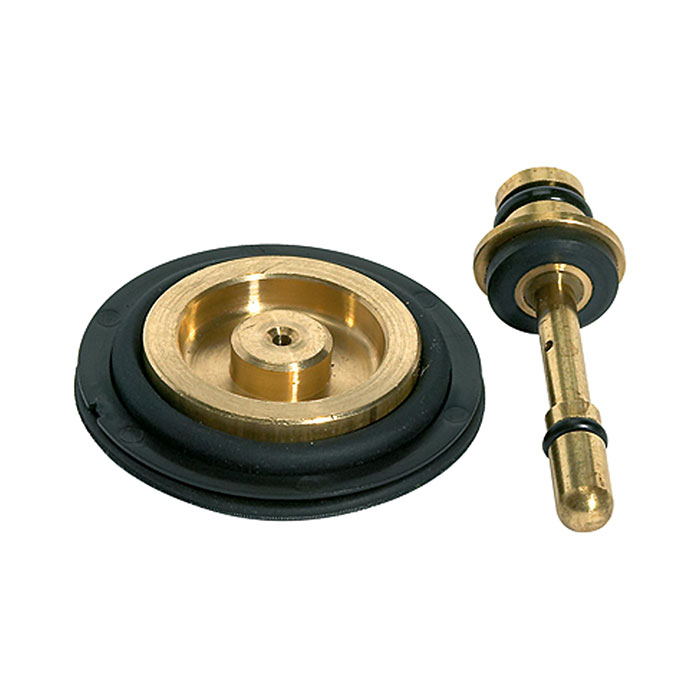

![[100650] RIEGLER Wear part set for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140085/image_128/%5B100650%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=f7add59)
|
