RIEGLER Active charcoal filter »variobloc«, PC container, Size 1, G 3/8
Type number: VAK 23
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Activated carbon filter "variobloc" with polycarbonate container, 0.003 mg/m³, BG 1, G 3/8, PE max. 16 bar, med. ambient temp. max. 50 °C
| Inlet pressure max. | 16 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Residual oil content | 0.003 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 3/8 |
| Flow rate | 1000 l/min |
| BG | 1 |
| A | 48 mm |
| B | 142 mm |
| C | 22 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >=0.3% and <1.0% |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100692] RIEGLER Active charcoal filter »variobloc«, PC container, Size 1, G 1/4](/web/image/product.template/140127/image_128/%5B100692%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=5b1ab7a)
|
Type number: VAK 22 |
112.80 € | |
![[100696] RIEGLER Active charcoal filter »variobloc«, PC container, Size 2, G 1](/web/image/product.template/140131/image_128/%5B100696%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%202%2C%20G%201?unique=71ef455)
|
Type number: VAK 26 |
179.68 € | |
![[100694] RIEGLER Active charcoal filter »variobloc«, PC container, Size 2, G 1/2](/web/image/product.template/140129/image_128/%5B100694%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%202%2C%20G%201-2?unique=85e06f9)
|
Type number: VAK 24 |
131.80 € | |

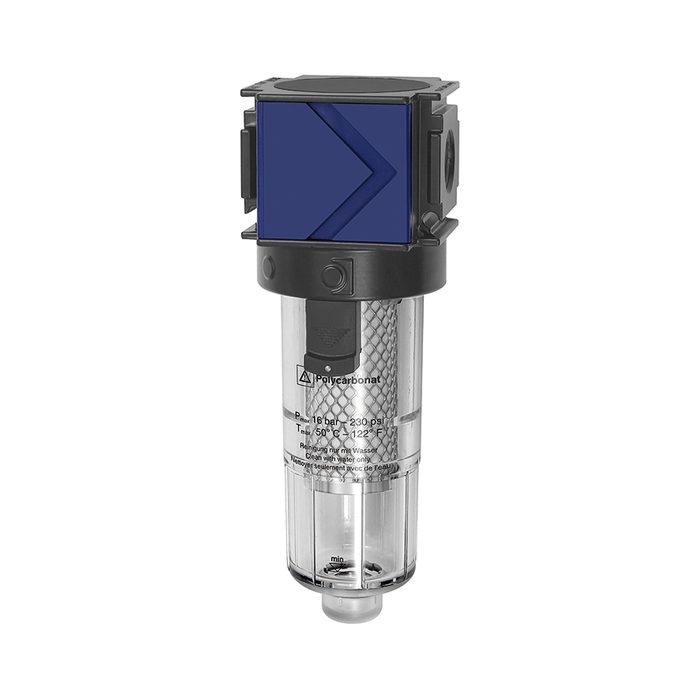

![[100695] RIEGLER Active charcoal filter »variobloc«, PC container, Size 2, G 3/4](/web/image/product.template/140130/image_128/%5B100695%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%202%2C%20G%203-4?unique=ab43c46)
|
Type number: VAK 25 |
131.80 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=4aa0036)
|
Type number: VZ 531 |
14.48 € | |

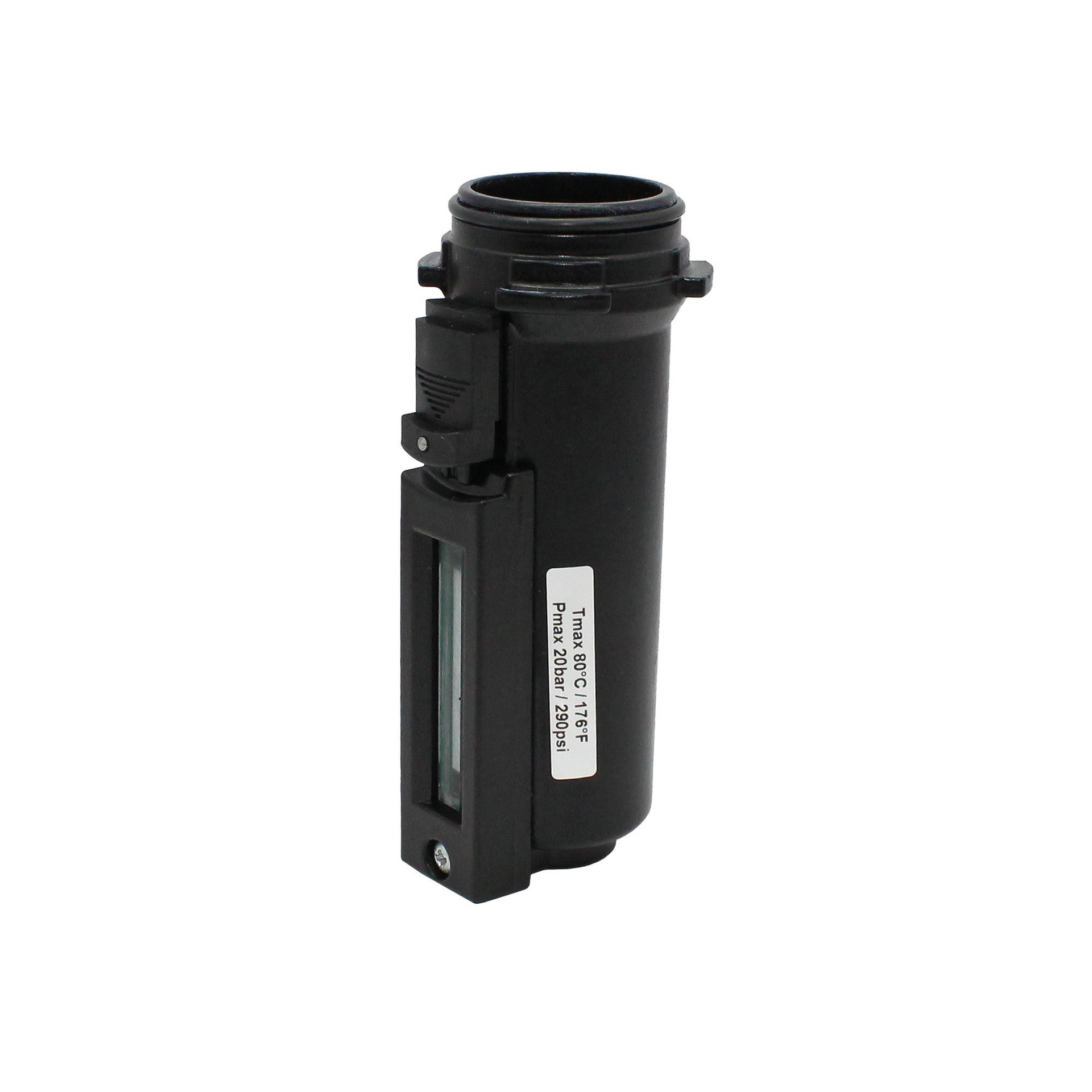

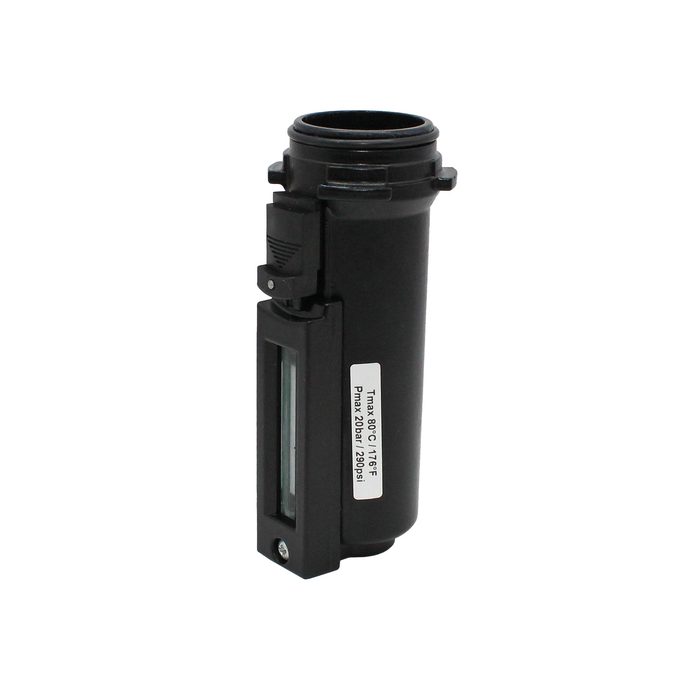

![[100699] RIEGLER Metal container incl. viewing tube](/web/image/product.template/140134/image_128/%5B100699%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube?unique=1aaab0f)
|
Type number: VZ 651 |
47.16 € | |
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=900b8e1)
|
Type number: VZ 718 |
9.32 € | |
![[100751] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 3/8](/web/image/product.template/140187/image_128/%5B100751%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=0bbba4b)
|
Type number: VZ 102 |
9.97 € | |
![[100755] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 3/8](/web/image/product.template/140191/image_128/%5B100755%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=afb24e6)
|
Type number: VZ 202 |
9.23 € | |

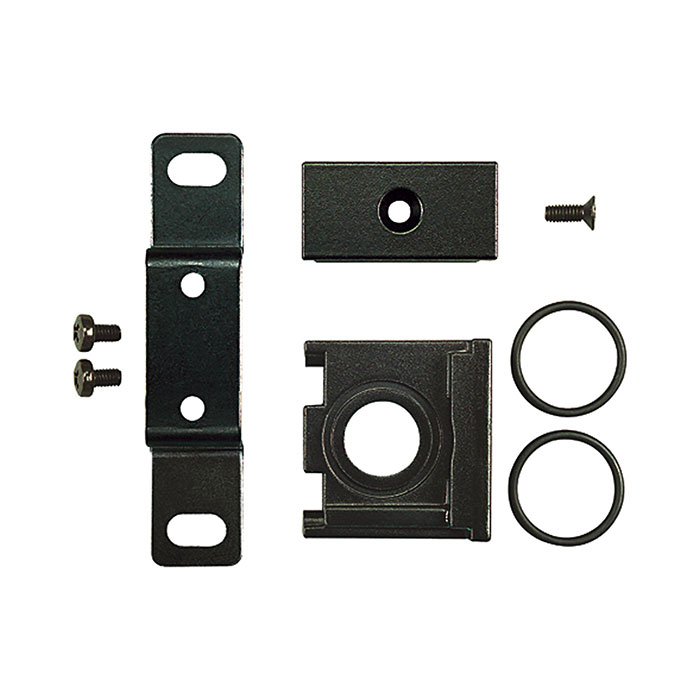

![[100761] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 3/8](/web/image/product.template/140197/image_128/%5B100761%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=edcaede)
|
Type number: VZ 402 |
28.19 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100701] RIEGLER Active charcoal filter element](/web/image/product.template/140136/image_128/%5B100701%5D%20RIEGLER%20Active%20charcoal%20filter%20element?unique=56e6ef0)
|
Type number: VZ 771 |
82.43 € | |

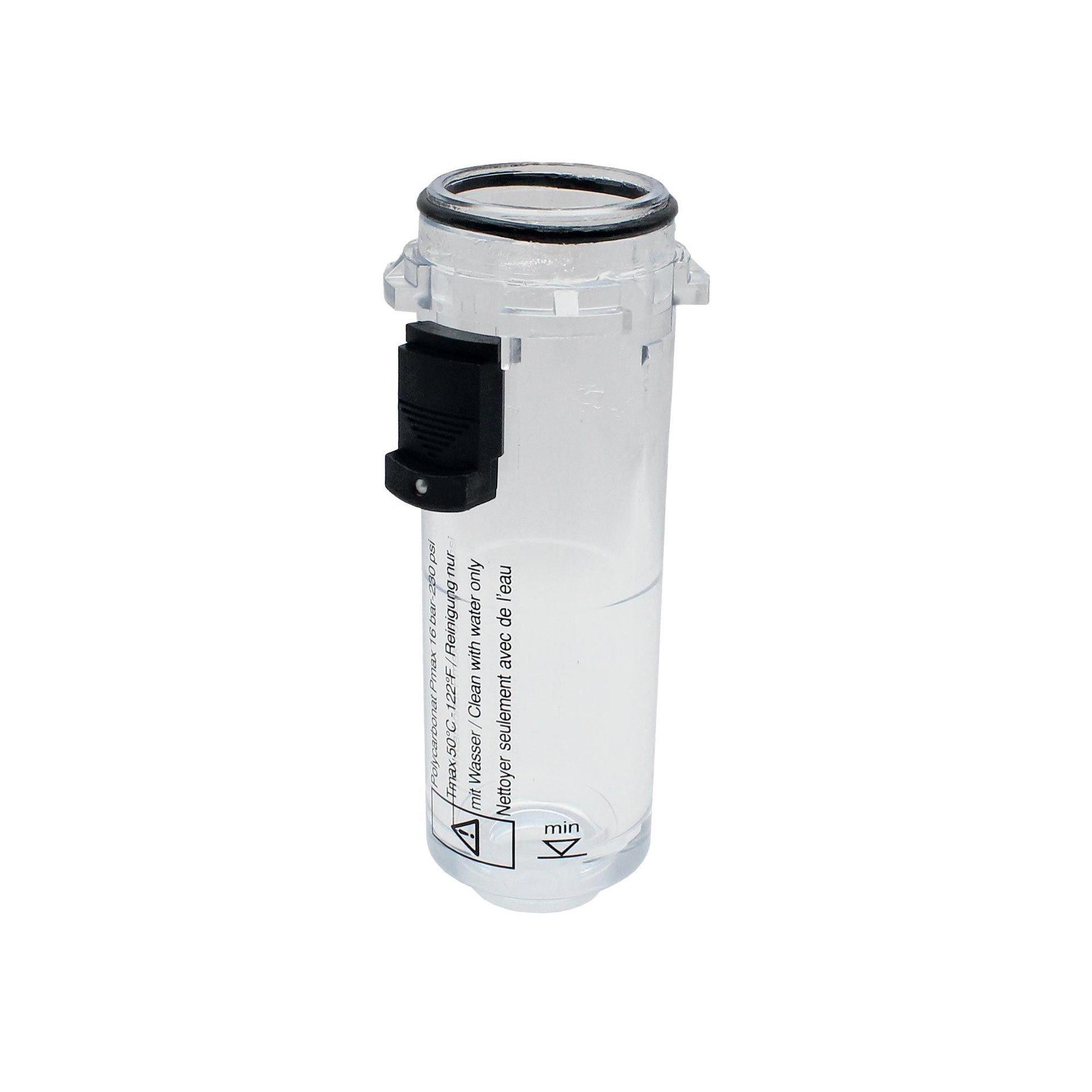

![[100697] RIEGLER Polycarbonate container](/web/image/product.template/140132/image_128/%5B100697%5D%20RIEGLER%20Polycarbonate%20container?unique=13f27e5)
|
Type number: VZ 601 |
33.31 € | |
