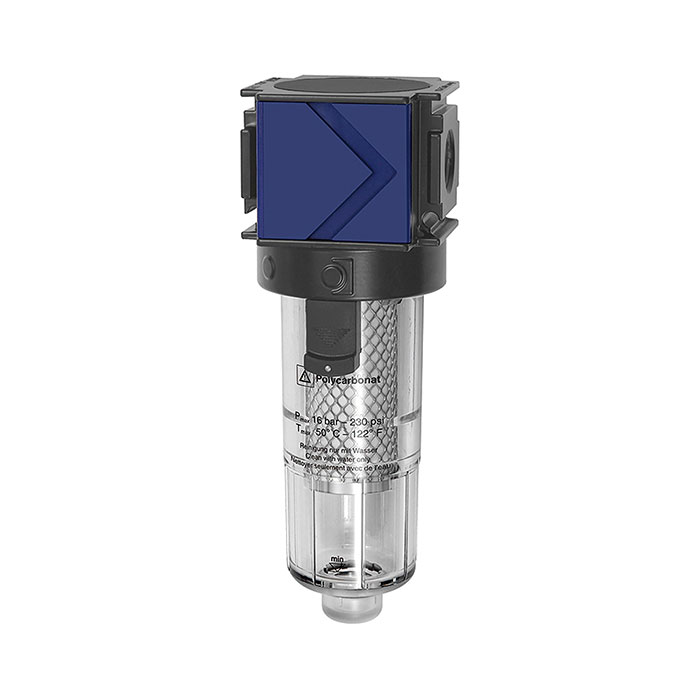

RIEGLER Active charcoal filter »variobloc«, PC container, Size 1, G 1/4
Type number: VAK 22
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "variobloc" for compressed air treatment, G 1/4 - type VAK 22
The RIEGLER activated carbon filter "variobloc", polycarbonate container, BG 1, G 1/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 800 l/min (at P1 = 7 bar and pressure drop Δp = 0.2 bar). Tank made of polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Residual oil content | 0.003 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| BG | 1 |
| A | 48 mm |
| B | 142 mm |
| C | 22 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >=0.3% and <1.0% |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100693] RIEGLER Active charcoal filter »variobloc«, PC container, Size 1, G 3/8](/web/image/product.template/140128/image_128/%5B100693%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=23064b7)
|
Type number: VAK 23 |
87.98 € | |
![[100696] RIEGLER Active charcoal filter »variobloc«, PC container, Size 2, G 1](/web/image/product.template/140131/image_128/%5B100696%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%202%2C%20G%201?unique=5c7efc3)
|
Type number: VAK 26 |
176.74 € | |
![[100694] RIEGLER Active charcoal filter »variobloc«, PC container, Size 2, G 1/2](/web/image/product.template/140129/image_128/%5B100694%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%202%2C%20G%201-2?unique=23064b7)
|
Type number: VAK 24 |
131.80 € | |
![[100695] RIEGLER Active charcoal filter »variobloc«, PC container, Size 2, G 3/4](/web/image/product.template/140130/image_128/%5B100695%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%202%2C%20G%203-4?unique=34f139a)
|
Type number: VAK 25 |
131.80 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

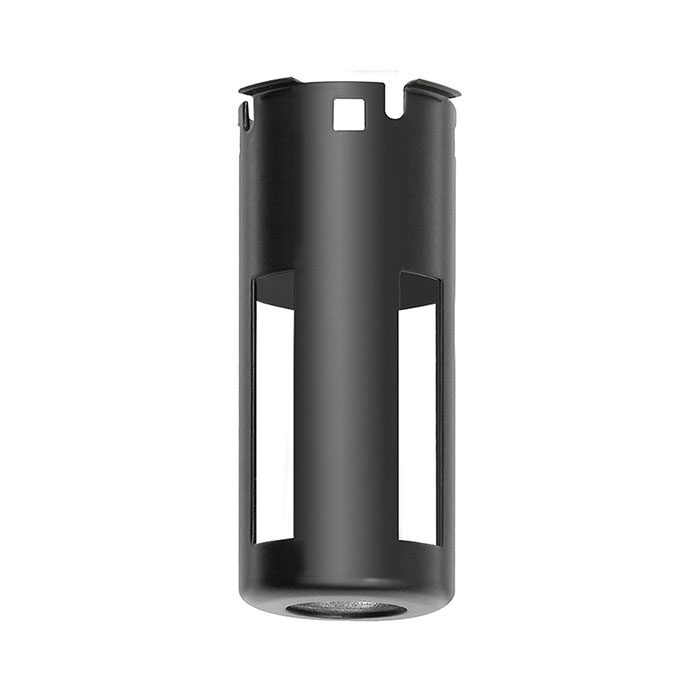

![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=5e5afd1)
|
Type number: VZ 531 |
14.24 € | |

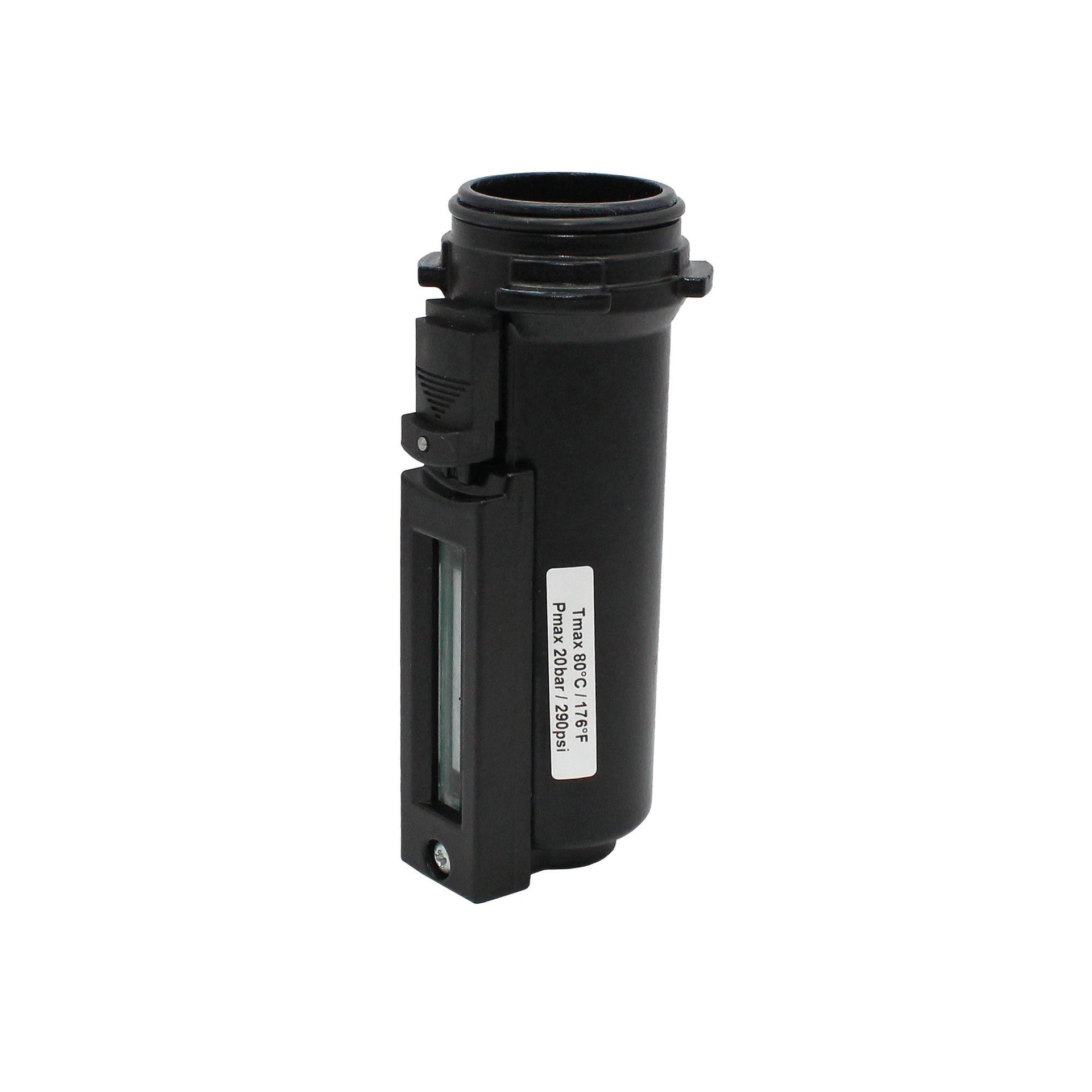

![[100699] RIEGLER Metal container incl. viewing tube](/web/image/product.template/140134/image_128/%5B100699%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube?unique=f0c9d79)
|
Type number: VZ 651 |
47.16 € | |
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=e02f51c)
|
Type number: VZ 718 |
9.32 € | |

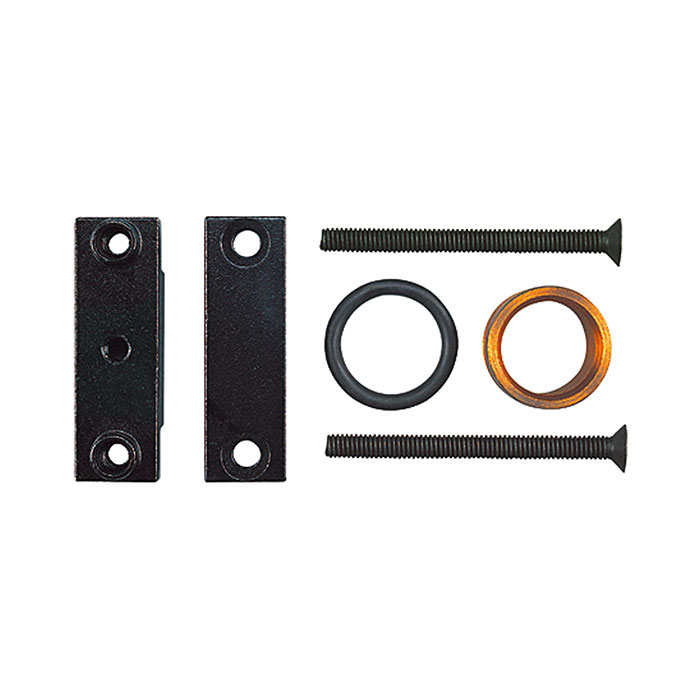

![[100750] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140186/image_128/%5B100750%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=3b0b190)
|
Type number: VZ 101 |
9.29 € | |

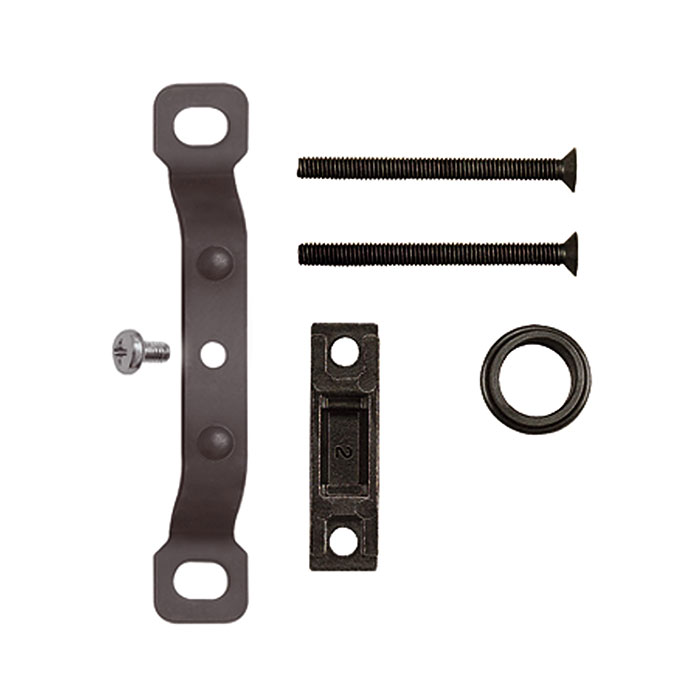

![[100754] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 1/4](/web/image/product.template/140190/image_128/%5B100754%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=dba4309)
|
Type number: VZ 201 |
9.52 € | |

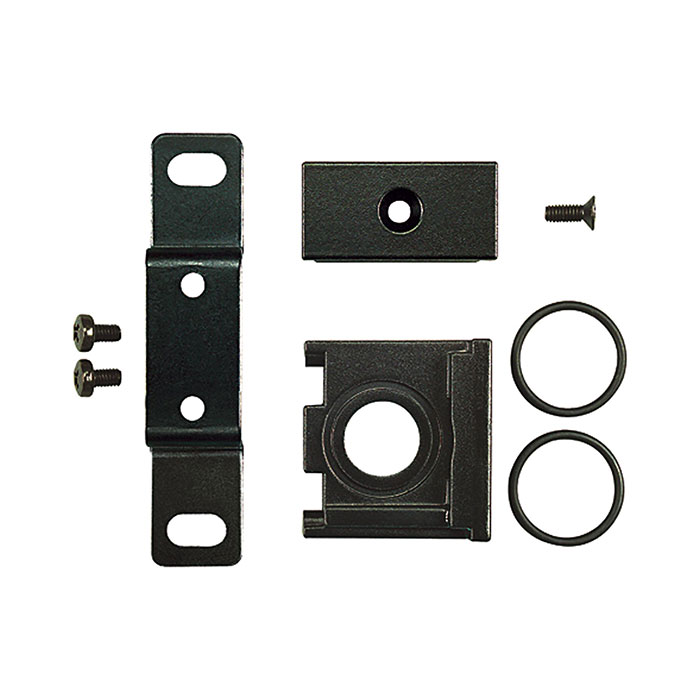

![[100760] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140196/image_128/%5B100760%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=cd86f7f)
|
Type number: VZ 401 |
27.86 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

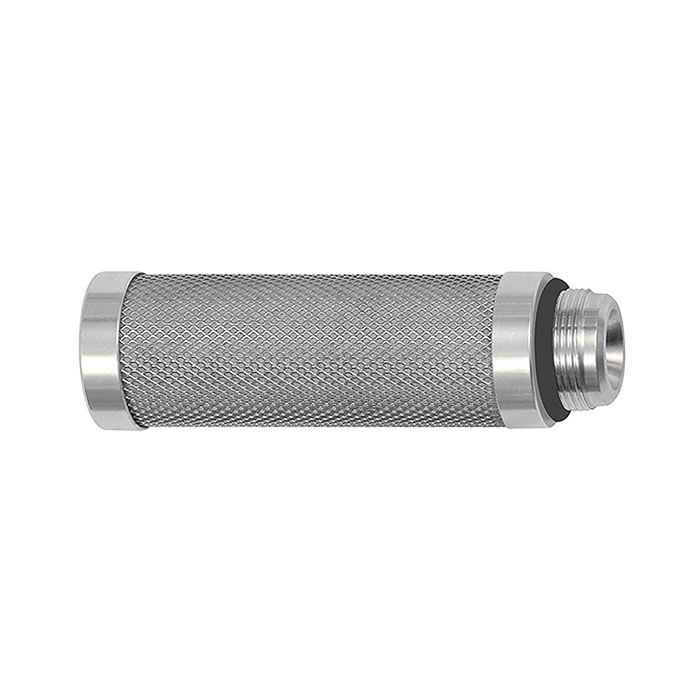

![[100701] RIEGLER Active charcoal filter element](/web/image/product.template/140136/image_128/%5B100701%5D%20RIEGLER%20Active%20charcoal%20filter%20element?unique=5e7f625)
|
Type number: VZ 771 |
81.07 € | |

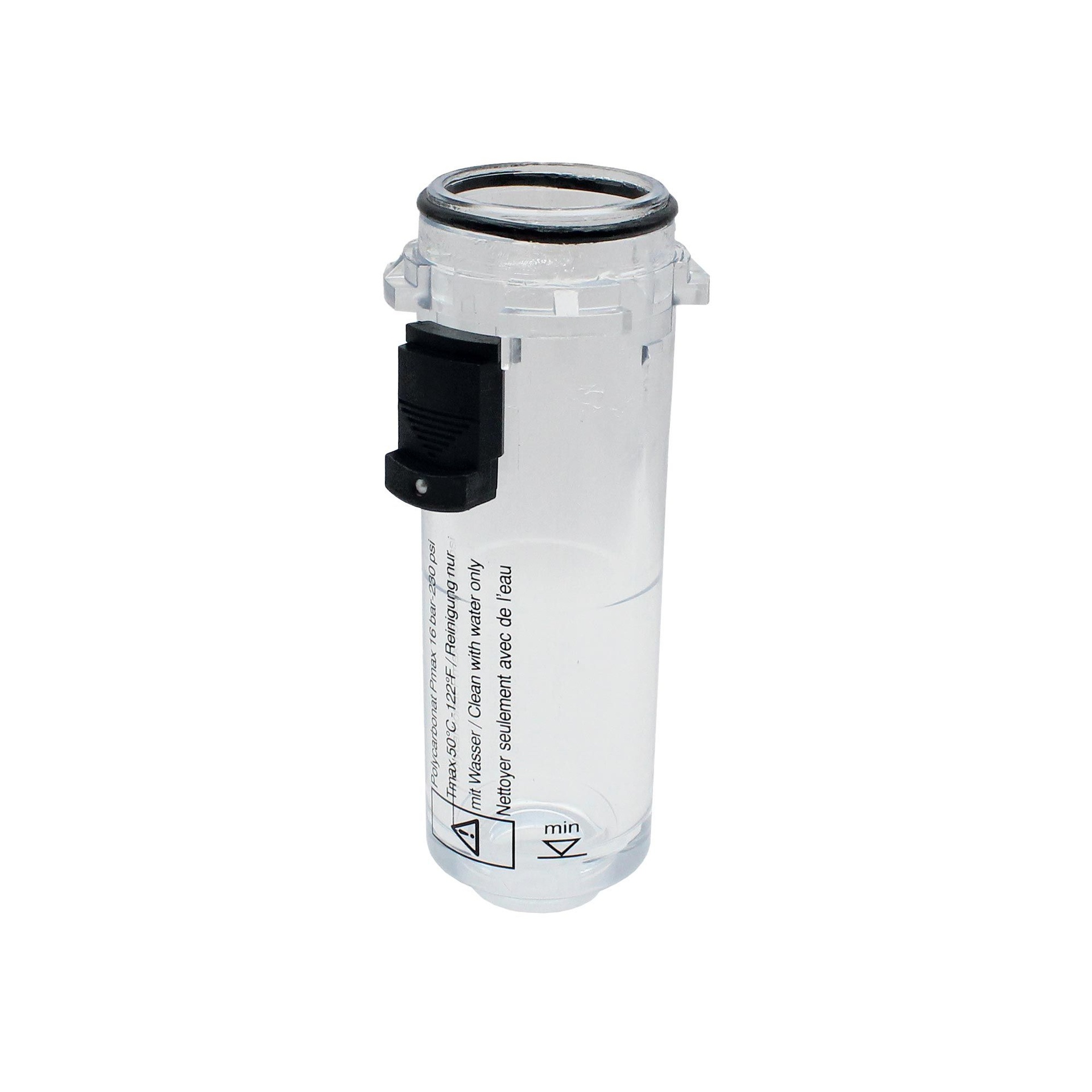

![[100697] RIEGLER Polycarbonate container](/web/image/product.template/140132/image_128/%5B100697%5D%20RIEGLER%20Polycarbonate%20container?unique=4c996fc)
|
