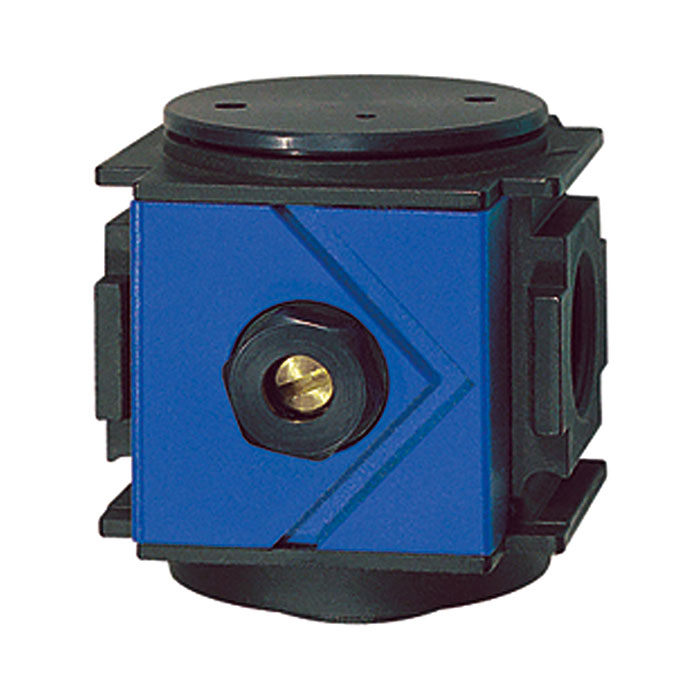

RIEGLER Start up valve »variobloc«, Size 1, G 3/8
Type number: VA 23
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Start-up valve "variobloc" for compressed air preparation, max. 25 bar, G 3/8 - type VA 23
The RIEGLER start-up valve "variobloc", BG 1, G 3/8, operating pressure 2 - 25 bar expands maintenance systems modularly with additional functions. The operating pressure range is 2 bar to 25 bar. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 1400 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Operating pressure min. | 2 bar |
| Max. operating pressure | 25 bar |
| Thread | G 3/8 |
| Flow rate | 1400 l/min |
| BG | 1 |
| A | 48 mm |
| B | 54 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
