RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 3, G 1/2
Type number: 685 K-HA
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Special filter »Standard« with PC container, 0.01 µm, Size 3, G 1/2, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container |
| Filter fineness | 0.01 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1/2 |
| Flow rate | 1250 l/min |
| Condensate drain | semi-automatic |
| DN | 15 |
| BG | 3 |
| A | 79 mm |
| C | 18 mm |
| D | 168.4 mm |
| H | 50 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100988] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 1, G 1/4](/web/image/product.template/140424/image_128/%5B100988%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=03cb4a9)
|
Type number: 673 K-HA |
44.63 € | |

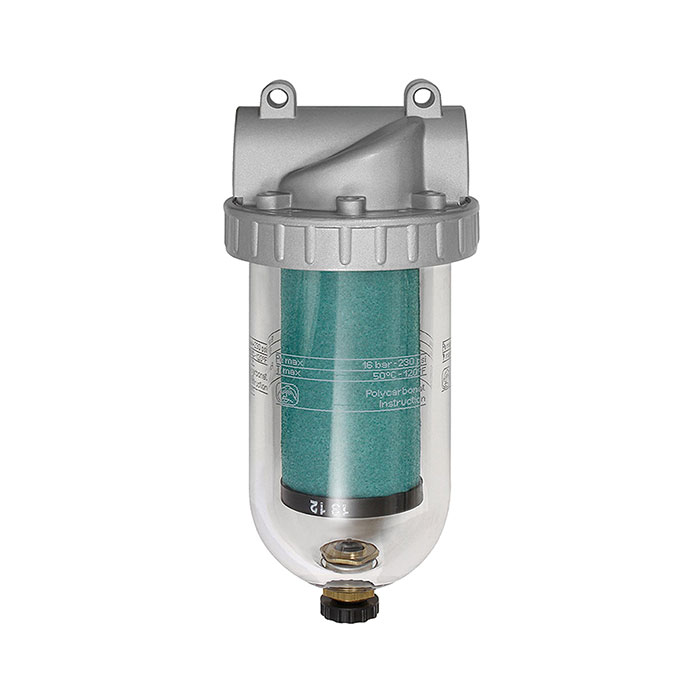

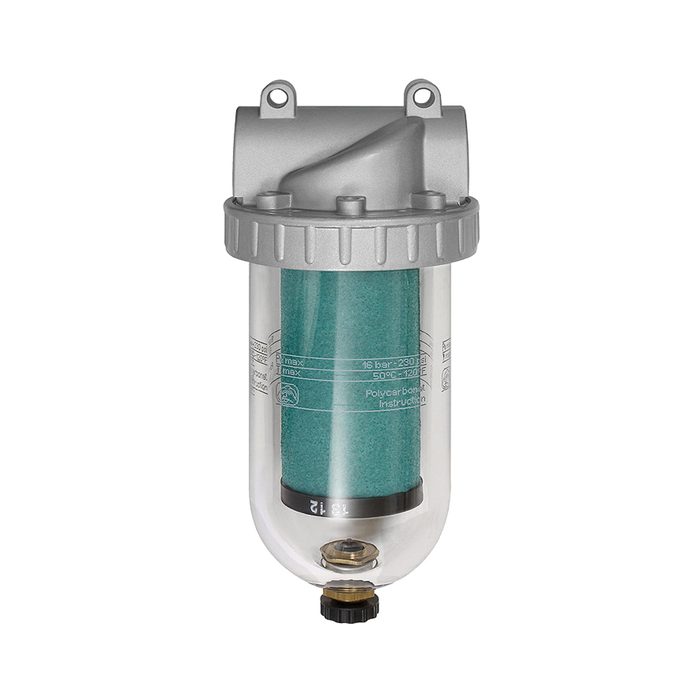

![[100989] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 1, G 3/8](/web/image/product.template/140425/image_128/%5B100989%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=6ded0ad)
|
Type number: 674 K-HA |
59.23 € | |

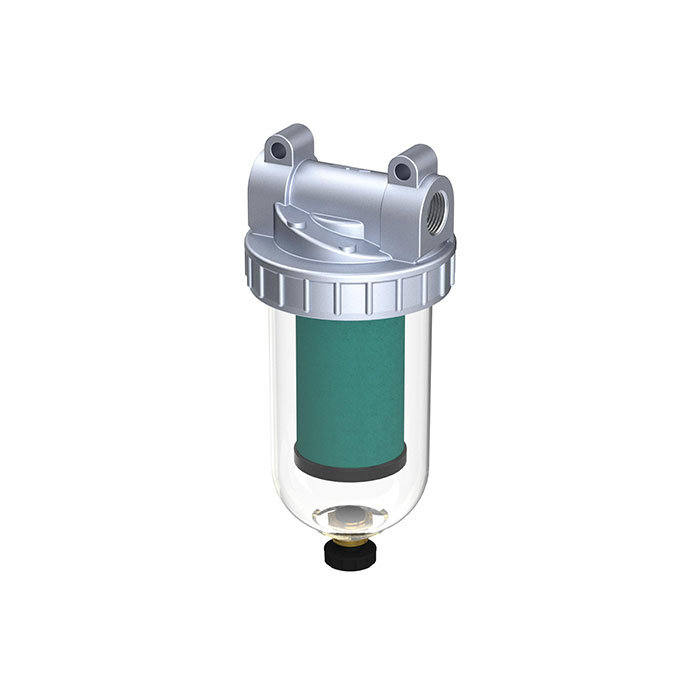

![[100990] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 2, G 3/8](/web/image/product.template/140426/image_128/%5B100990%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%203-8?unique=9d937f4)
|
Type number: 675 K-HA |
64.39 € | |
![[100993] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 4, G 1](/web/image/product.template/140429/image_128/%5B100993%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%204%2C%20G%201?unique=89d8ed8)
|
Type number: 696 K |
215.51 € | |

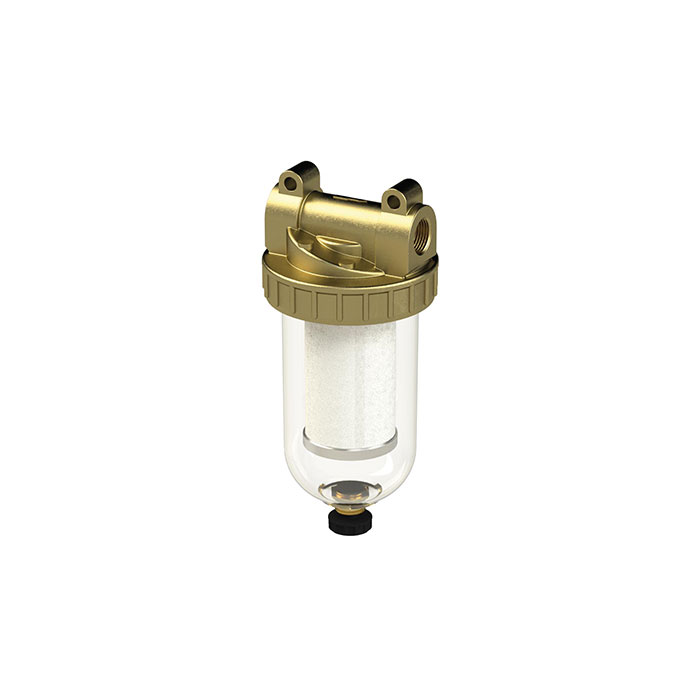

![[100992] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 4, G 3/4](/web/image/product.template/140428/image_128/%5B100992%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%204%2C%20G%203-4?unique=dfc96ec)
|
Type number: 695 K |
202.00 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=279a66d)
|
Type number: SK 03 |
24.20 € | |
![[100951] RIEGLER Metal container, for filter regulator and filter »Standard«](/web/image/product.template/140387/image_128/%5B100951%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20and%20filter%20%C2%BBStandard%C2%AB?unique=7339ac4)
|
Type number: 650/12 |
26.82 € | |
![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=4c50743)
|
Type number: H 801 |
4.83 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

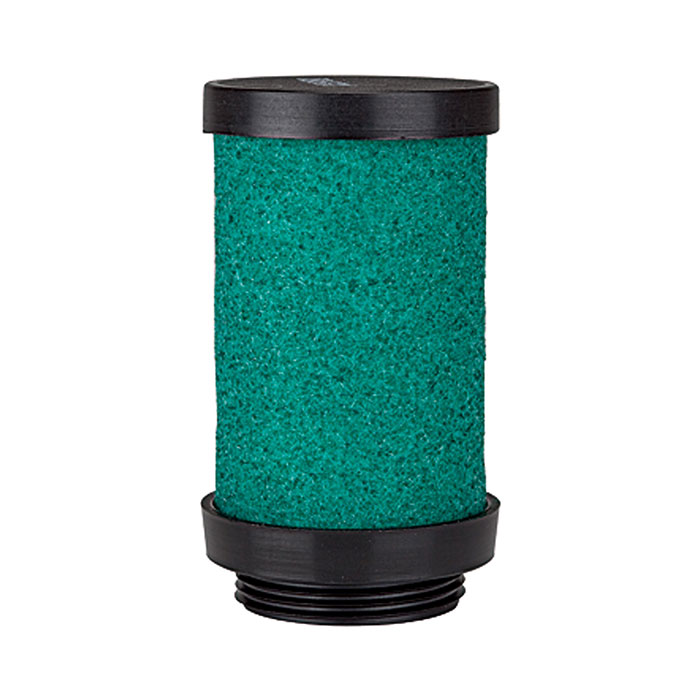

![[101008] RIEGLER Filter element 0.01 µm, Borosilicate-Aluminium](/web/image/product.template/140444/image_128/%5B101008%5D%20RIEGLER%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate-Aluminium?unique=c759288)
|
Type number: 360/3 |
40.81 € | |
![[100950] RIEGLER Polycarbonate container, for filter regulator / filter »Standard«](/web/image/product.template/140386/image_128/%5B100950%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB?unique=1d562ec)
|
Type number: 650/2-HA |
18.75 € | |
