RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 4, G 1
Type number: 696 K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Special "Standard" filter made of die-cast zinc, painted silver, for compressed air treatment - Type 696 K
The RIEGLER special filter "Standard", with PC container, 0.01 µm, BG 4, G 1 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc, painted silver. The maximum inlet pressure is 16 bar. The permissible medium temperature is between 0 °C and 50 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 7000 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 0.01 µm, container made of polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Efficiency | 999.99 |
| Thread | G 1 |
| Flow rate | 7000 l/min |
| Condensate drain | manually |
| DN | 25 |
| BG | 4 |
| A | 133 mm |
| C | 36 mm |
| D | 206 mm |
| H | 120 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100988] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 1, G 1/4](/web/image/product.template/140424/image_128/%5B100988%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=2ea721e)
|
Type number: 673 K-HA |
44.61 € | |
![[100989] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 1, G 3/8](/web/image/product.template/140425/image_128/%5B100989%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=49bd356)
|
Type number: 674 K-HA |
58.26 € | |

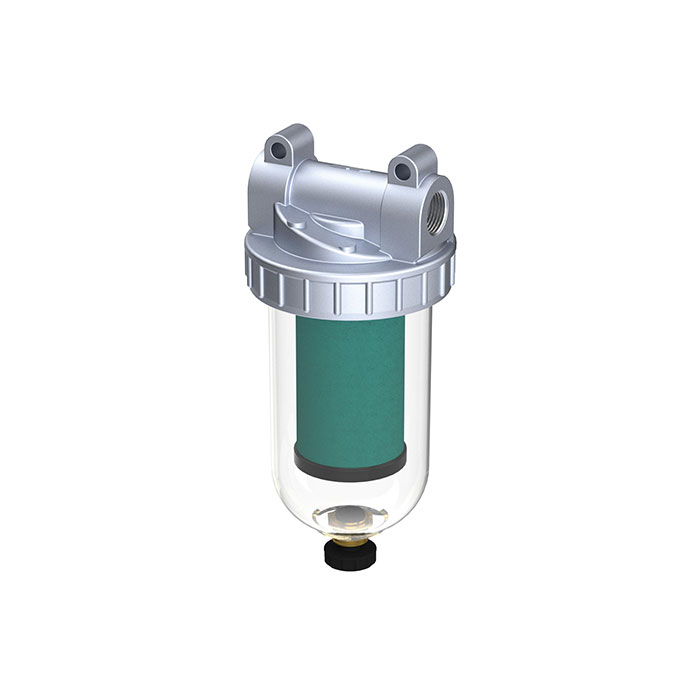

![[100990] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 2, G 3/8](/web/image/product.template/140426/image_128/%5B100990%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%203-8?unique=508918d)
|
Type number: 675 K-HA |
63.34 € | |

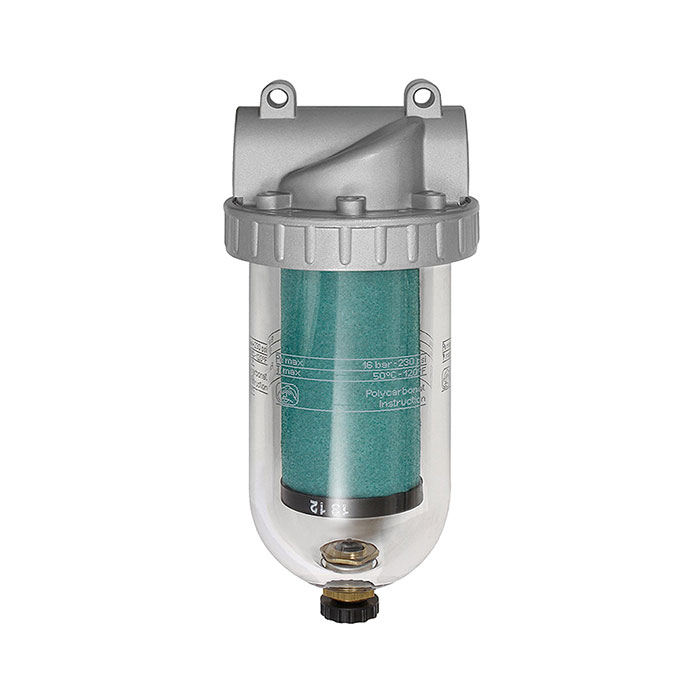

![[100991] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 3, G 1/2](/web/image/product.template/140427/image_128/%5B100991%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=68e0f12)
|
Type number: 685 K-HA |
86.92 € | |

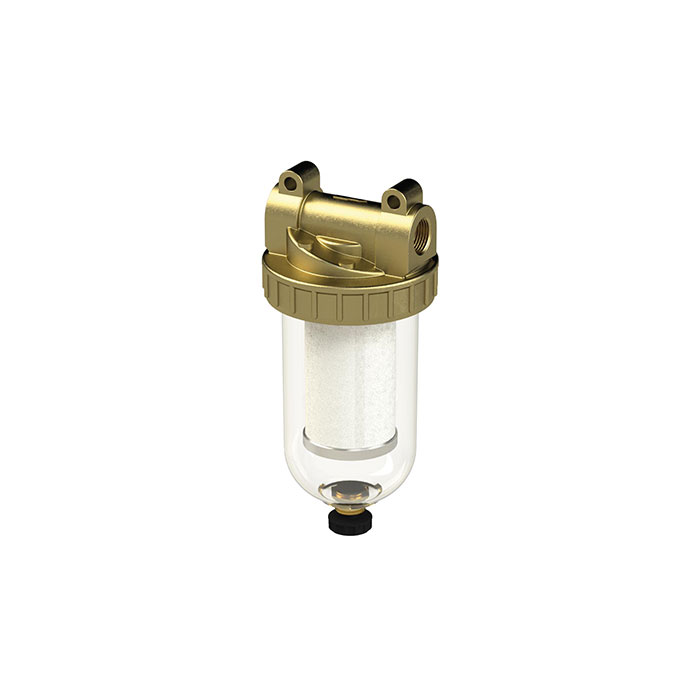

![[100992] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 4, G 3/4](/web/image/product.template/140428/image_128/%5B100992%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%204%2C%20G%203-4?unique=2a07c67)
|
