RIEGLER Mist oiler »Standard« with Metal container, Size 3, G 1/2
Type number: 760 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Mist lubricator "Standard" with metal container and metal drip cap, BG 3, G 1/2, PE max. 25 bar, max. ambient temperature 60 °C
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Dropper attachment | Zinc-glass-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 4000 l/min |
| DN | 15 |
| BG | 3 |
| A | 79 mm |
| C | 55 mm |
| D | 157 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101030] RIEGLER Mist oiler »Standard« with Metal container, Size 1, G 1/4](/web/image/product.template/140466/image_128/%5B101030%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=150b6ac)
|
Type number: 745 M |
57.16 € | |
![[101031] RIEGLER Mist oiler »Standard« with Metal container, Size 1, G 3/8](/web/image/product.template/140467/image_128/%5B101031%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=bbece49)
|
Type number: 748 M |
57.16 € | |
![[101032] RIEGLER Mist oiler »Standard« with Metal container, Size 2, G 3/8](/web/image/product.template/140468/image_128/%5B101032%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%202%2C%20G%203-8?unique=1c43716)
|
Type number: 750 M |
75.86 € | |

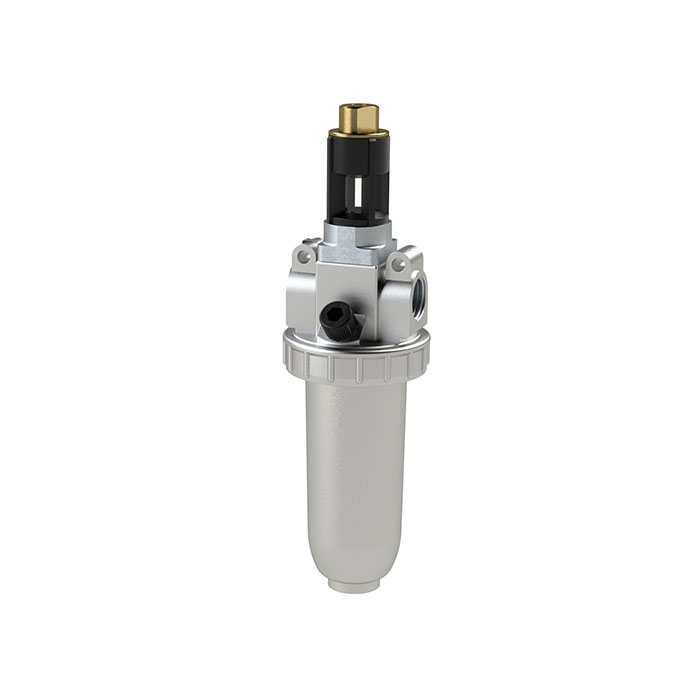

![[101035] RIEGLER Mist oiler »Standard« with Metal container, Size 3, G 1](/web/image/product.template/140471/image_128/%5B101035%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%203%2C%20G%201?unique=c93a680)
|
