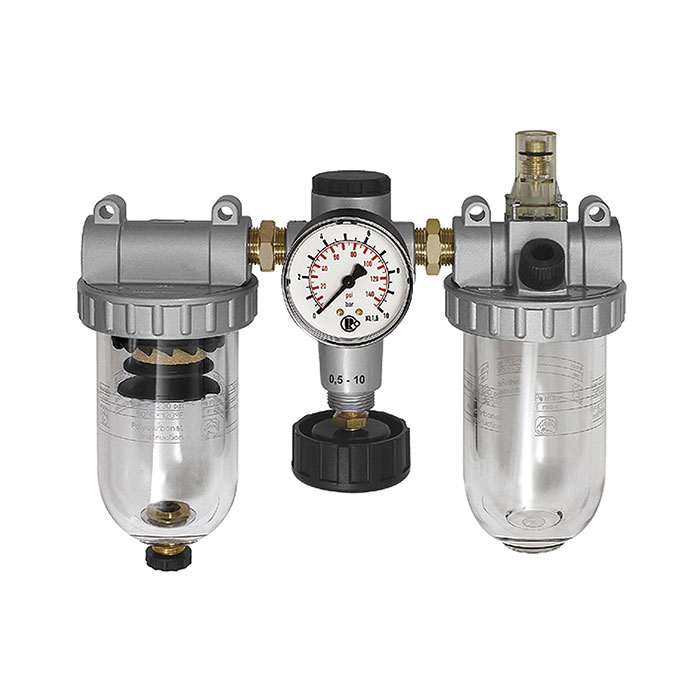

RIEGLER Service unit 3-part »Standard« with PC container, Size 3, G 1
Type number: 850 E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "Standard" maintenance unit made of die-cast zinc / aluminum, painted silver - Type 850 E
The RIEGLER maintenance unit 3-piece "Standard", with PC container, BG 3, G 1 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc / aluminum, painted silver with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 3200 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, tank made of polycarbonate container. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc / aluminum, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container |
| Filter fineness | 5 µm |
| Dropper attachment | PA |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 |
| Flow rate | 3200 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 25 |
| Pressure gauge Ø | 63 mm |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 302 mm |
| B | 227.9 mm |
| C | 58 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

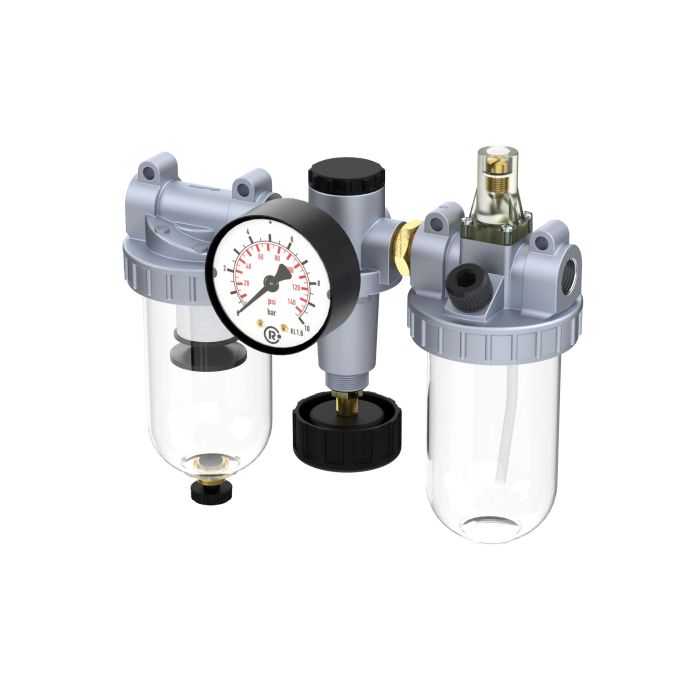

![[206302] RIEGLER 3-piece "Standard" maintenance unit, with PC container, BG 2, G 3/8](/web/image/product.template/267808/image_128/%5B206302%5D%20RIEGLER%203-piece%20%22Standard%22%20maintenance%20unit%2C%20with%20PC%20container%2C%20BG%202%2C%20G%203-8?unique=e98d801)
|
Typennummer: 850 B.2 |
123.75 € | |
![[101064] RIEGLER Service unit 3-part »Standard« with PC container, Size 1, G 1/4](/web/image/product.template/140500/image_128/%5B101064%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=7ed194b)
|
Type number: 845 B |
86.39 € | |
![[101065] RIEGLER Service unit 3-part »Standard« with PC container, Size 1, G 3/8](/web/image/product.template/140501/image_128/%5B101065%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=cbf8aa7)
|
Type number: 847 K |
86.39 € | |
![[101067] RIEGLER Service unit 3-part »Standard« with PC container, Size 3, G 1/2](/web/image/product.template/140503/image_128/%5B101067%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%203%2C%20G%201-2?unique=58a4cf4)
|
Type number: 850 C |
142.18 € | |
![[101068] RIEGLER Service unit 3-part »Standard« with PC container, Size 3, G 3/4](/web/image/product.template/140504/image_128/%5B101068%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%203%2C%20G%203-4?unique=7d903c1)
|
Type number: 850 D |
292.74 € | |

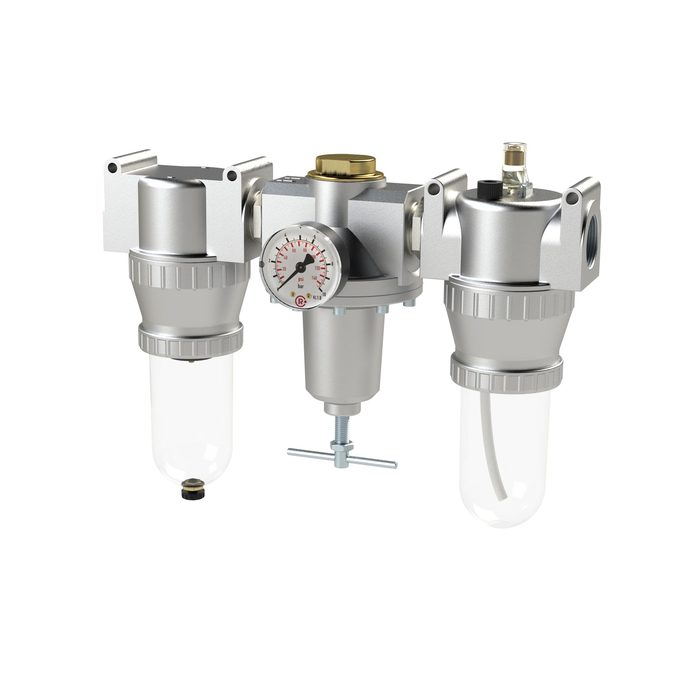

![[101071] RIEGLER Service unit 3-part »Standard« with PC container, Size 4, G 1 1/2](/web/image/product.template/140507/image_128/%5B101071%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%204%2C%20G%201%201-2?unique=f358e8b)
|
Type number: 850 H |
597.90 € | |
![[101070] RIEGLER Service unit 3-part »Standard« with PC container, Size 4, G 1 1/4](/web/image/product.template/140506/image_128/%5B101070%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%204%2C%20G%201%201-4?unique=efee49e)
|
Type number: 850 F |
634.73 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=3ba54a4)
|
Type number: 218-KD |
6.25 € | |

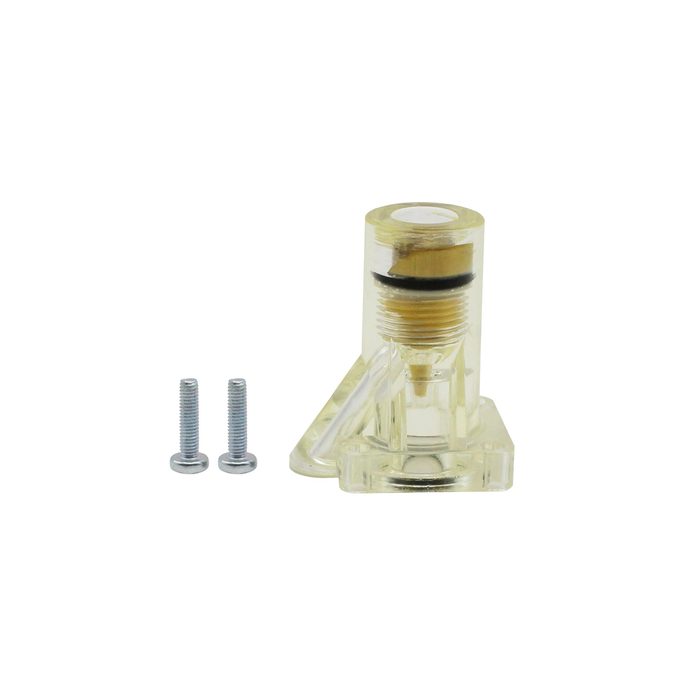

![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=8f00408)
|
Type number: 760.7.990 |
7.03 € | |
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=c07d854)
|
Type number: 633.6.905 |
13.89 € | |

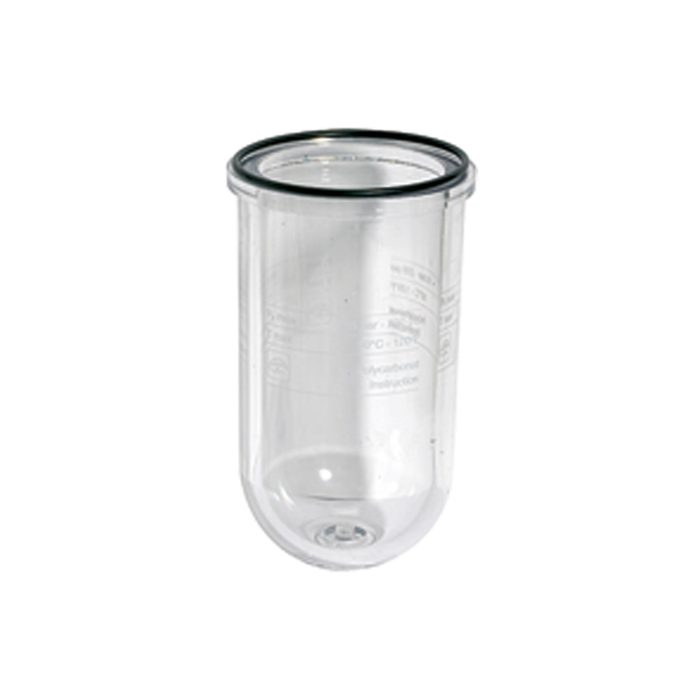

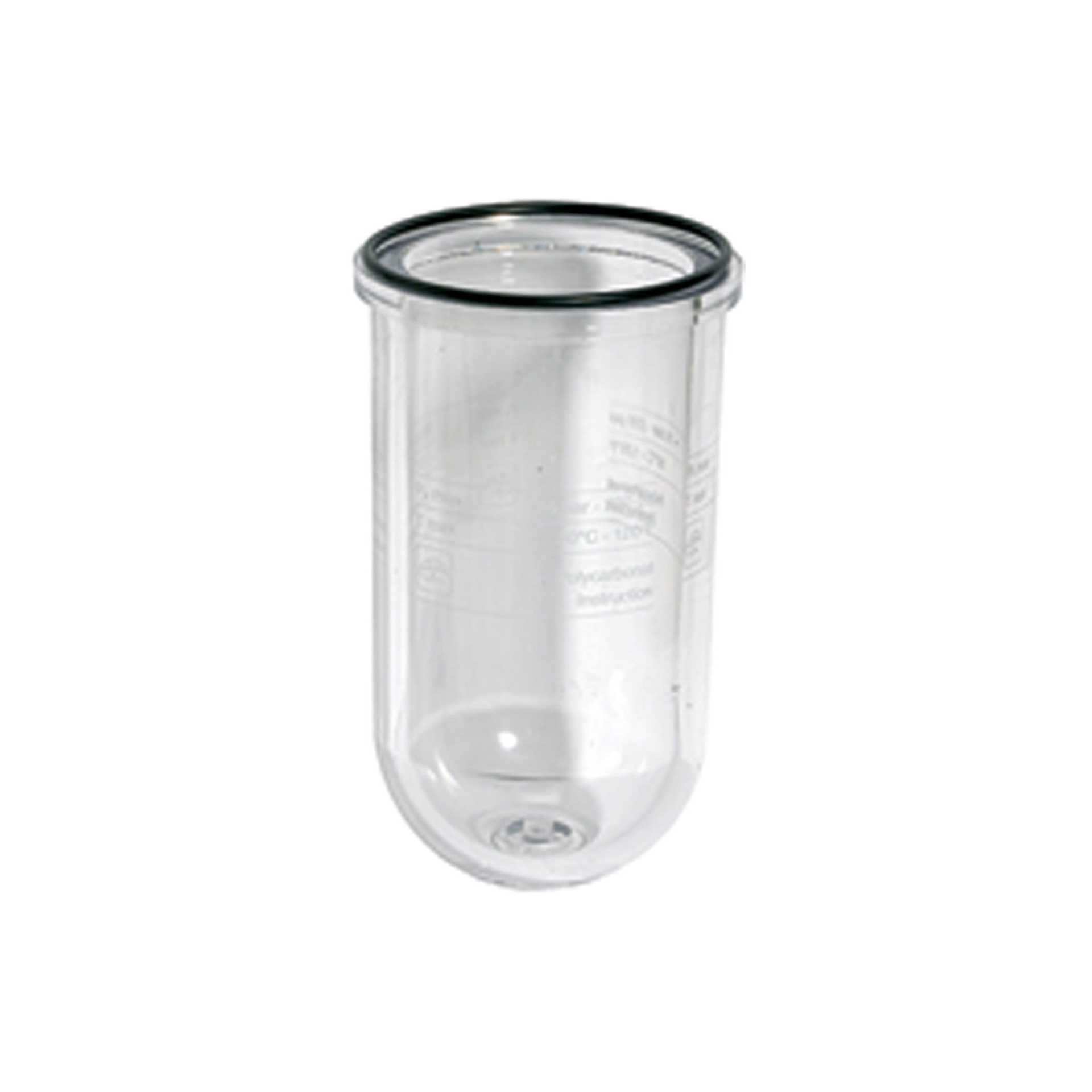

![[101044] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140480/image_128/%5B101044%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=51cfb3f)
|
Type number: 740/04 |
14.52 € | |
![[100950] RIEGLER Polycarbonate container, for filter regulator / filter »Standard«](/web/image/product.template/140386/image_128/%5B100950%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB?unique=08b98cf)
|
Type number: 650/2-HA |
18.58 € | |

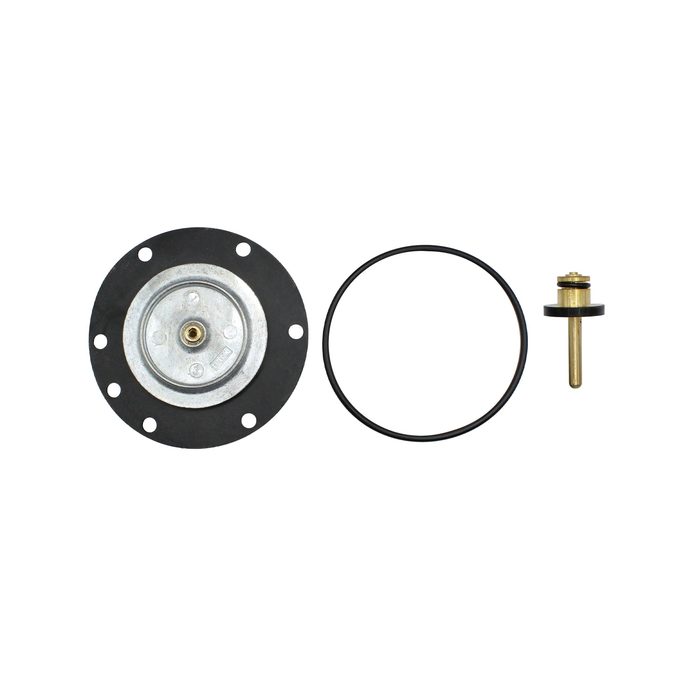

![[100841] RIEGLER Wear part set, for pressure regulator »Standard«, Size 3](/web/image/product.template/140278/image_128/%5B100841%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=f19ed6e)
|
