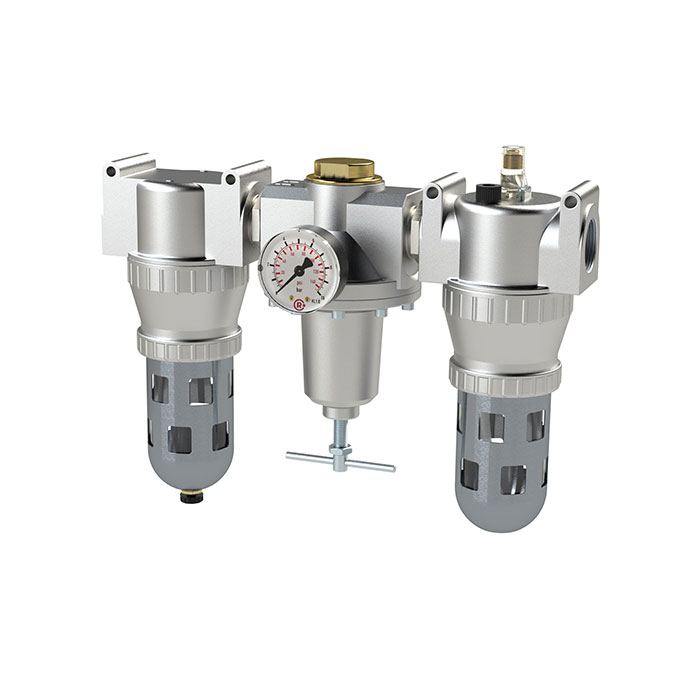

RIEGLER Service unit 3-part »Standard«, Protective cage, Size 4, G 1 1/4
Type number: 850 F/S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "Standard" PC maintenance unit made of die-cast zinc / aluminum, painted silver - Type 850 F/S
The RIEGLER 3-piece "Standard" maintenance unit with PC fitting, protective cage, BG4, G11/4 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc / aluminum, painted silver with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 1/4 - suitable for common industry standards. The flow rate is 5000 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, polycarbonate container with protective cage. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc / aluminum, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 1/4 |
| Flow rate | 5000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 25 |
| Pressure gauge Ø | 63 mm |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 4 |
| A | 395 mm |
| B | 313.4 mm |
| C | 70 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

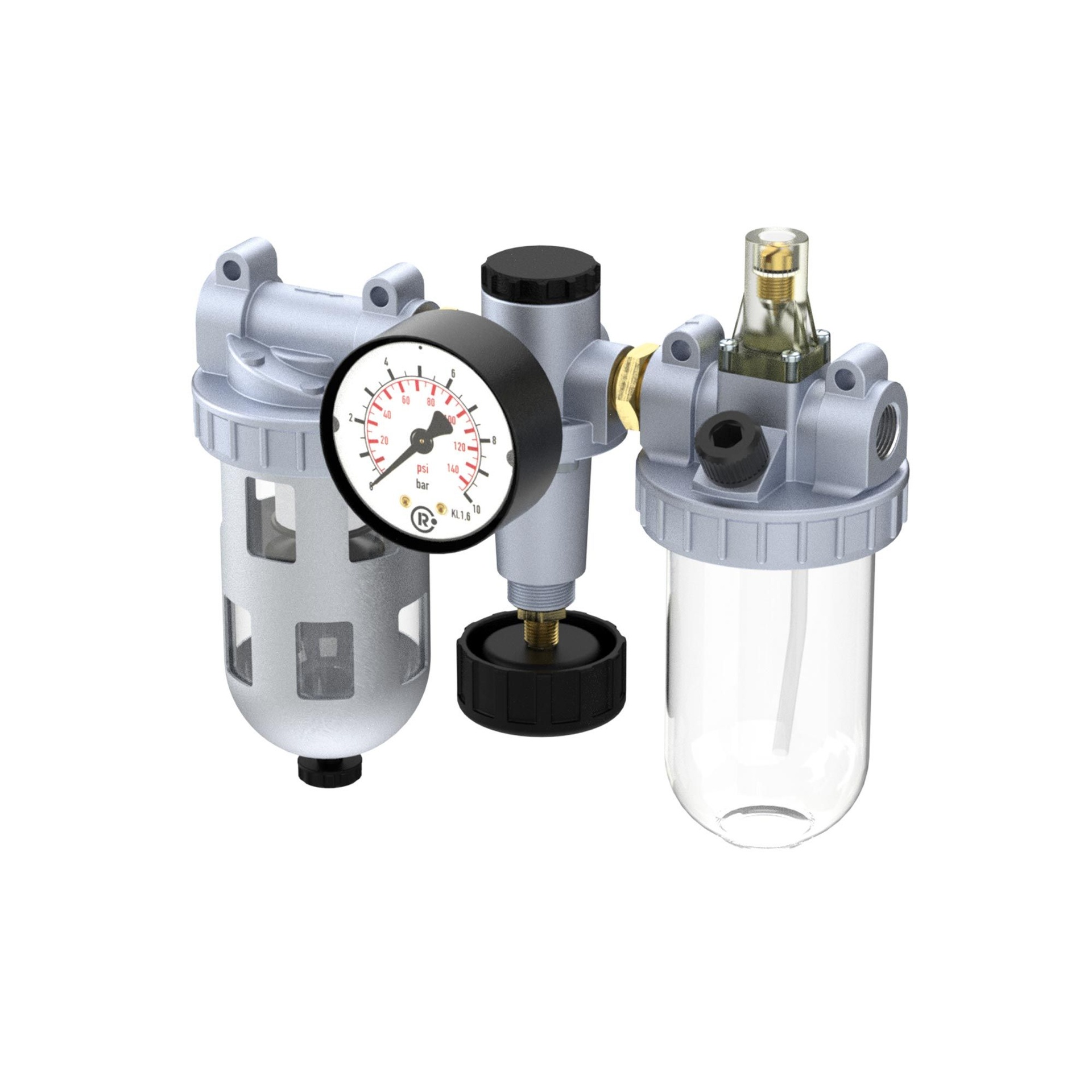

![[206303] RIEGLER Maintenance unit, 3-piece "Standard", PC fitting, predective cage, BG2, G3/8](/web/image/product.template/267881/image_128/%5B206303%5D%20RIEGLER%20Maintenance%20unit%2C%203-piece%20%22Standard%22%2C%20PC%20fitting%2C%20predective%20cage%2C%20BG2%2C%20G3-8?unique=c9f6bf5)
|
Typennummer: 850 B/S.2 |
160.79 € | |
![[101072] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 1, G 1/4](/web/image/product.template/140508/image_128/%5B101072%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=2d41549)
|
Type number: 845 B/S |
112.85 € | |
![[101073] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 1, G 3/8](/web/image/product.template/140509/image_128/%5B101073%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=308b697)
|
Type number: 847 K/S |
112.85 € | |
![[101077] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 3, G 1](/web/image/product.template/140513/image_128/%5B101077%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%201?unique=8448be4)
|
Type number: 850 E/S |
335.59 € | |

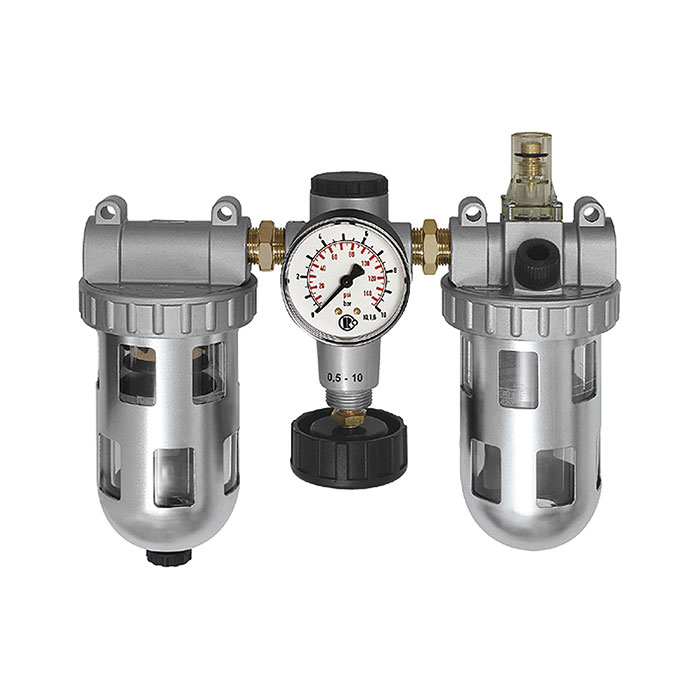

![[101075] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 3, G 1/2](/web/image/product.template/140511/image_128/%5B101075%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%201-2?unique=41f8be7)
|
Type number: 850 C/S |
181.42 € | |
![[101076] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 3, G 3/4](/web/image/product.template/140512/image_128/%5B101076%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%203-4?unique=8d3940b)
|
Type number: 850 D/S |
335.59 € | |
![[101079] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 4, G 1 1/2](/web/image/product.template/140515/image_128/%5B101079%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%201%201-2?unique=8faaa9f)
|
Type number: 850 H/S |
634.88 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=83510c9)
|
Type number: 32 |
34.09 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=16b9c4b)
|
Type number: 655.6.900 |
36.35 € | |

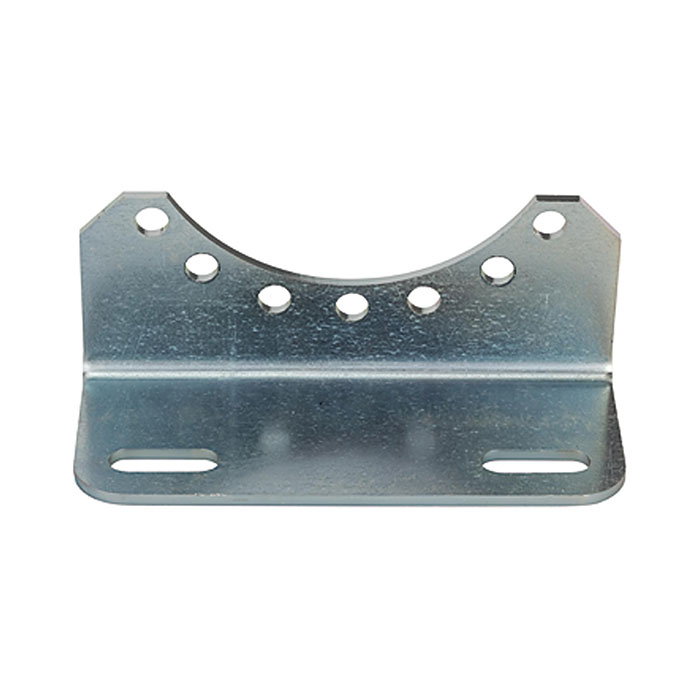

![[100845] RIEGLER Mounting bracket](/web/image/product.template/140282/image_128/%5B100845%5D%20RIEGLER%20Mounting%20bracket?unique=d4038cf)
|
Type number: H 86 |
9.47 € | |

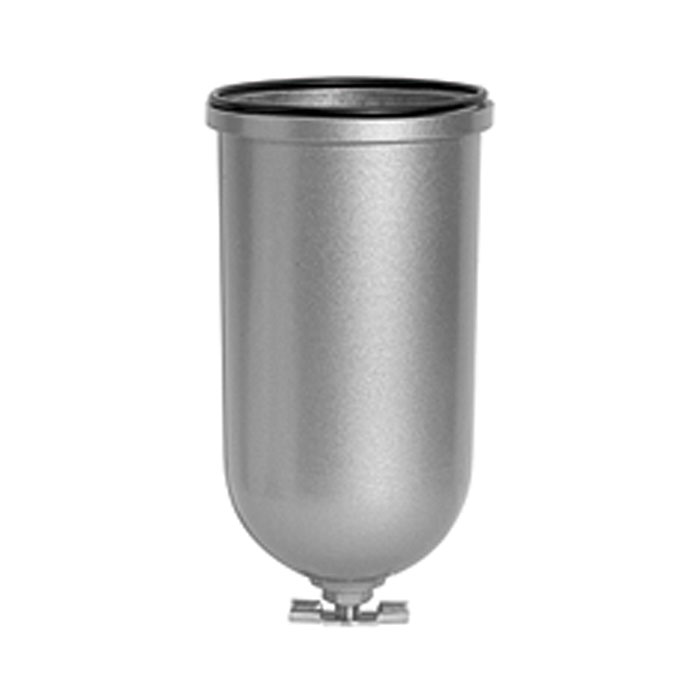

![[100951] RIEGLER Metal container, for filter regulator and filter »Standard«](/web/image/product.template/140387/image_128/%5B100951%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20and%20filter%20%C2%BBStandard%C2%AB?unique=699fd89)
|
Type number: 650/12 |
26.56 € | |
![[101043] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140479/image_128/%5B101043%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=6522d56)
|
Type number: 740/14 |
23.98 € | |
![[101045] RIEGLER Drip cap metal](/web/image/product.template/140481/image_128/%5B101045%5D%20RIEGLER%20Drip%20cap%20metal?unique=f2fcc93)
|
Type number: 760.7.994 |
34.12 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=3ba54a4)
|
Type number: 218-KD |
6.25 € | |
![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=8f00408)
|
Type number: 760.7.990 |
7.03 € | |

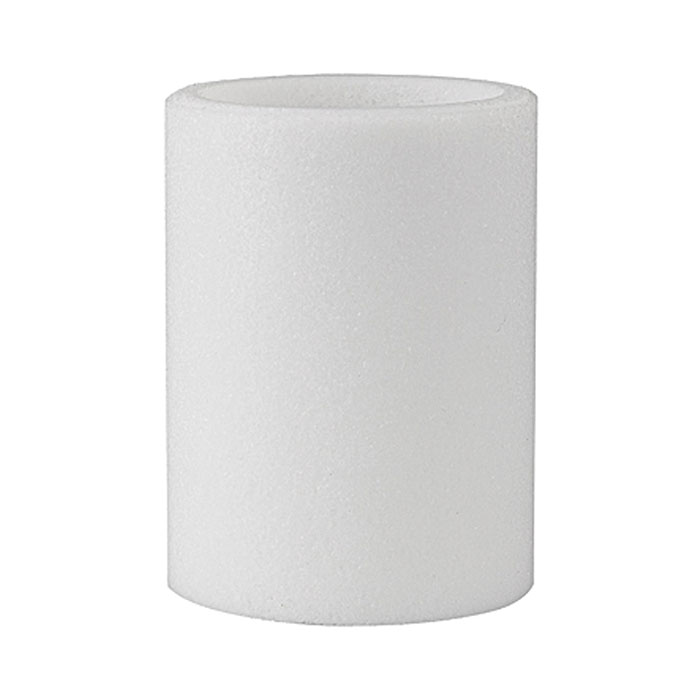

![[100511] RIEGLER Filter element 40 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139946/image_128/%5B100511%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=773f0cd)
|
Type number: 655.6.940 |
21.00 € | |
![[101044] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140480/image_128/%5B101044%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=51cfb3f)
|
Type number: 740/04 |
14.52 € | |
![[100950] RIEGLER Polycarbonate container, for filter regulator / filter »Standard«](/web/image/product.template/140386/image_128/%5B100950%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB?unique=08b98cf)
|
Type number: 650/2-HA |
18.58 € | |
![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=1859b8f)
|
Type number: SK 03 |
23.98 € | |

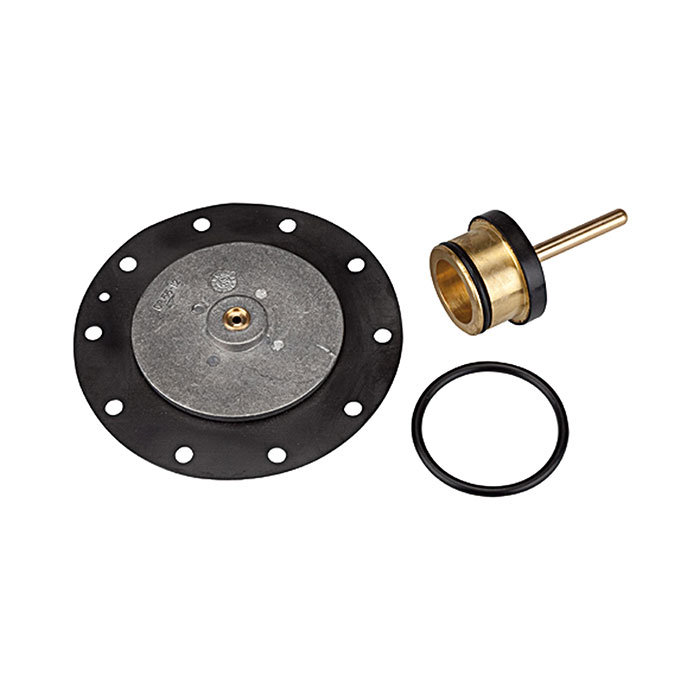

![[100846] RIEGLER Wear part set, for pressure regulator »Standard«, Size 4](/web/image/product.template/140283/image_128/%5B100846%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20%C2%BBStandard%C2%AB%2C%20Size%204?unique=9cf6944)
|
