RIEGLER Maintenance unit, 3-piece "Standard", PC fitting, predective cage, BG2, G3/8
Typennummer: 850 B/S.2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "Standard" maintenance unit made of die-cast zinc / aluminum, painted silver - Type 850 B/S.2
The RIEGLER 3-piece "Standard" maintenance unit, PC fitting, protective cage, BG2, G3/8 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc / aluminum, painted silver with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. Filter fineness 5 µm, polycarbonate container with protective cage. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| A | 232 mm |
| B | 196.7 mm |
| Container | Polycarbonate container with protective cage |
| BG | 2 |
| C | 51 mm |
| Sealing material | NBR |
| DN | 6 |
| Flow 1 | 1400 l/min |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Inlet pressure max. | 16 bar |
| Filter fineness | 5 µm |
| Housing | Die-cast zinc / aluminum, painted silver |
| Thread | G 3/8 |
| Class name | EASY |
| Condensate drain | semi-automatic |
| Pressure gauge Ø | 50 mm |
| Pressure gauge display max. | 16 bar |
| Pressure gauge display min. | 0 bar |
| Medium temperature max. | 60 °C |
| Medium temperature min. | -10 °C |
| Control range max. | 10 bar |
| Control range min. | 0.5 bar |
| Series | Standard |
| Dropper attachment | PA |
| Ambient temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101072] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 1, G 1/4](/web/image/product.template/140508/image_128/%5B101072%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=2d41549)
|
Type number: 845 B/S |
112.85 € | |

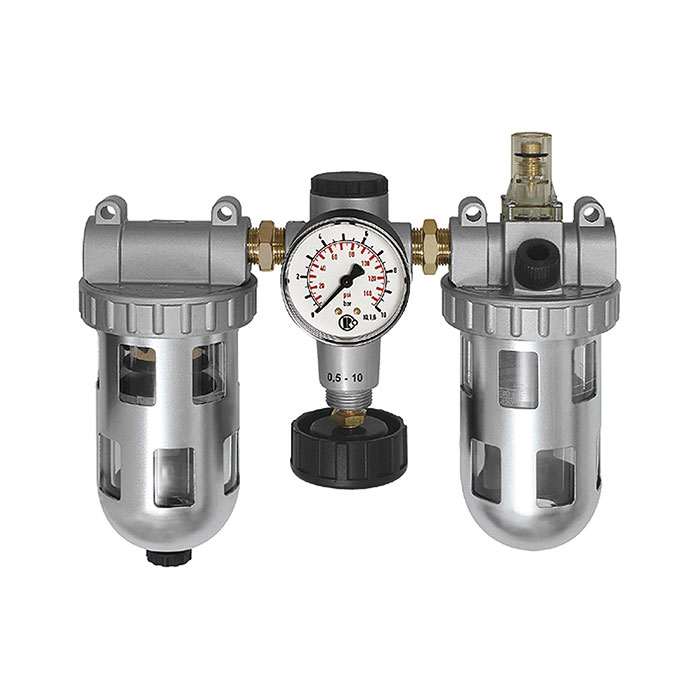

![[101073] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 1, G 3/8](/web/image/product.template/140509/image_128/%5B101073%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=308b697)
|
Type number: 847 K/S |
112.85 € | |
![[101077] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 3, G 1](/web/image/product.template/140513/image_128/%5B101077%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%201?unique=8448be4)
|
Type number: 850 E/S |
335.59 € | |
![[101075] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 3, G 1/2](/web/image/product.template/140511/image_128/%5B101075%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%201-2?unique=41f8be7)
|
Type number: 850 C/S |
181.42 € | |
![[101076] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 3, G 3/4](/web/image/product.template/140512/image_128/%5B101076%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%203-4?unique=8d3940b)
|
Type number: 850 D/S |
335.59 € | |

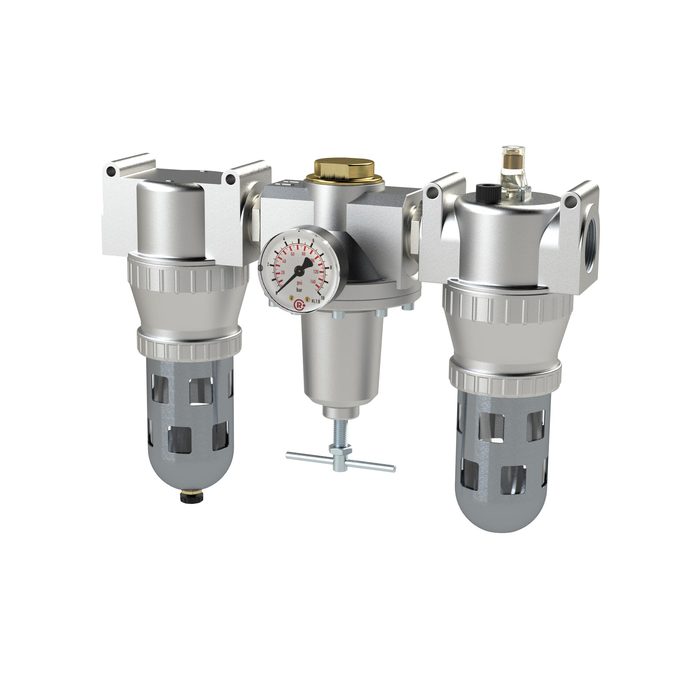

![[101079] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 4, G 1 1/2](/web/image/product.template/140515/image_128/%5B101079%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%201%201-2?unique=8faaa9f)
|
Type number: 850 H/S |
634.88 € | |
![[101078] RIEGLER Service unit 3-part »Standard«, Protective cage, Size 4, G 1 1/4](/web/image/product.template/140514/image_128/%5B101078%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%201%201-4?unique=e77453d)
|
Type number: 850 F/S |
666.16 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=83510c9)
|
Type number: 32 |
34.09 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=16b9c4b)
|
Type number: 655.6.900 |
36.35 € | |
![[100795] RIEGLER Drip cap metal](/web/image/product.template/140231/image_128/%5B100795%5D%20RIEGLER%20Drip%20cap%20metal?unique=e986bd0)
|
Type number: 760.7.992 |
31.57 € | |
![[100796] RIEGLER Adapter for mounting metal drip cap](/web/image/product.template/140232/image_128/%5B100796%5D%20RIEGLER%20Adapter%20for%20mounting%20metal%20drip%20cap?unique=551b673)
|
Type number: 760.7.1135 |
10.95 € | |
![[100947] RIEGLER Metal container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140383/image_128/%5B100947%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=b9cc90f)
|
Type number: 650/11 |
26.33 € | |
![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=a463711)
|
Type number: H 801 |
4.80 € | |

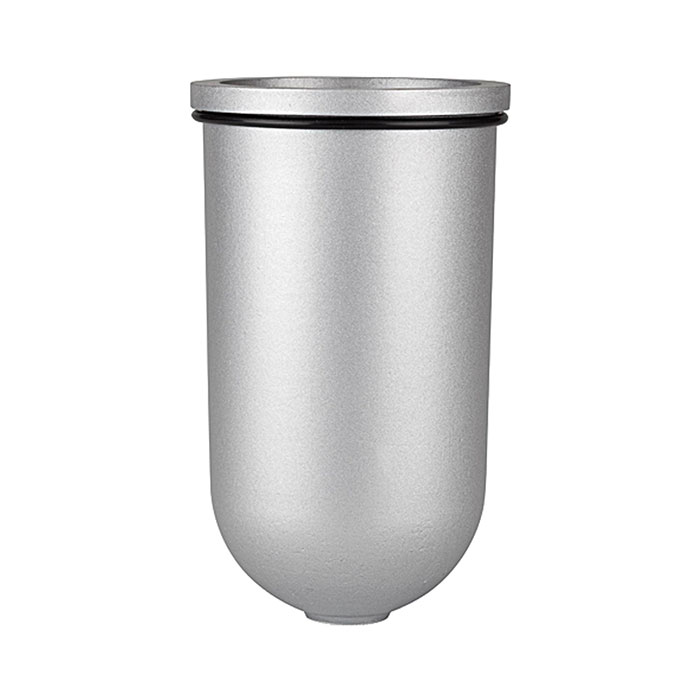

![[101041] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 2](/web/image/product.template/140477/image_128/%5B101041%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=82819d0)
|
Type number: 740/13 |
21.18 € | |

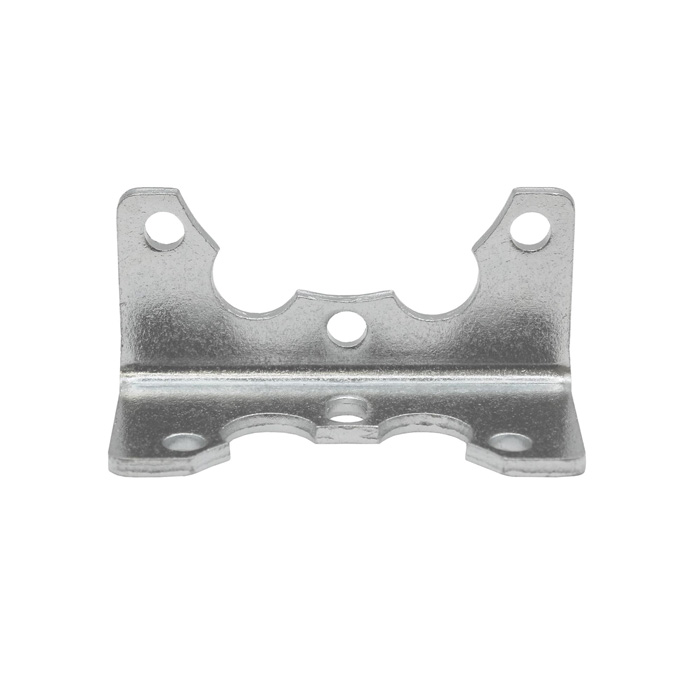

![[145770] RIEGLER Mounting kit, mounting bracket, for "Standard", BG 2, up to G 1/2](/web/image/product.template/279359/image_128/%5B145770%5D%20RIEGLER%20Mounting%20kit%2C%20mounting%20bracket%2C%20for%20%22Standard%22%2C%20BG%202%2C%20up%20to%20G%201-2?unique=caa1259)
|
Type number: H 83 |
5.46 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=3ba54a4)
|
Type number: 218-KD |
6.25 € | |
![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=8f00408)
|
Type number: 760.7.990 |
7.03 € | |
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=c07d854)
|
Type number: 633.6.905 |
13.89 € | |

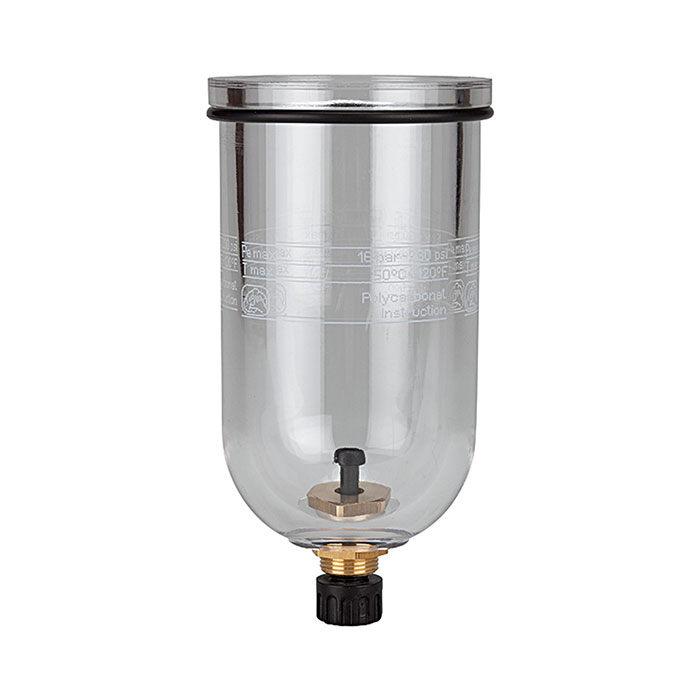

![[100946] RIEGLER PC container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140382/image_128/%5B100946%5D%20RIEGLER%20PC%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=4b8ebd7)
|
Type number: 650/1-HA |
18.58 € | |

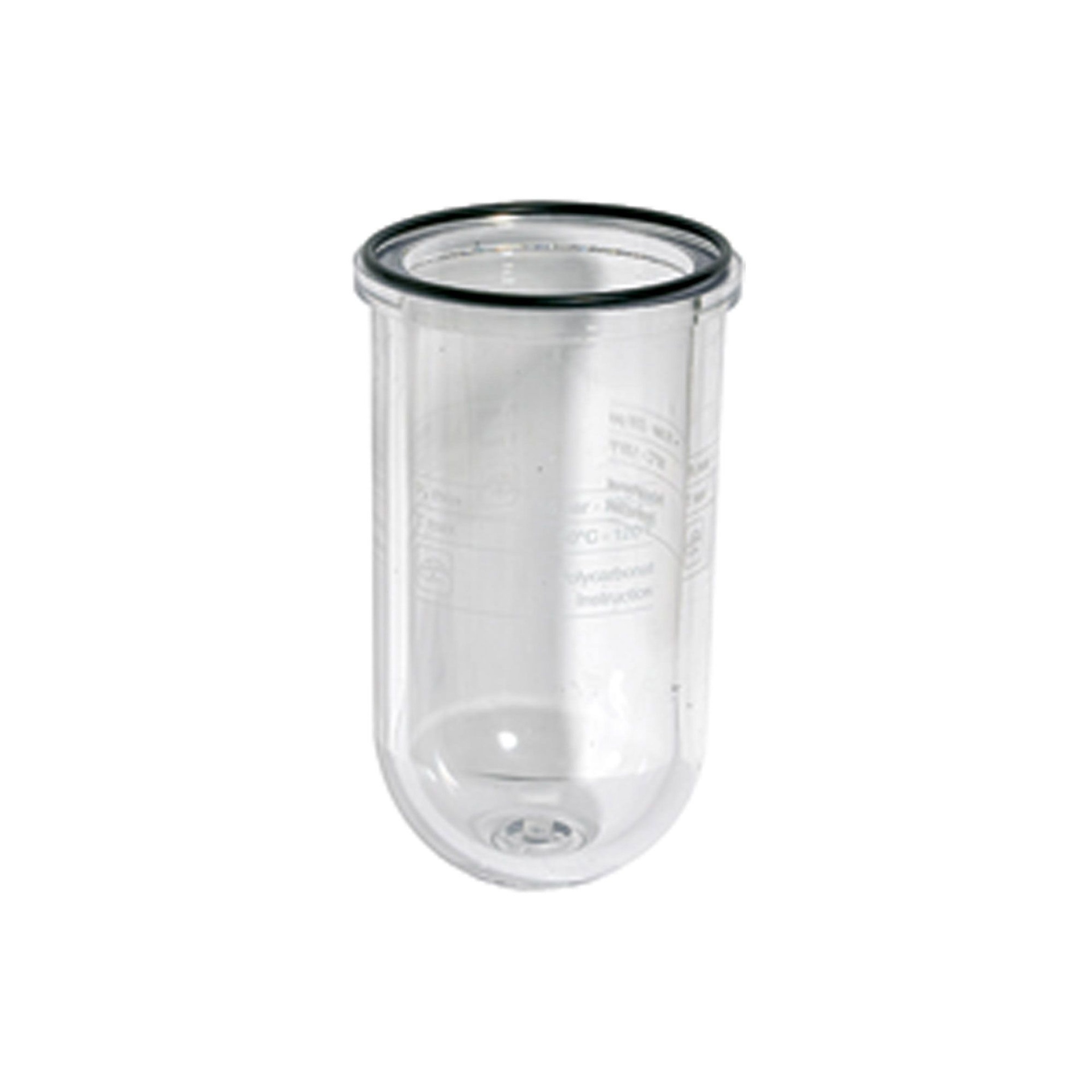

![[101042] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 2](/web/image/product.template/140478/image_128/%5B101042%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=c3fe42f)
|
Type number: 740/03 |
11.71 € | |
![[100944] RIEGLER Protective cage, for series »Standard«, Size 2, G 3/8](/web/image/product.template/140380/image_128/%5B100944%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%202%2C%20G%203-8?unique=996854b)
|
Type number: SK 02 |
20.37 € | |

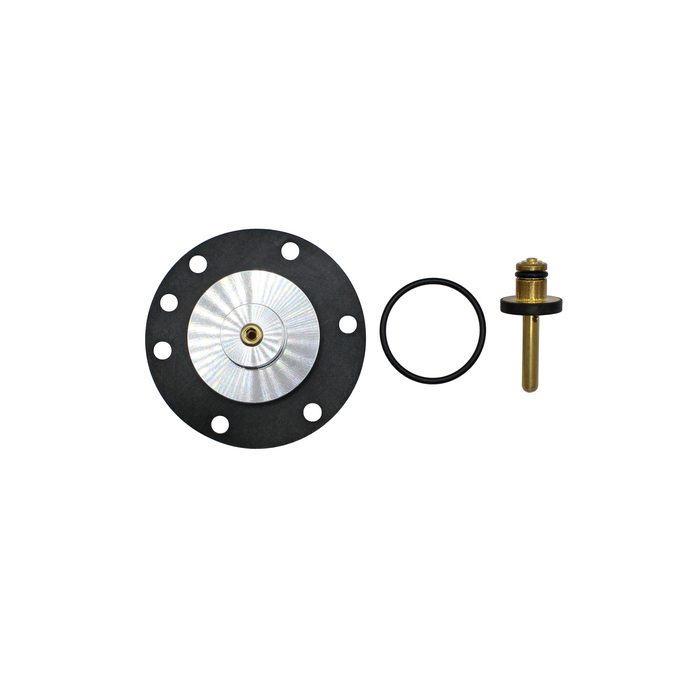

![[100837] RIEGLER Wear part set, for pressure regulator »Standard«, Size 2](/web/image/product.template/140273/image_128/%5B100837%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=c3775fb)
|
