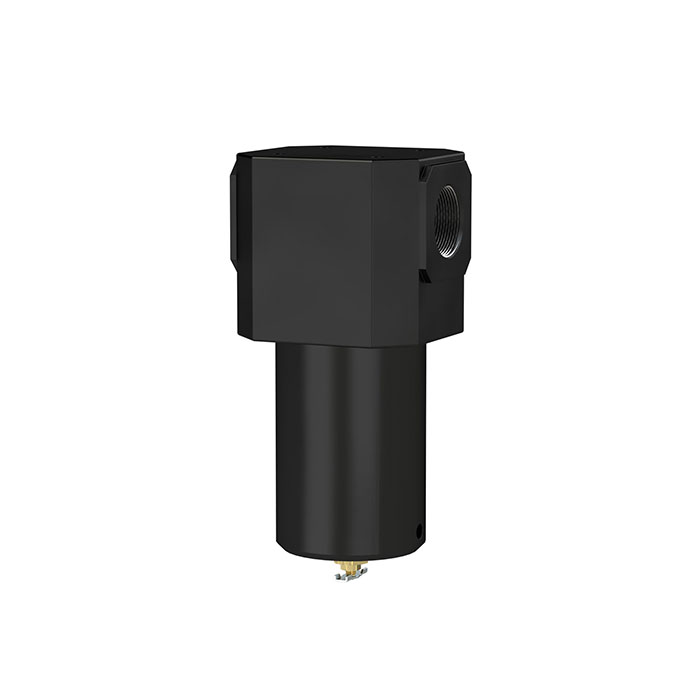

RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 2
Type number: 680.27
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter for high pressures up to 40 bar, with manual drain valve, 40 µm, G 2, aluminum condensate container, max. medium temp. 90 °C
| Inlet pressure max. | 40 bar |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Container | Aluminum |
| Filter fineness | 40 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 90 °C |
| Thread | G 2 |
| Flow rate | 20000 l/min |
| Condensate drain | Manual drain valve |
| A | 140 mm |
| B | 284 mm |
| C | 42.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101163] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 1](/web/image/product.template/140599/image_128/%5B101163%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%201?unique=4895eda)
|
Type number: 680.24 |
232.95 € | |
![[101164] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 1 1/2](/web/image/product.template/140600/image_128/%5B101164%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%201%201-2?unique=2bec61a)
|
Type number: 680.26 |
852.29 € | |

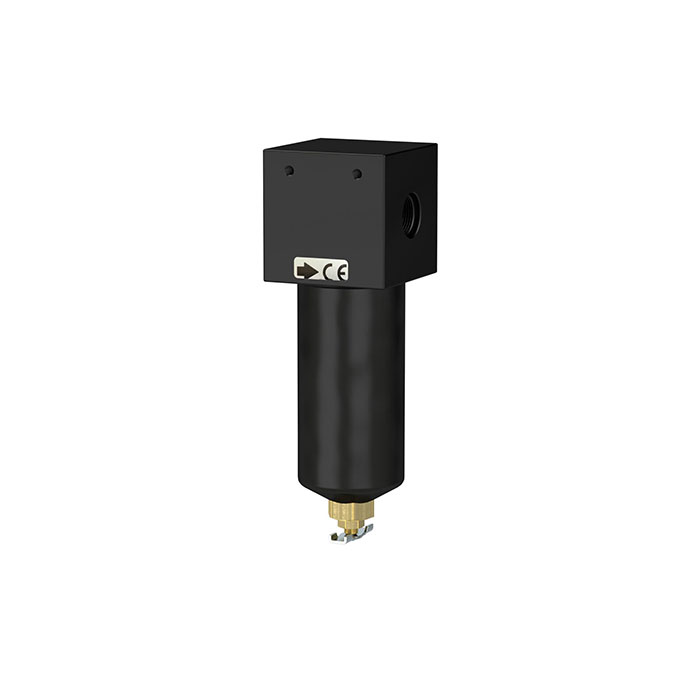

![[101161] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 1/2](/web/image/product.template/140597/image_128/%5B101161%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%201-2?unique=01b33e4)
|
Type number: 680.22 |
197.39 € | |
![[101162] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 3/4](/web/image/product.template/140598/image_128/%5B101162%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%203-4?unique=1703935)
|
Type number: 680.23 |
178.69 € | |
![[101160] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 3/8](/web/image/product.template/140596/image_128/%5B101160%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%203-8?unique=42deba2)
|
Type number: 680.21 |
165.21 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

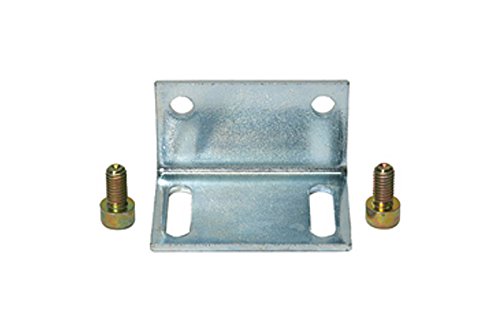

![[101170] RIEGLER Mounting set with 2 screws for G 1 to G 2](/web/image/product.template/140606/image_128/%5B101170%5D%20RIEGLER%20Mounting%20set%20with%202%20screws%20for%20G%201%20to%20G%202?unique=5a8fcee)
|
Type number: 429/27 |
11.02 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

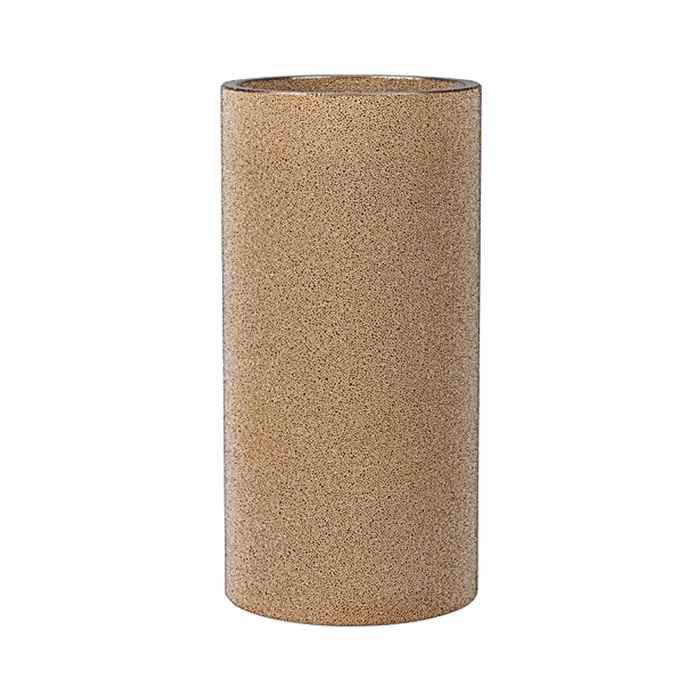

![[101171] RIEGLER Filter element 40 µm, Sintered bronze](/web/image/product.template/140607/image_128/%5B101171%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20Sintered%20bronze?unique=2316ce8)
|
Type number: 687.6.050 |
75.45 € | |
![[101172] RIEGLER Metal container complete, with manual bleeder valve and O-ring](/web/image/product.template/140608/image_128/%5B101172%5D%20RIEGLER%20Metal%20container%20complete%2C%20with%20manual%20bleeder%20valve%20and%20O-ring?unique=7a38520)
|
Type number: 680/15 |
453.35 € | |
