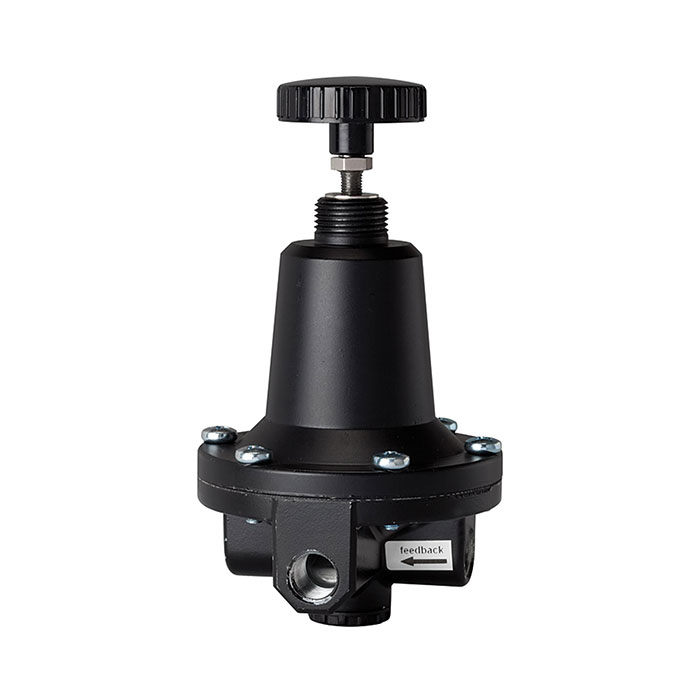

RIEGLER Precision control air regulator (feedback controller), G 1/4
Type number: 637.310
EAN: 4047322278416
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Precision control air regulator (feedback regulator), without pressure gauge, G 1/4, control range 0.2 - 7 bar, inlet pressure max. 16 bar
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | FPM |
| Membrane | FPM |
| Intrinsic air consumption max. | 3 - 6 l/min |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Pressure gauge connection | shows the feedback pressure |
| Thread | G 1/4 |
| Control range min. | 0.2 bar |
| Control range max. | 7 bar |
| A | 82 mm |
| B | 142.8 mm |
| C | 19.4 mm |
| D | 123.4 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | FLEX |
