RIEGLER Filter »inline«, 36 µm, G 1/4 IT/IT, AF 19
Type number: 650.12
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter "inline", 36 µm, G 1/4 inside/inside, SW 19, inlet pressure max. 18 bar, temperature range 0 °C to 80 °C, housing: brass
| Inlet pressure max. | 18 bar |
| Temperature range min. | 0 °C |
| Temperature range max. | 80 °C |
| Housing | Brass |
| Series | inline |
| Filter element | Nickel-plated brass |
| Filter fineness | 36 µm |
| Interior parts | NBR |
| SW | 19 mm |
| A | 18 mm |
| L | 41 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101523] RIEGLER Filter »inline«, 36 µm, G 1/2 IT/ET, AF 28](/web/image/product.template/169497/image_128/%5B101523%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%201-2%20IT-ET%2C%20AF%2028?unique=279bc4c)
|
Type number: 650.24 |
47.29 € | |
![[101519] RIEGLER Filter »inline«, 36 µm, G 1/2 IT/IT, AF 28](/web/image/product.template/169493/image_128/%5B101519%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%201-2%20IT-IT%2C%20AF%2028?unique=0de9b5b)
|
Type number: 650.14 |
47.29 € | |

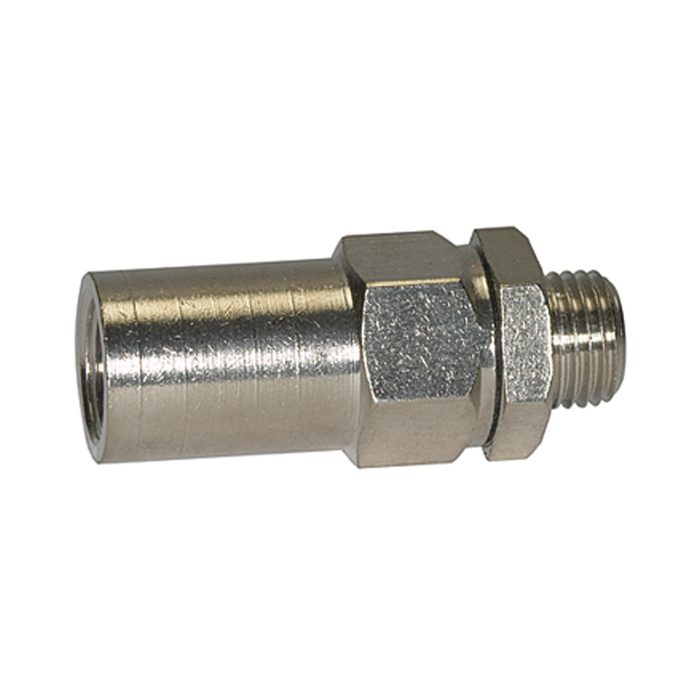

![[101521] RIEGLER Filter »inline«, 36 µm, G 1/4 IT/ET, AF 19](/web/image/product.template/169495/image_128/%5B101521%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%201-4%20IT-ET%2C%20AF%2019?unique=4124caf)
|
Type number: 650.22 |
19.98 € | |
![[101520] RIEGLER Filter »inline«, 36 µm, G 1/8 IT/ET, AF 17](/web/image/product.template/169494/image_128/%5B101520%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%201-8%20IT-ET%2C%20AF%2017?unique=188bec5)
|
Type number: 650.21 |
14.91 € | |
![[101516] RIEGLER Filter »inline«, 36 µm, G 1/8 IT/IT, AF 17](/web/image/product.template/169490/image_128/%5B101516%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%201-8%20IT-IT%2C%20AF%2017?unique=50af8e5)
|
Type number: 650.11 |
14.91 € | |
![[101522] RIEGLER Filter »inline«, 36 µm, G 3/8 IT/ET, AF 24](/web/image/product.template/169496/image_128/%5B101522%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%203-8%20IT-ET%2C%20AF%2024?unique=421bcf4)
|
Type number: 650.23 |
25.37 € | |

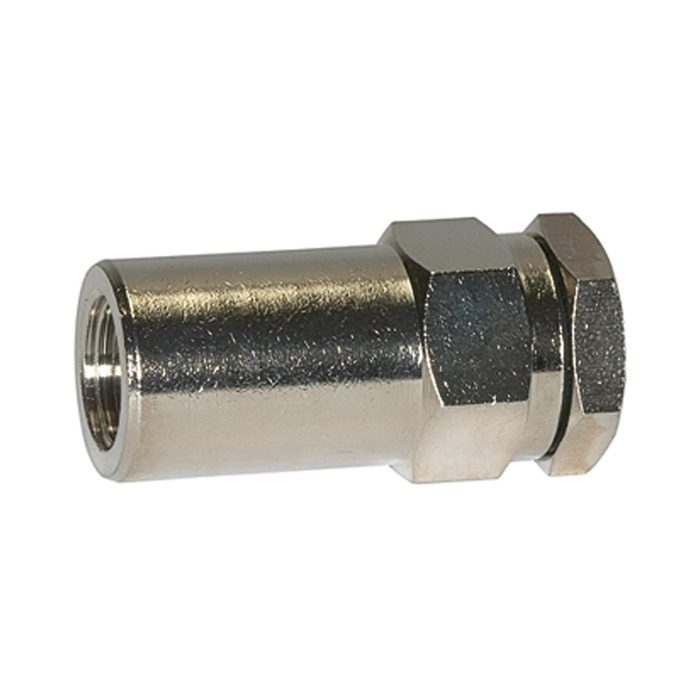

![[101518] RIEGLER Filter »inline«, 36 µm, G 3/8 IT/IT, AF 24](/web/image/product.template/169492/image_128/%5B101518%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%203-8%20IT-IT%2C%20AF%2024?unique=1caf4f9)
|
Type number: 650.13 |
25.37 € | |
