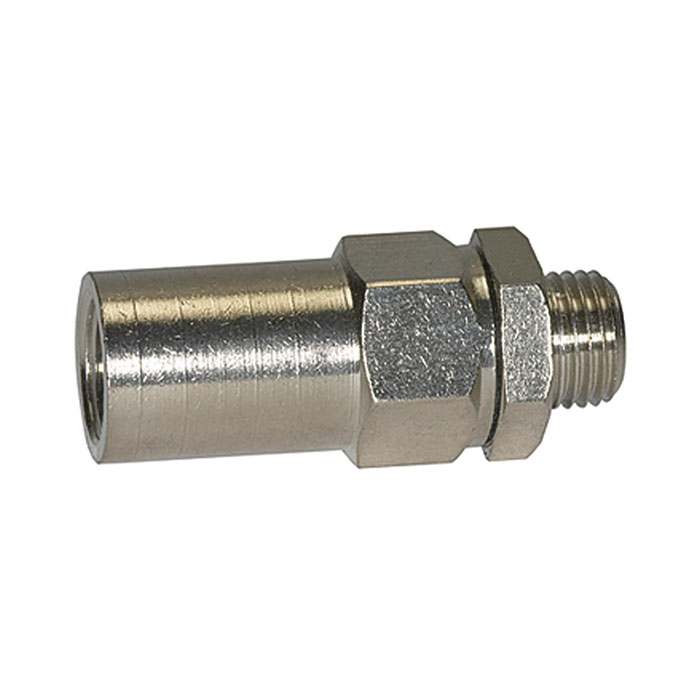

RIEGLER Filter »inline«, 36 µm, G 1/8 IT/ET, AF 17
Type number: 650.21
EAN: 4047322203692
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter "inline", 36 µm, G 1/8 inside/outside, SW 17, inlet pressure max. 18 bar, temperature range 0 °C to 80 °C, housing: brass
| Inlet pressure max. | 18 bar |
| Temperature range min. | 0 °C |
| Temperature range max. | 80 °C |
| Housing | Brass |
| Series | inline |
| Filter element | Nickel-plated brass |
| Filter fineness | 36 µm |
| Interior parts | NBR |
| Thread | G 1/8 IG/AG |
| SW | 17 mm |
| A | 16 mm |
| L | 41 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
