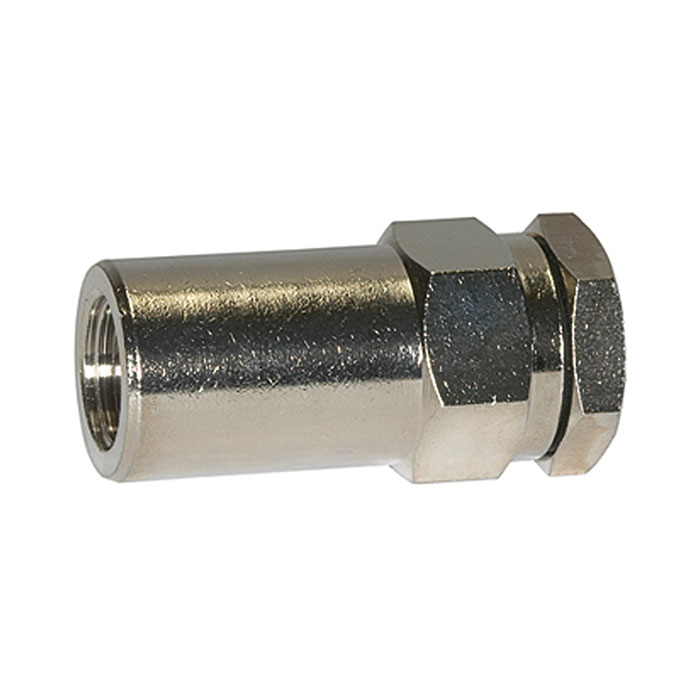

RIEGLER Filter »inline«, 36 µm, G 3/8 IT/IT, AF 24
Type number: 650.13
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter "inline" made of brass, for compressed air treatment, G 3/8 IG/IG - Type 650.13
The RIEGLER "inline" filter, 36 µm, G 3/8 IG/IG, SW 24 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of brass. The maximum inlet pressure is 18 bar. The temperature range is between 0 °C and 80 °C. Connection thread G 3/8 IG/IG - suitable for common industry standards. Filter fineness 36 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 18 bar |
| Temperature range min. | 0 °C |
| Temperature range max. | 80 °C |
| Housing | Brass |
| Series | inline |
| Filter element | Nickel-plated brass |
| Filter fineness | 36 µm |
| Interior parts | NBR |
| Thread | G 3/8 IG/IG |
| SW | 24 mm |
| A | 22 mm |
| L | 53 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101523] RIEGLER Filter »inline«, 36 µm, G 1/2 IT/ET, AF 28](/web/image/product.template/169497/image_128/%5B101523%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%201-2%20IT-ET%2C%20AF%2028?unique=2c6d281)
|
Type number: 650.24 |
46.65 € | |
![[101519] RIEGLER Filter »inline«, 36 µm, G 1/2 IT/IT, AF 28](/web/image/product.template/169493/image_128/%5B101519%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%201-2%20IT-IT%2C%20AF%2028?unique=1f82b28)
|
Type number: 650.14 |
46.65 € | |
![[101521] RIEGLER Filter »inline«, 36 µm, G 1/4 IT/ET, AF 19](/web/image/product.template/169495/image_128/%5B101521%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%201-4%20IT-ET%2C%20AF%2019?unique=35d8dbc)
|
Type number: 650.22 |
19.98 € | |
![[101517] RIEGLER Filter »inline«, 36 µm, G 1/4 IT/IT, AF 19](/web/image/product.template/169491/image_128/%5B101517%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%201-4%20IT-IT%2C%20AF%2019?unique=bbe79e6)
|
Type number: 650.12 |
19.98 € | |

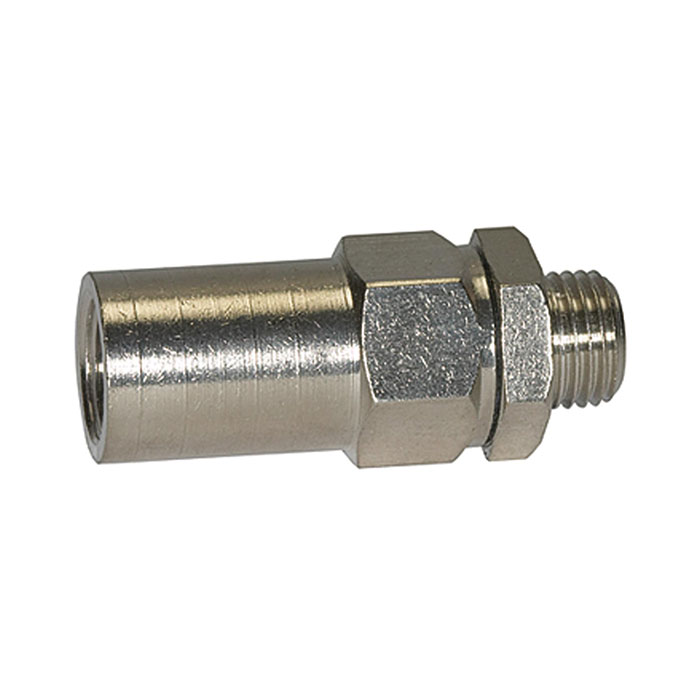

![[101520] RIEGLER Filter »inline«, 36 µm, G 1/8 IT/ET, AF 17](/web/image/product.template/169494/image_128/%5B101520%5D%20RIEGLER%20Filter%20%C2%BBinline%C2%AB%2C%2036%20%C2%B5m%2C%20G%201-8%20IT-ET%2C%20AF%2017?unique=a6b7bdd)
|
