RIEGLER Pressure gauge- screw connection, G 1/4 i., Pipe exterior Ø 6
Type number: V 200
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mano connection fitting made of galvanized steel (DIN 2353), for pneumatic installation - type V 200
The RIEGLER Mano connection fitting G 1/4 i., pipe outer Ø 6, galvanized steel creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread G 1/4 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | G 1/4 |
| SW 1 | 14 mm |
| SW 2 | 19 mm |
| Tube outer Ø | 6 mm |
| PN | 315 bar |
| L1 | 37 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

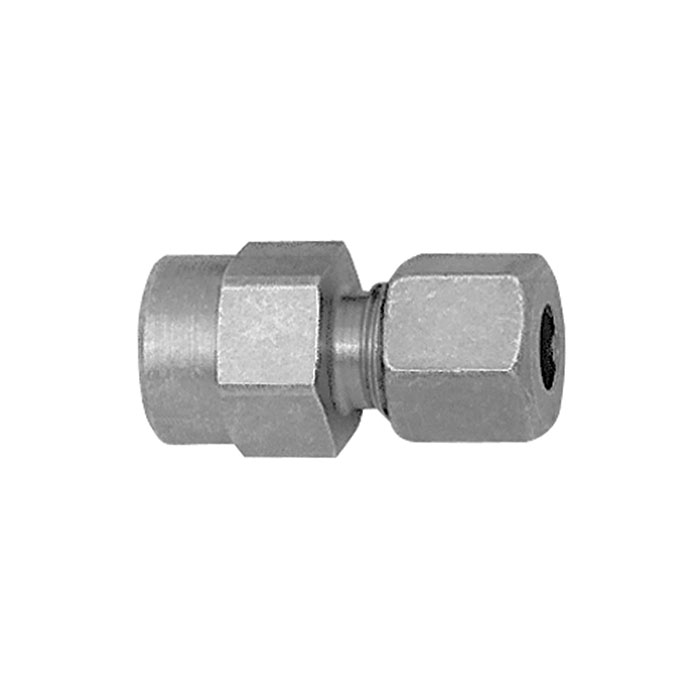

![[102635] RIEGLER Pressure gauge- screw connection, G 1/4 i., Pipe exterior Ø 10](/web/image/product.template/170607/image_128/%5B102635%5D%20RIEGLER%20Pressure%20gauge-%20screw%20connection%2C%20G%201-4%20i.%2C%20Pipe%20exterior%20%C3%98%2010?unique=70b586f)
|
