RIEGLER 2/2-way solenoid valve, NC, directly operated, 24 V DC, G 1/4
Type number: MV 1215 G
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way solenoid valve,brass,NC,direc. operat.,24V DC, Med. temp. -25 to 80°C,Ambient temp. -25 to 55°C,NBR,G 1/4,PN 0-8bar
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | ISO 4400, cable socket (Pg 11P) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Medium temperature min. | -25 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Valve seat | Brass |
| Thread | G 1/4 |
| DN | 45325 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Design | 2 |
| Function | normally closed (NC) |
| A | 91 mm |
| B | 30 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

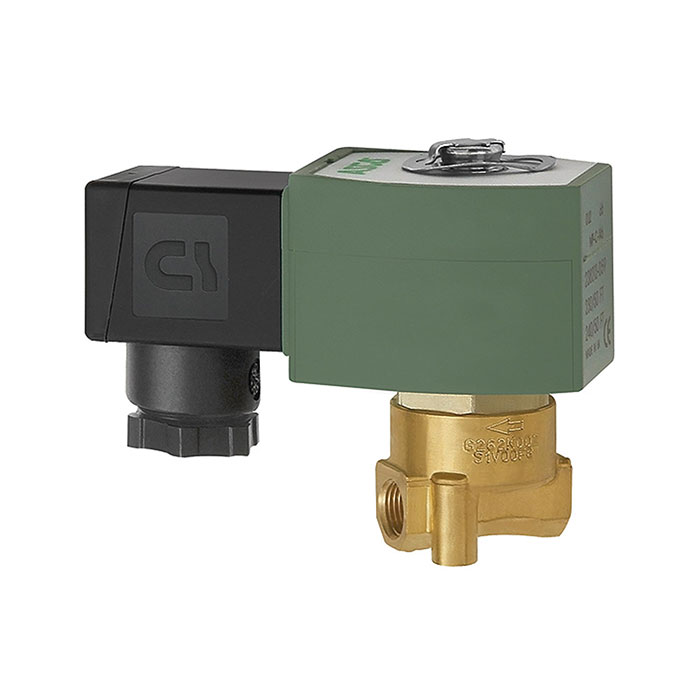

![[102826] RIEGLER 2/2-way solenoid valve, NC, directly operated, 24 V DC, G 1/4](/web/image/product.template/170798/image_128/%5B102826%5D%20RIEGLER%202-2-way%20solenoid%20valve%2C%20NC%2C%20directly%20operated%2C%2024%20V%20DC%2C%20G%201-4?unique=de1737d)
|
Type number: MV 1225 G |
107.10 € | |
![[102823] RIEGLER 2/2-way solenoid valve, NC, directly operated, 24 V DC, G 1/8](/web/image/product.template/170795/image_128/%5B102823%5D%20RIEGLER%202-2-way%20solenoid%20valve%2C%20NC%2C%20directly%20operated%2C%2024%20V%20DC%2C%20G%201-8?unique=d9436be)
|
Type number: MV 1214 G |
79.46 € | |

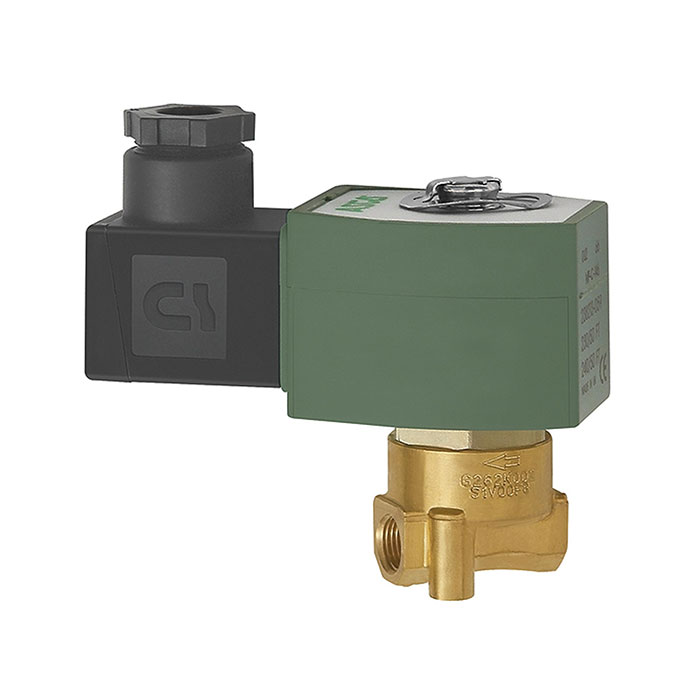

![[102824] RIEGLER 2/2-way solenoid valve, NC, directly operated, 24 V DC, G 1/8](/web/image/product.template/170796/image_128/%5B102824%5D%20RIEGLER%202-2-way%20solenoid%20valve%2C%20NC%2C%20directly%20operated%2C%2024%20V%20DC%2C%20G%201-8?unique=7cb6b71)
|
Type number: MV 1224 G |
92.92 € | |
