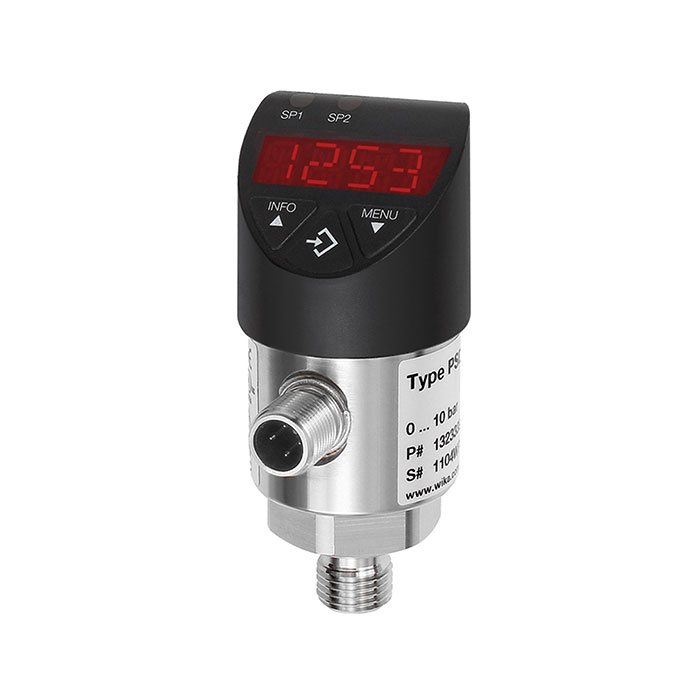

RIEGLER Electr. pressure switch, Digital display, M12x1, G 1/4, 0-60 bar
Type number: EDS-60
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Electrical pressure switch, digital display, M12x1, 4-pin, medium temp. -20 °C to 85 °C, connection G 1/4, measuring range 0-60 bar
| Housing | CrNi steel |
| Protection class | IP 65 and IP 67 (M12x1) |
| Electrical connection | Round plug connector M12x1, 4-pin. |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 85 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 80 °C |
| Wetted parts | CrNi steel |
| Output signal | 2 switching outputs |
| Accuracy | 1% of the margin |
| Auxiliary energy | DC 15 - 35 V |
| Process connection | G 1/4 |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 60 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103082] RIEGLER Elect. pressure switch, Digital display, M12x1, G 1/4, 0-100 bar](/web/image/product.template/171051/image_128/%5B103082%5D%20RIEGLER%20Elect.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-100%20bar?unique=4f30d39)
|
Type number: EDS-100 |
275.62 € | |
![[103083] RIEGLER Elect. pressure switch, Digital display, M12x1, G 1/4, 0-160 bar](/web/image/product.template/171052/image_128/%5B103083%5D%20RIEGLER%20Elect.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-160%20bar?unique=46816a0)
|
Type number: EDS-160 |
275.62 € | |
![[103084] RIEGLER Elect. pressure switch, Digital display, M12x1, G 1/4, 0-250 bar](/web/image/product.template/171053/image_128/%5B103084%5D%20RIEGLER%20Elect.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-250%20bar?unique=ebc9370)
|
Type number: EDS-250 |
275.62 € | |
![[103074] RIEGLER Elect. pressure switch, Digital display, M12x1, G 1/4, 0-2.5 bar](/web/image/product.template/171043/image_128/%5B103074%5D%20RIEGLER%20Elect.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-2.5%20bar?unique=0dd1990)
|
Type number: EDS-2 |
275.62 € | |
![[103085] RIEGLER Elect. pressure switch, Digital display, M12x1, G 1/4, 0-400 bar](/web/image/product.template/171054/image_128/%5B103085%5D%20RIEGLER%20Elect.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-400%20bar?unique=2016dc4)
|
Type number: EDS-400 |
275.62 € | |
![[103086] RIEGLER Elect. pressure switch, Digital display, M12x1, G 1/4, 0-600 bar](/web/image/product.template/171055/image_128/%5B103086%5D%20RIEGLER%20Elect.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-600%20bar?unique=fab10c1)
|
Type number: EDS-600 |
275.62 € | |
![[103077] RIEGLER Electr. pressure switch, Digital display, M12x1, G 1/4, 0-10 bar](/web/image/product.template/171046/image_128/%5B103077%5D%20RIEGLER%20Electr.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-10%20bar?unique=717dbf5)
|
Type number: EDS-10 |
275.62 € | |
![[103078] RIEGLER Electr. pressure switch, Digital display, M12x1, G 1/4, 0-16 bar](/web/image/product.template/171047/image_128/%5B103078%5D%20RIEGLER%20Electr.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-16%20bar?unique=bc6daf5)
|
Type number: EDS-16 |
275.62 € | |
![[103073] RIEGLER Electr. pressure switch, Digital display, M12x1, G 1/4, 0-1 bar](/web/image/product.template/171042/image_128/%5B103073%5D%20RIEGLER%20Electr.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-1%20bar?unique=b33b0d5)
|
Type number: EDS-1 |
275.62 € | |
![[103079] RIEGLER Electr. pressure switch, Digital display, M12x1, G 1/4, 0-25 bar](/web/image/product.template/171048/image_128/%5B103079%5D%20RIEGLER%20Electr.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-25%20bar?unique=95ea65c)
|
Type number: EDS-25 |
275.62 € | |
![[103080] RIEGLER Electr. pressure switch, Digital display, M12x1, G 1/4, 0-40 bar](/web/image/product.template/171049/image_128/%5B103080%5D%20RIEGLER%20Electr.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-40%20bar?unique=7a7b700)
|
Type number: EDS-40 |
275.62 € | |
![[103075] RIEGLER Electr. pressure switch, Digital display, M12x1, G 1/4, 0-4 bar](/web/image/product.template/171044/image_128/%5B103075%5D%20RIEGLER%20Electr.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-4%20bar?unique=e700dc8)
|
Type number: EDS-4 |
275.62 € | |
![[103076] RIEGLER Electr. pressure switch, Digital display, M12x1, G 1/4, 0-6 bar](/web/image/product.template/171045/image_128/%5B103076%5D%20RIEGLER%20Electr.%20pressure%20switch%2C%20Digital%20display%2C%20M12x1%2C%20G%201-4%2C%200-6%20bar?unique=635cda0)
|
Type number: EDS-6 |
275.62 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

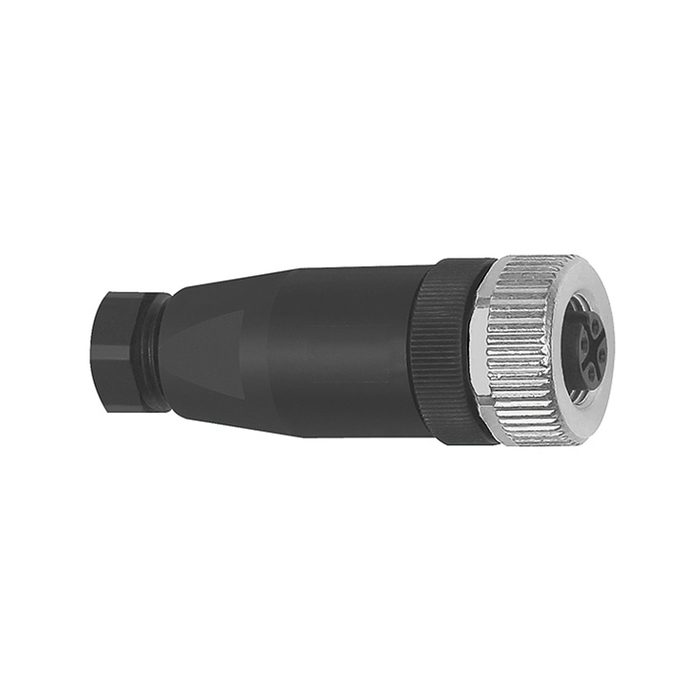

![[103087] RIEGLER Straight connection plug, 4-pole, without cable](/web/image/product.template/171056/image_128/%5B103087%5D%20RIEGLER%20Straight%20connection%20plug%2C%204-pole%2C%20without%20cable?unique=73ba24c)
|
Type number: EDS-SG |
14.13 € | |

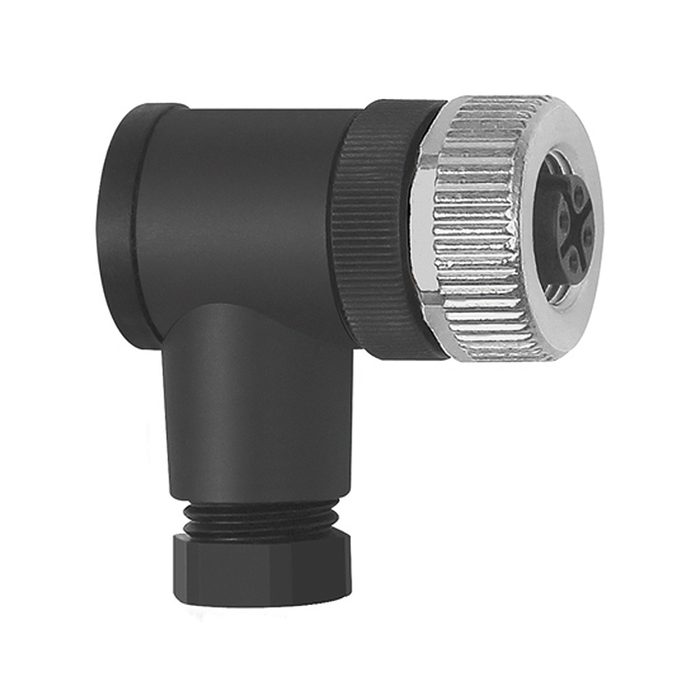

![[103088] RIEGLER Angled connection plug, 4-pole, without cable](/web/image/product.template/171057/image_128/%5B103088%5D%20RIEGLER%20Angled%20connection%20plug%2C%204-pole%2C%20without%20cable?unique=d6e4e19)
|
Type number: EDS-SW |
15.02 € | |

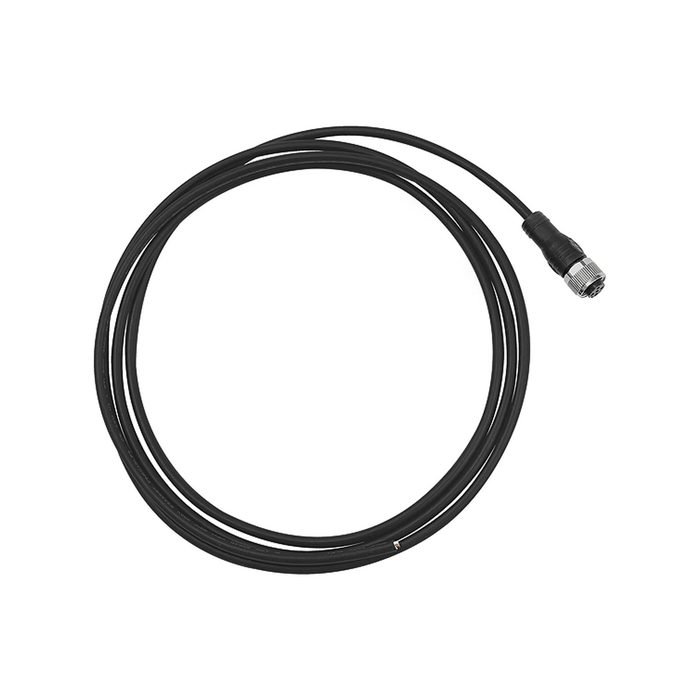

![[103089] RIEGLER Straight connection plug, 4-pole, with PUR cable 2 m](/web/image/product.template/171058/image_128/%5B103089%5D%20RIEGLER%20Straight%20connection%20plug%2C%204-pole%2C%20with%20PUR%20cable%202%20m?unique=84c5bfd)
|
Type number: EDS-KG2 |
21.21 € | |
![[103090] RIEGLER Straight connection plug, 4-pole, with PUR cable 5 m](/web/image/product.template/171059/image_128/%5B103090%5D%20RIEGLER%20Straight%20connection%20plug%2C%204-pole%2C%20with%20PUR%20cable%205%20m?unique=c29ec4c)
|
Type number: EDS-KG5 |
24.40 € | |

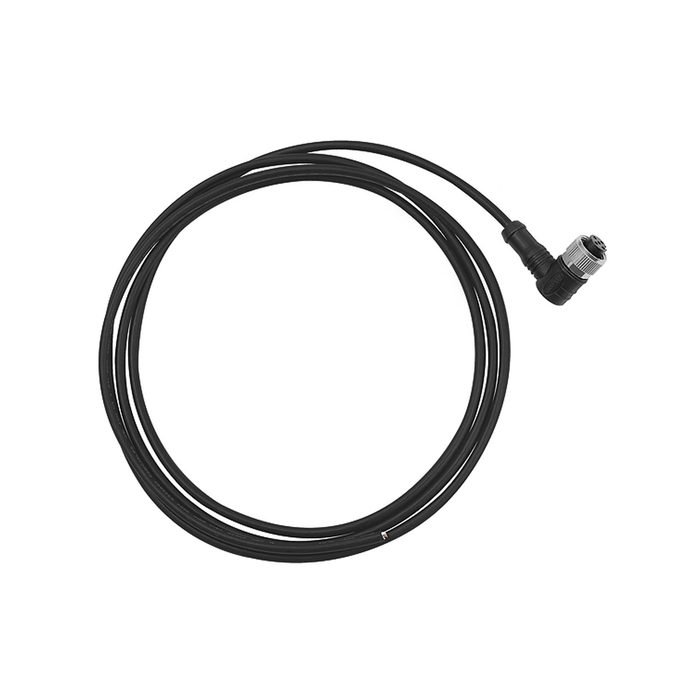

![[103091] RIEGLER Angled connection plug, 4-pole, with PUR cable 2 m](/web/image/product.template/171060/image_128/%5B103091%5D%20RIEGLER%20Angled%20connection%20plug%2C%204-pole%2C%20with%20PUR%20cable%202%20m?unique=70262a6)
|
