RIEGLER Ball valve, Standard type, IT/IT, nickel-plated brass, G 2
Type number: 329.09-R
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve, Manual lever, Standard type, IT/IT, nickel-plated brass, Operating temp. -20 °C to 150 °C, G 2, DN 50, PN max. 25 bar
| Material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR / FKM (seal package consisting of 2 O-rings) |
| Hand lever | Galvanized steel, painted red |
| Operating temperature | -20 °C to 150 °C (no steam) |
| Thread | G 2 |
| DN | 50 |
| PN | 25 bar |
| Thread standard | G-thread to DIN EN ISO 228-1, tolerance class B |
| A | 157.8 mm |
| B | 96 mm |
| L | 112.5 mm |
| E | 20.5 mm |
| F | 22 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Thread material | Nickel-plated brass |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103097] RIEGLER Ball valve, Standard type, IT/IT, nickel-plated brass, G 1](/web/image/product.template/171066/image_128/%5B103097%5D%20RIEGLER%20Ball%20valve%2C%20Standard%20type%2C%20IT-IT%2C%20nickel-plated%20brass%2C%20G%201?unique=1eece35)
|
Type number: 329.06-R |
23.65 € | |
![[103095] RIEGLER Ball valve, Standard type, IT/IT, nickel-plated brass, G 1/2](/web/image/product.template/171064/image_128/%5B103095%5D%20RIEGLER%20Ball%20valve%2C%20Standard%20type%2C%20IT-IT%2C%20nickel-plated%20brass%2C%20G%201-2?unique=4ad6c3d)
|
Type number: 329.04-R |
11.55 € | |
![[103093] RIEGLER Ball valve, Standard type, IT/IT, nickel-plated brass, G 1/4](/web/image/product.template/171062/image_128/%5B103093%5D%20RIEGLER%20Ball%20valve%2C%20Standard%20type%2C%20IT-IT%2C%20nickel-plated%20brass%2C%20G%201-4?unique=9beb30b)
|
Type number: 329.02-R |
10.64 € | |
![[103096] RIEGLER Ball valve, Standard type, IT/IT, nickel-plated brass, G 3/4](/web/image/product.template/171065/image_128/%5B103096%5D%20RIEGLER%20Ball%20valve%2C%20Standard%20type%2C%20IT-IT%2C%20nickel-plated%20brass%2C%20G%203-4?unique=62f5032)
|
Type number: 329.05-R |
16.37 € | |
![[103094] RIEGLER Ball valve, Standard type, IT/IT, nickel-plated brass, G 3/8](/web/image/product.template/171063/image_128/%5B103094%5D%20RIEGLER%20Ball%20valve%2C%20Standard%20type%2C%20IT-IT%2C%20nickel-plated%20brass%2C%20G%203-8?unique=e6af290)
|
Type number: 329.03-R |
10.92 € | |
![[103099] RIEGLER Ball valve, Standard type, IT/IT, nickel-plated brass, G 1 1/2](/web/image/product.template/171068/image_128/%5B103099%5D%20RIEGLER%20Ball%20valve%2C%20Standard%20type%2C%20IT-IT%2C%20nickel-plated%20brass%2C%20G%201%201-2?unique=c3bc72c)
|
Type number: 329.08-R |
57.49 € | |

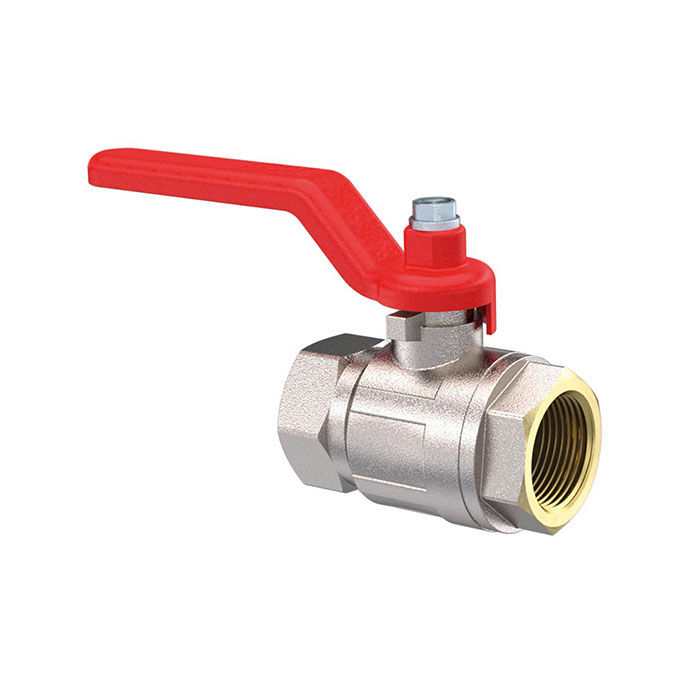

![[103098] RIEGLER Ball valve, Standard type, IT/IT, nickel-plated brass, G 1 1/4](/web/image/product.template/171067/image_128/%5B103098%5D%20RIEGLER%20Ball%20valve%2C%20Standard%20type%2C%20IT-IT%2C%20nickel-plated%20brass%2C%20G%201%201-4?unique=0a7fa1f)
|
