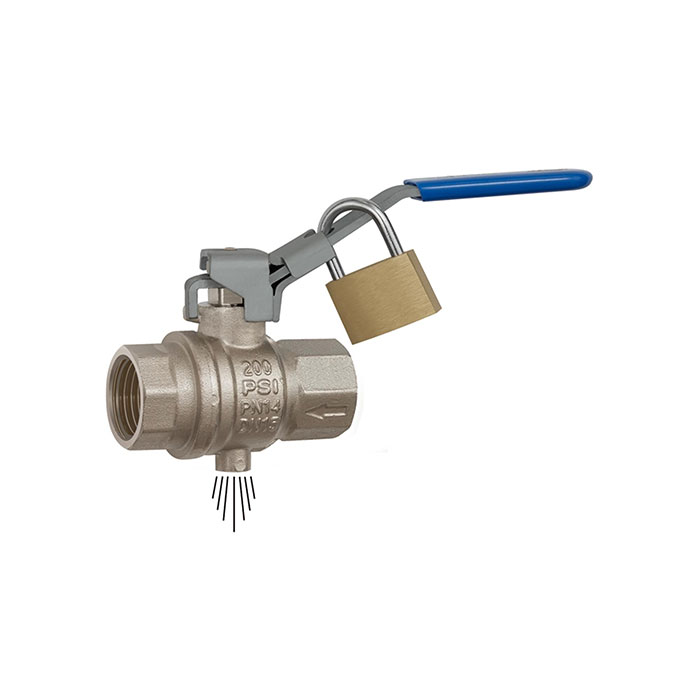

RIEGLER Ball valve, lockable, venting hole, Rp 1/2
Type number: 321.04
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve, lockable, vent hole M5, MS nickel-plated, operating temp. -10°C to 100°C, Rp 1/2, DN 15, PN max. 14 bar
| Housing | Nickel-plated brass |
| Max. operating pressure | 14 bar |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | FKM |
| Hand lever | Steel - PVC coated |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Thread | Rp 1/2 |
| DN | 15 |
| Thread standard | Rp thread to EN 10226 |
| Vent hole | M5 |
| A | 96 mm |
| B | 51 mm |
| L | 59 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Thread material | Nickel-plated brass |
| Class name | MAX |
| Bore diameter padlock | approx. 7.3 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103153] RIEGLER Ball valve, lockable, venting hole, Rp 1](/web/image/product.template/171122/image_128/%5B103153%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20venting%20hole%2C%20Rp%201?unique=a58a557)
|
Type number: 321.06 |
27.64 € | |
![[103155] RIEGLER Ball valve, lockable, venting hole, Rp 1 1/2](/web/image/product.template/171124/image_128/%5B103155%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20venting%20hole%2C%20Rp%201%201-2?unique=03f8475)
|
Type number: 321.08 |
88.39 € | |
![[103154] RIEGLER Ball valve, lockable, venting hole, Rp 1 1/4](/web/image/product.template/171123/image_128/%5B103154%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20venting%20hole%2C%20Rp%201%201-4?unique=b823f34)
|
Type number: 321.07 |
65.82 € | |
![[103149] RIEGLER Ball valve, lockable, venting hole, Rp 1/4](/web/image/product.template/171118/image_128/%5B103149%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20venting%20hole%2C%20Rp%201-4?unique=50cfb7a)
|
Type number: 321.02 |
11.67 € | |

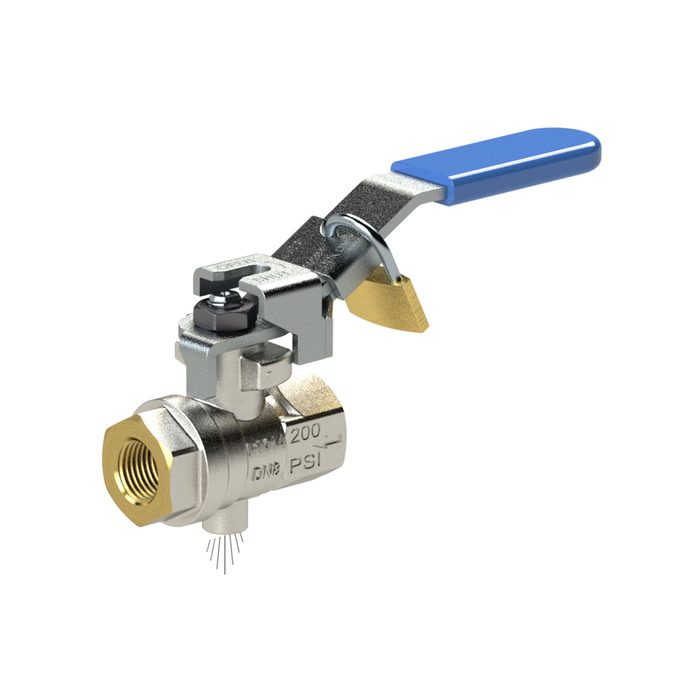

![[103156] RIEGLER Ball valve, lockable, venting hole, Rp 2](/web/image/product.template/171125/image_128/%5B103156%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20venting%20hole%2C%20Rp%202?unique=f4e8c47)
|
