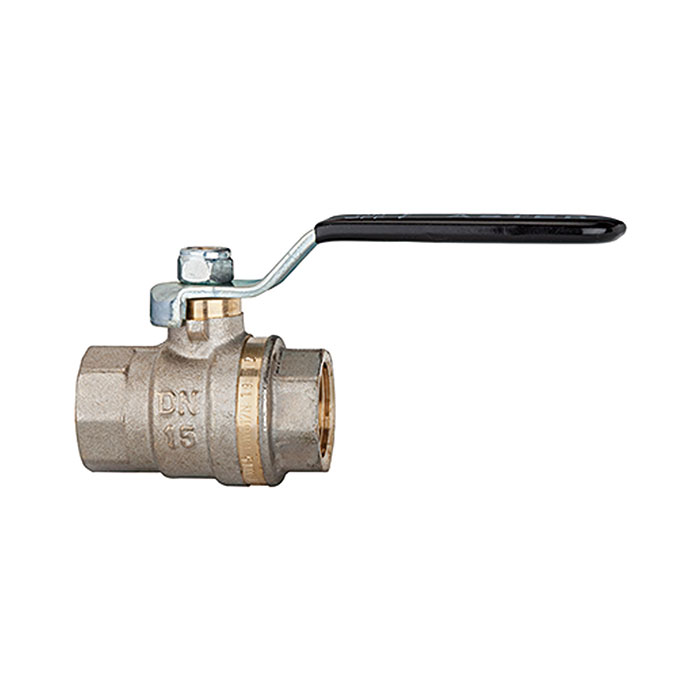

RIEGLER Ball valve standard design, black steel lever, IT/IT, G 1
Type number: 330.06-S
EAN: 4047322277624
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard version ball valve, black steel lever, IG/IG, nickel-plated brass, operating temp. -15 °C to 90 °C, G 1, DN 25, PN max. 40 bar
| Material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | 2 O-rings HNBR/EPDM peroxide cross-linked, PTFE sealing washer |
| Hand lever | Steel, with plastic coating |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1 |
| DN | 25 |
| PN | 40 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 105 mm |
| B | 52.3 mm |
| L | 69 mm |
| E | 12 mm |
| F | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | PLUS |
