RIEGLER Ball valve heavy duty design, Manual lever, IT/ET, G/R 1
Type number: 3350.66
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve, heavy-duty design, hand lever, female/male, nickel-plated brass, operating temp. -20 °C to 130 °C, G/R 1, DN 25, PN max. 80 bar
| Housing | Nickel-plated brass |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Hand lever | Aluminum, painted black |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | G/R 1 |
| DN | 25 |
| SW 1 | 39 mm |
| SW 2 | 40 mm |
| PN | 80 bar |
| Thread standard | G-thread DIN EN ISO 228-1, R-thread DIN EN 10226 (ISO 7-1) |
| A | 120 mm |
| B | 80 mm |
| L | 89 mm |
| E | 19 mm |
| F | 15 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[147608] RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 1 1/2](/web/image/product.template/284396/image_128/%5B147608%5D%20RIEGLER%20ball%20valve%2C%20heavy-duty%20design%2C%20hand%20lever%2C%20IG-AG%2C%20MS%20nickel-plated%2C%20G%201%201-2?unique=8a7519a)
|
Typennummer: 3350.88-1 |
57.35 € | |
![[147609] RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 2](/web/image/product.template/284397/image_128/%5B147609%5D%20RIEGLER%20ball%20valve%2C%20heavy-duty%20design%2C%20hand%20lever%2C%20IG-AG%2C%20MS%20nickel-plated%2C%20G%202?unique=4b48aa5)
|
Typennummer: 3350.99-1 |
101.33 € | |

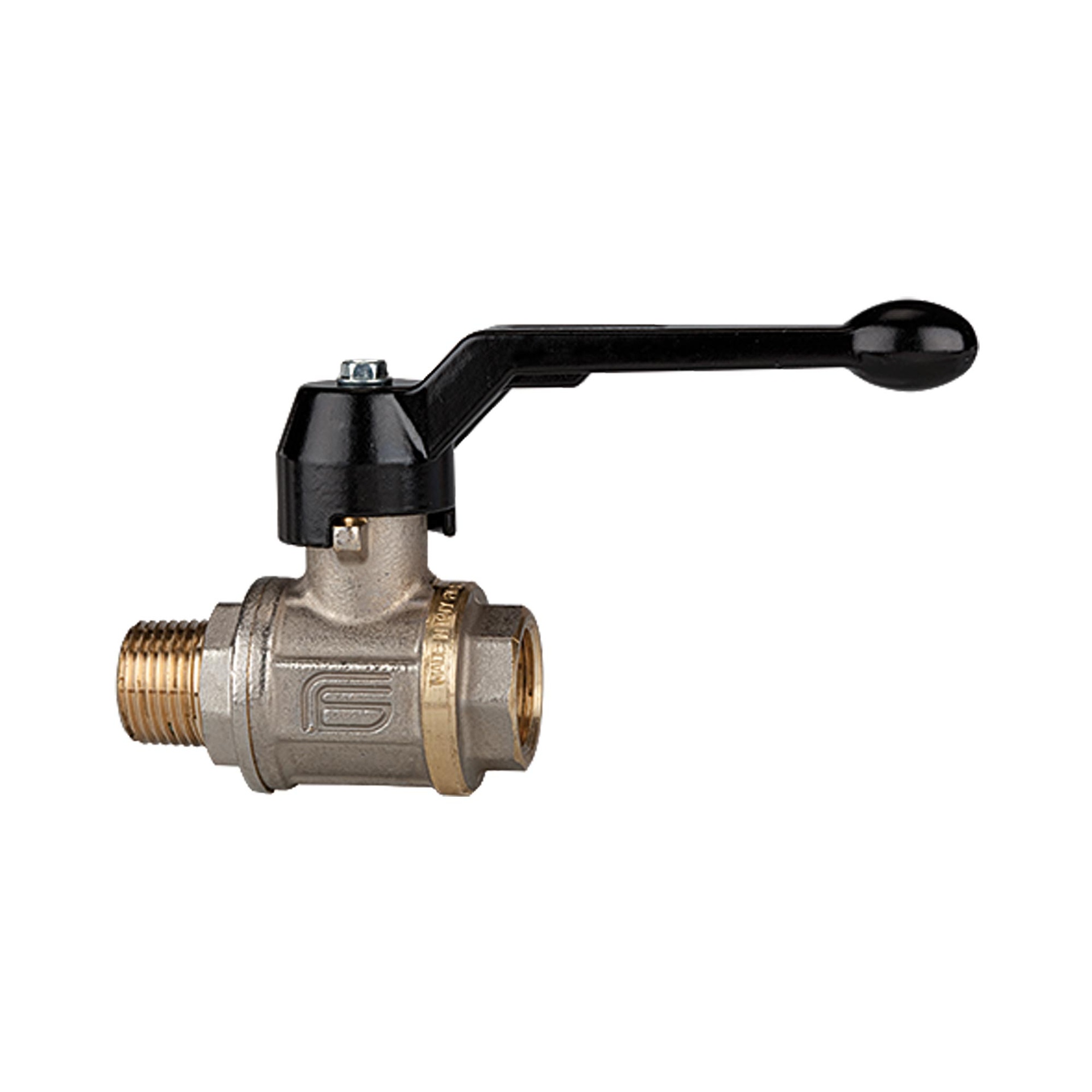

![[147603] RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 3/8](/web/image/product.template/284395/image_128/%5B147603%5D%20RIEGLER%20ball%20valve%2C%20heavy-duty%20design%2C%20hand%20lever%2C%20IG-AG%2C%20MS%20nickel-plated%2C%20G%203-8?unique=edd64b3)
|
