RIEGLER Distributor strip 10 integrated ball valves, In/output G 3/8
Type number: VT 52210
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Manifold strip 10 integrated ball valves made of die-cast aluminum, for pipeline construction - type VT 52210
The RIEGLER distribution manifold 10 integrated ball valves, die-cast aluminum, G 3/8 branches a compressed air line to several outlets. The housing is made of die-cast aluminum. Designed for a maximum operating pressure of 10 bar. The temperature range extends between -10 °C and 100 °C. Uniform supply of several consumers.
Field of application
Typical areas of application: Compressed air distribution on machines and systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 100 °C |
| Housing | Die-cast aluminum |
| Max. operating pressure | 10 bar |
| Area of application | Air, rough vacuum |
| Ball | Ms 58, chrome-plated |
| Ball seal | PTFE |
| Spindle | Ms 58, chrome-plated |
| Thread input | G 3/8 |
| Thread output | G 3/8 |
| Thread Ball valve connections | G 1/4 |
| Fastening | via 2 mounting holes in the housing (screw size M5) |
| Number of ball valves | 10 |

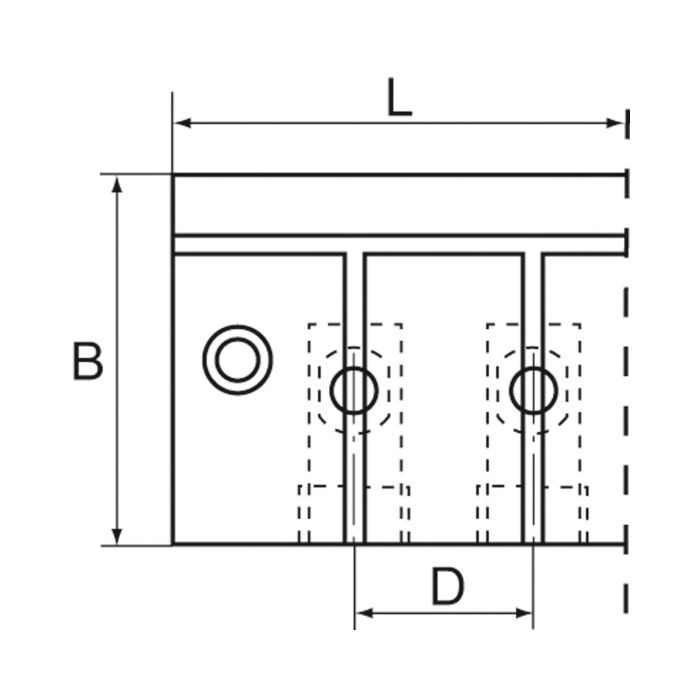

| B | 52 mm |
| D | 25 mm |
| L | 275 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| O-ring | NBR |
| Class name | PLUS |
