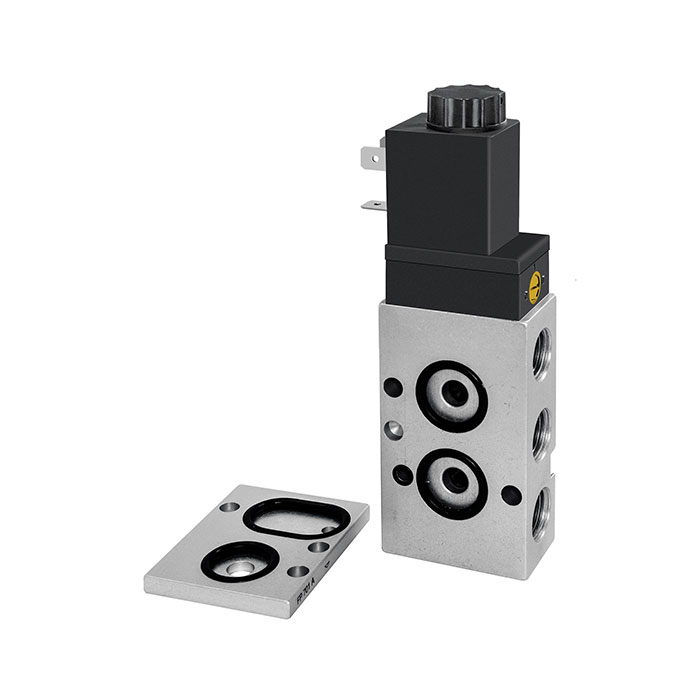

RIEGLER 3/2-5/2-way valve NAMUR, Air spring, G 1/4, 230 V, 50Hz
Type number: 552.11
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-5/2-way valve made of anodized aluminium, for pneumatic control, max. 10 bar - Type 552.11
The RIEGLER 3/2-5/2-way valve, NAMUR, air spring, G 1/4, 230 V, 50 Hz controls the direction of the compressed air flow for targeted movement sequences. The housing is made of anodized aluminium with NBR seals. The operating pressure range is 1.5 bar to 10 bar. The operating temperature is between -20 °C and 50 °C. Connection thread G 1/4 (connection 1), G 1/4 (connection 3 and 5) - suitable for common industry standards. Suitable for air, neutral gases (filtered). The flow rate is 1250 l/min. Operating voltage 230 V, 50 Hz. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Medium | Air, neutral gases (filtered) |
| Housing | Anodized aluminum |
| Sealing material | NBR |
| Electrical connection | Device plug PG 9 |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 10 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 50 °C |
| Slider | Stainless steel |
| Manual override | resting |
| Flow rate | 1250 l/min |
| DN | 7 |
| Scope of delivery | Device plug PG 9, adapter plate, screws, sealing material |
| Tension | 230 V, 50 Hz |
| Connection | G 1/4 (connection 1), G 1/4 (connection 3 and 5) |
| Class name | PLUS |
