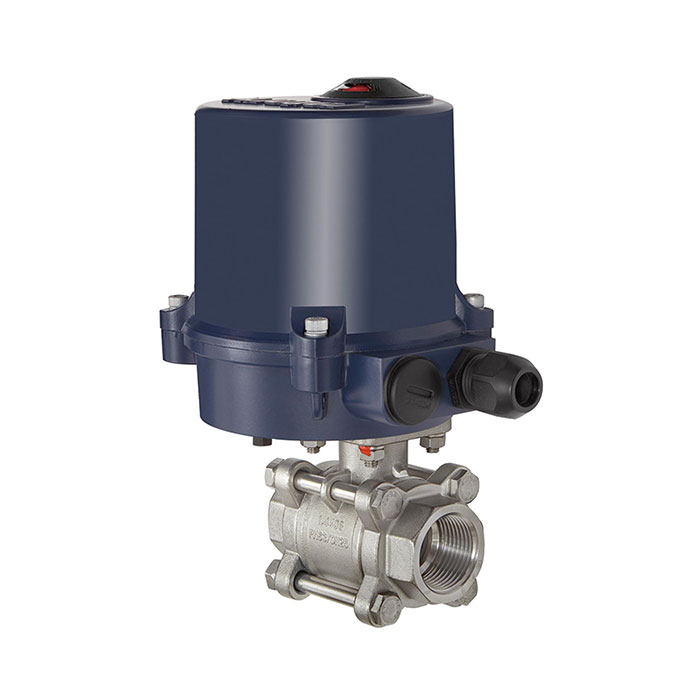

RIEGLER Stainless steel ball valve, Electr. actuation drive, Rp 1 1/2
Type number: 350.3814R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2-way ES ball valve made of powder-coated aluminum, for industrial systems, max. 63 bar - Type 350.3814R
The RIEGLER 2-way ES ball valve, elect. Actuator, 230 V AC, 50 Hz, Rp 1 1/2 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of powder-coated aluminum. Designed for a maximum operating pressure of 63 bar. The permissible medium temperature is between -10 °C and 200 °C. Connection thread Rp 1 1/2 - suitable for common industry standards. Operating voltage 230 VAC, 50 Hz, protection class IP 68. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Powder-coated aluminum |
| Duty cycle | 0.3 |
| Protection class | IP 68 |
| Max. operating pressure | 63 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -30 °C |
| Ambient temperature max. | 70 °C |
| Material | Stainless steel 1.4401 / 1.4408 |
| Ball seal | PTFE, glass fiber reinforced |
| Position indicator | manual override |
| Shift shaft seal | PTFE, glass fiber reinforced |
| Air humidity | 30 % to 95 % |
| Mounting flange | ISO 5211 |
| Overall length | DIN 3203 - M3 |
| Thread | Rp 1 1/2 |
| DN | 40 |
| SW | 58 mm |
| Operating time | 15 sec. |
| Tension | 230 VAC, 50 Hz |

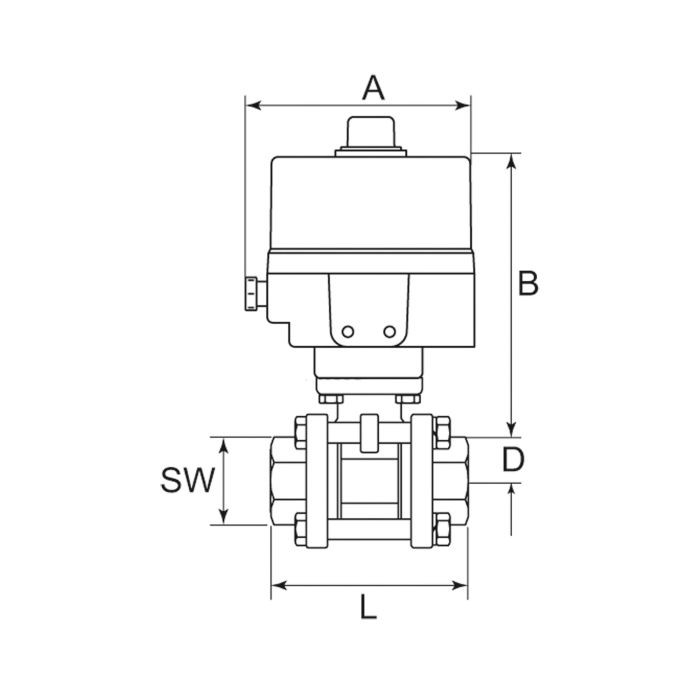

| A | 153 mm |
| B | 165.5 mm |
| D | 29 mm |
| L | 120 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103708] RIEGLER Stainless steel ball valve, Electr. actuation drive, Rp 1](/web/image/product.template/171669/image_128/%5B103708%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Electr.%20actuation%20drive%2C%20Rp%201?unique=6cbbae7)
|
Type number: 350.3812R |
663.54 € | |
![[103709] RIEGLER Stainless steel ball valve, Electr. actuation drive, Rp 1 1/4](/web/image/product.template/171670/image_128/%5B103709%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Electr.%20actuation%20drive%2C%20Rp%201%201-4?unique=6b1063b)
|
Type number: 350.3813R |
694.35 € | |
![[103706] RIEGLER Stainless steel ball valve, Electr. actuation drive, Rp 1/2](/web/image/product.template/171667/image_128/%5B103706%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Electr.%20actuation%20drive%2C%20Rp%201-2?unique=a06d242)
|
Type number: 350.3810R |
607.98 € | |
![[103711] RIEGLER Stainless steel ball valve, Electr. actuation drive, Rp 2](/web/image/product.template/171672/image_128/%5B103711%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Electr.%20actuation%20drive%2C%20Rp%202?unique=bc7ee51)
|
Type number: 350.3815R |
1,118.90 € | |

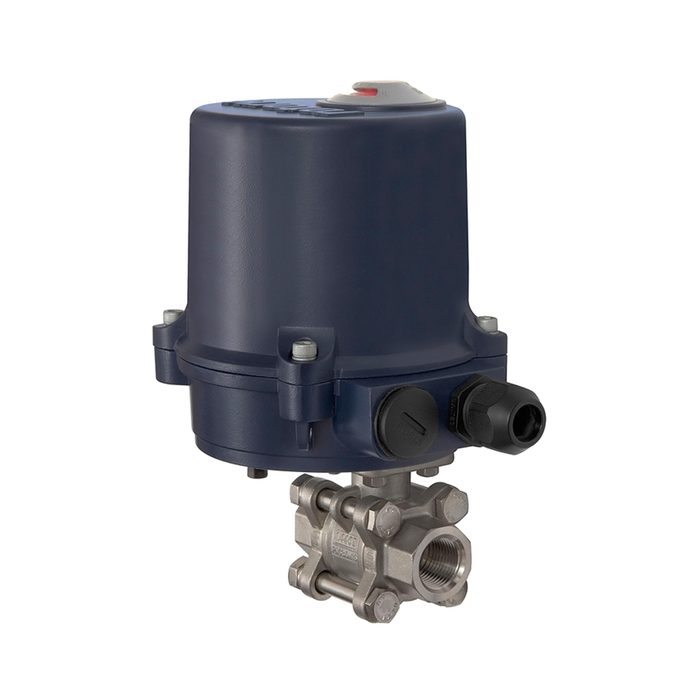

![[103707] RIEGLER Stainless steel ball valve, Electr. actuation drive, Rp 3/4](/web/image/product.template/171668/image_128/%5B103707%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Electr.%20actuation%20drive%2C%20Rp%203-4?unique=4d0d77a)
|
