RIEGLER Stainless steel ball valve, Electr. actuation drive, 24 V DC
Type number: 350.4812R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2-way stainless steel ball valve made of powder-coated aluminum, for industrial systems - Type 350.4812R
The RIEGLER 2-way stainless steel ball valve, electric actuator, 24 V DC, Rp 1 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of powder-coated aluminum. Designed for a maximum operating pressure of 63 bar. The permissible medium temperature is between -10 °C and 200 °C. Connection thread Rp 1 - suitable for common industry standards. Operating voltage 24 VDC, protection class IP 68. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Powder-coated aluminum |
| Duty cycle | 0.3 |
| Protection class | IP 68 |
| Max. operating pressure | 63 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -30 °C |
| Ambient temperature max. | 70 °C |
| Material | Stainless steel 1.4401 / 1.4408 |
| Ball seal | PTFE, glass fiber reinforced |
| Position indicator | manual override |
| Shift shaft seal | PTFE, glass fiber reinforced |
| Air humidity | 30 % to 95 % |
| Mounting flange | ISO 5211 |
| Overall length | DIN 3203 - M3 |
| Thread | Rp 1 |
| DN | 25 |
| SW | 41 mm |
| Operating time | 20 sec. |
| Tension | 24 VDC |

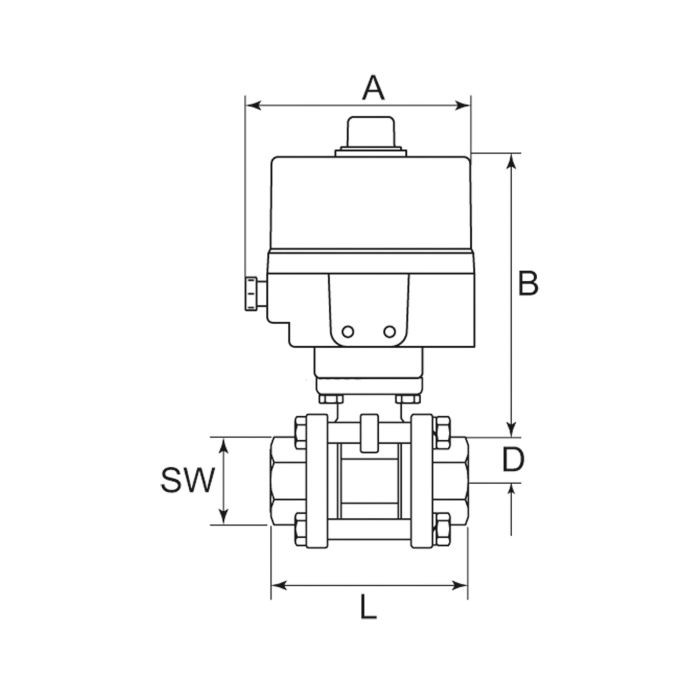

| A | 153 mm |
| B | 158 mm |
| D | 20.5 mm |
| L | 90 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

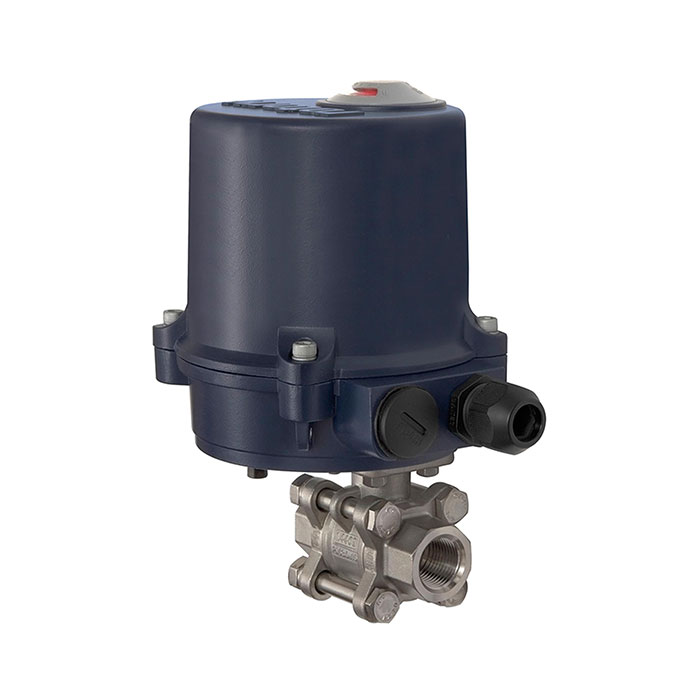

![[103712] RIEGLER Stainless steel ball valve, Electr. actuation drive, 24 V DC](/web/image/product.template/171673/image_128/%5B103712%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Electr.%20actuation%20drive%2C%2024%20V%20DC?unique=3327131)
|
Type number: 350.4810R |
607.98 € | |
![[103713] RIEGLER Stainless steel ball valve, Electr. actuation drive, 24 V DC](/web/image/product.template/171674/image_128/%5B103713%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Electr.%20actuation%20drive%2C%2024%20V%20DC?unique=f11f87e)
|
Type number: 350.4811R |
630.13 € | |

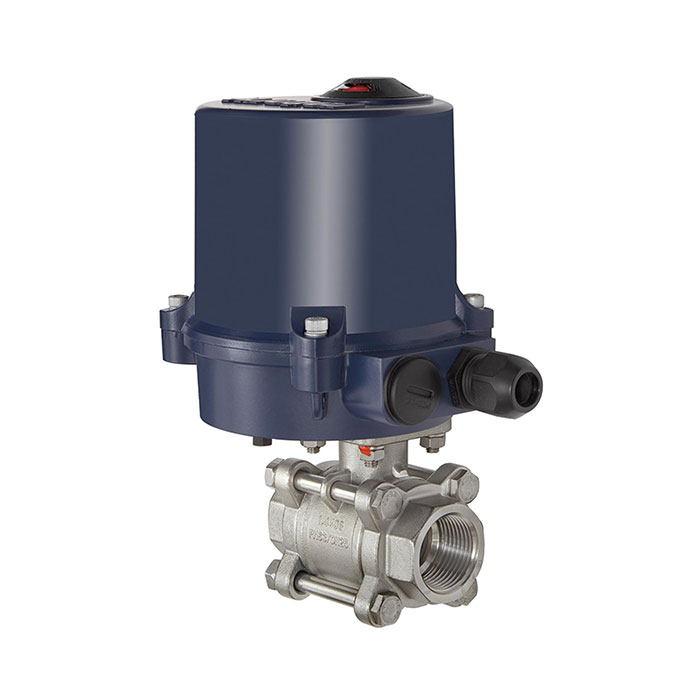

![[103715] RIEGLER Stainless steel ball valve, Electr. actuation drive, 24 V DC](/web/image/product.template/171676/image_128/%5B103715%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Electr.%20actuation%20drive%2C%2024%20V%20DC?unique=a28b156)
|
