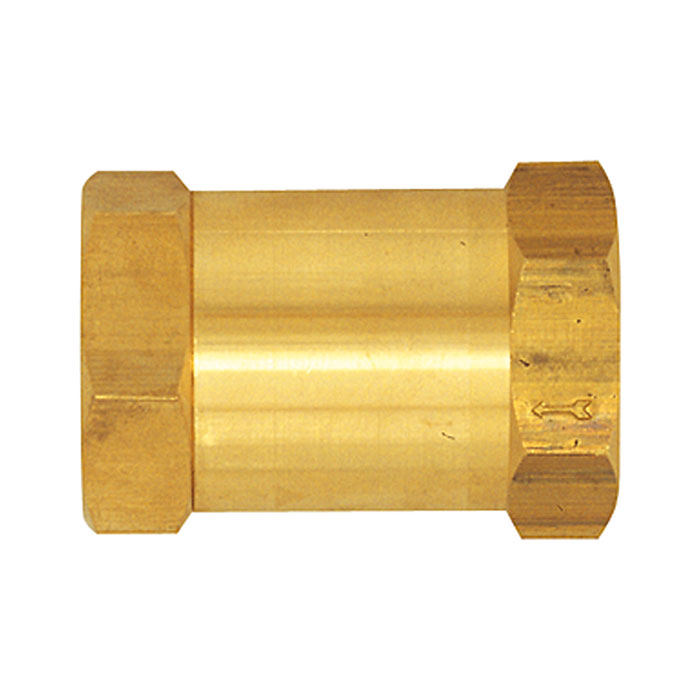

RIEGLER Check valve, straight-way variant, brass, G 1/2 IT, 0.2-0.4 bar

https://www.filcom-technik.de/web/image/product.template/171778/image_1920?unique=b317d91

Type number: 227.03

EAN: 4047322046282

14.91 € 14.91 EUR 14.91 € VAT Included

19.28 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

103817

EAN :

4047322046282

Weight :

0.13 kg

Non-return valve, straight through, MS, max. medium temperature 160 °C, G 1/2 female thread, PN max. 16 bar, opening pressure 0.2 - 0.4 bar

Housing Brass bright
Sealing material FKM
Max. operating pressure 16 bar
Medium temperature min. -30 °C
Medium temperature max. 180 °C
Opening pressure min. 0.2 - 0.4 bar
Material Brass bright
Installation position any (horizontal installation preferred)
Flow direction Note arrow
Spring Stainless steel 1.4312
Thread G 1/2 IG
SW 24 mm
Length 63 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification none
Class name PLUS
Flow values approx. 100 m³/h
