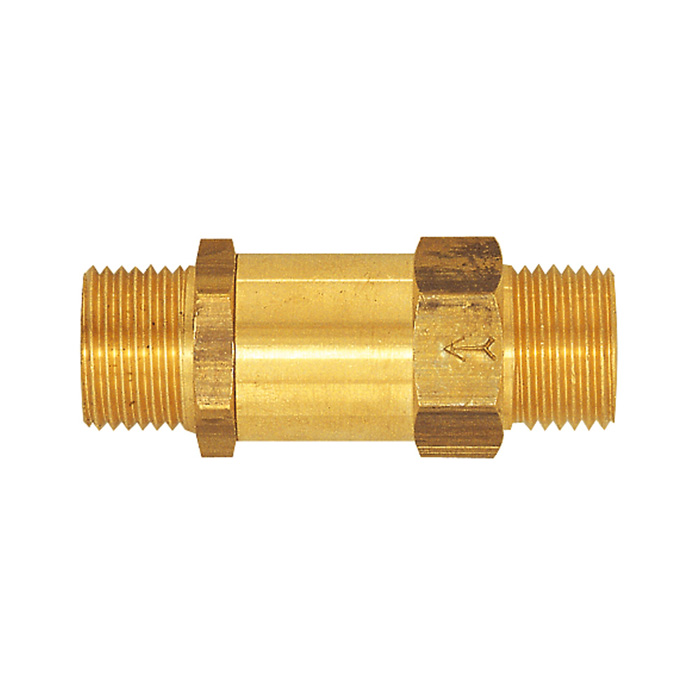

RIEGLER Non-return valve, straight through, MS, G 1 AG, 0.1 - 0.2 bar
Type number: 227.14-1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

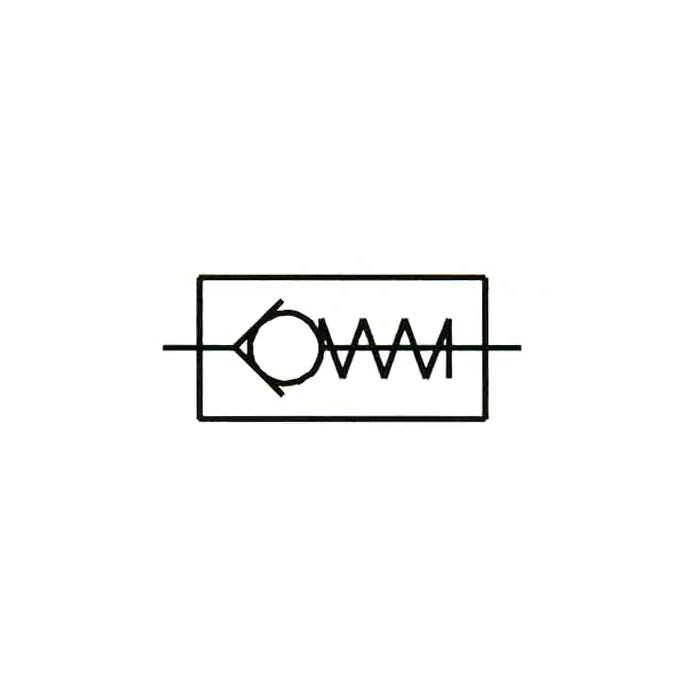

Non-return valve, straight through, MS, max. medium temperature 180 °C, G 1 male, PN max. 16 bar, opening pressure 0.1 - 0.2 bar
| Housing | Brass bright |
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Medium temperature min. | -30 °C |
| Medium temperature max. | 180 °C |
| Opening pressure min. | 0.1 - 0.2 bar |
| Material | Brass bright |
| Installation position | any (horizontal installation preferred) |
| Flow direction | Note arrow |
| Thread | G 1 AG |

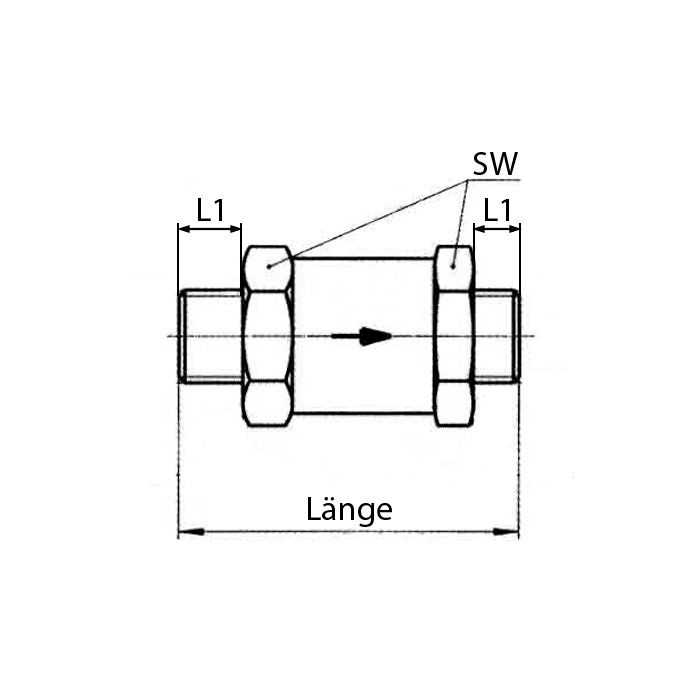

| SW | 46 mm |
| Max. operating pressure _2 | 16 bar |
| Length | 84 mm |
| L1 | 15 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45098 |
| Flow values | approx. 340 m³/h |
| Spring | Stainless steel 1.4323 |
