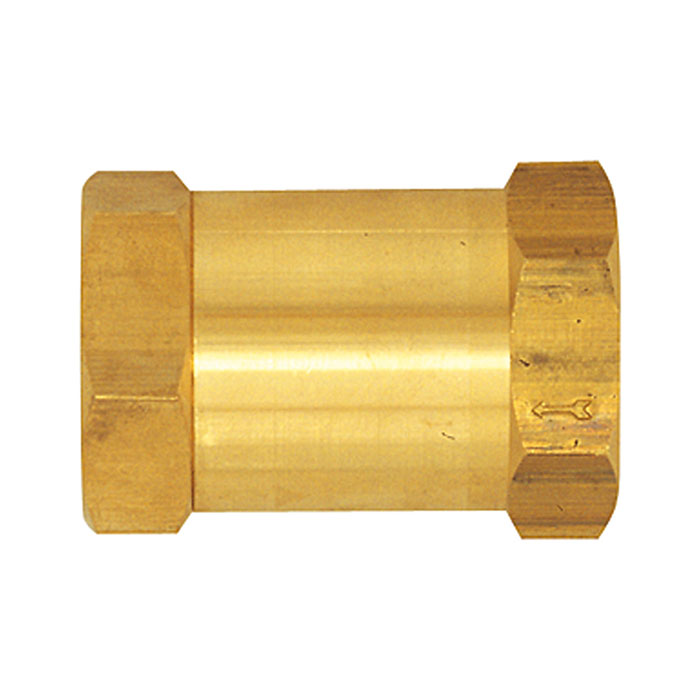

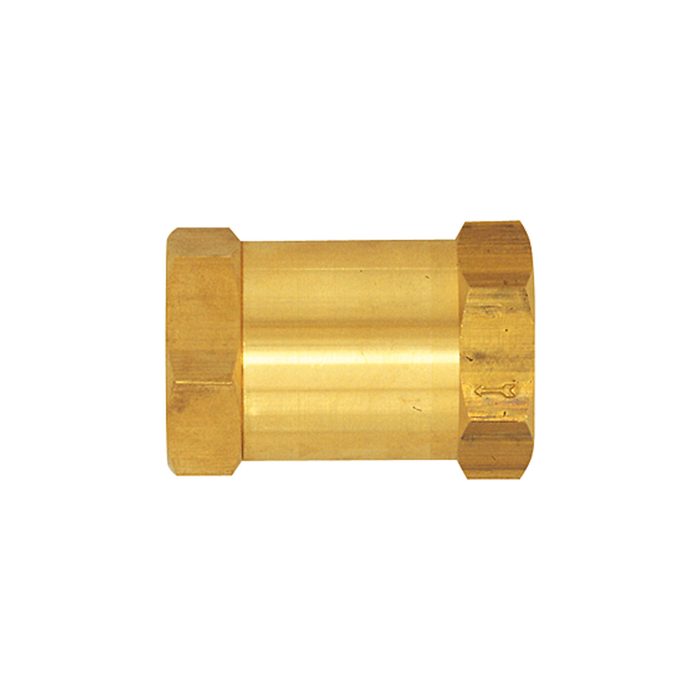

RIEGLER Non-return valve, straight through, MS, G 3/4 IG, 0,1 - 0,2 bar
Type number: 227.04-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Non-return valve made of bare brass, for industrial systems, max. 16 bar - Type 227.04-1
The RIEGLER non-return valve, straight through, MS, G 3/4 IG, 0.1 - 0.2 bar regulates or blocks the flow of media in industrial pipelines. The housing is made of bright brass with FKM seals. Designed for a maximum operating pressure of 16 bar. The permissible medium temperature is between -30 °C and 180 °C. Connection thread G 3/4 IG - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6c |
| Max. operating pressure | 16 bar |
| Max. operating pressure | 16 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | FKM |
| Flow direction | Note arrow |
| Flow values | approx. 190 m³/h |
| Installation position | any (horizontal installation preferred) |
| Spring | Stainless steel 1.4320 |
| Housing | Brass bright |
| Thread | G 3/4 IG |
| Class name | PLUS |

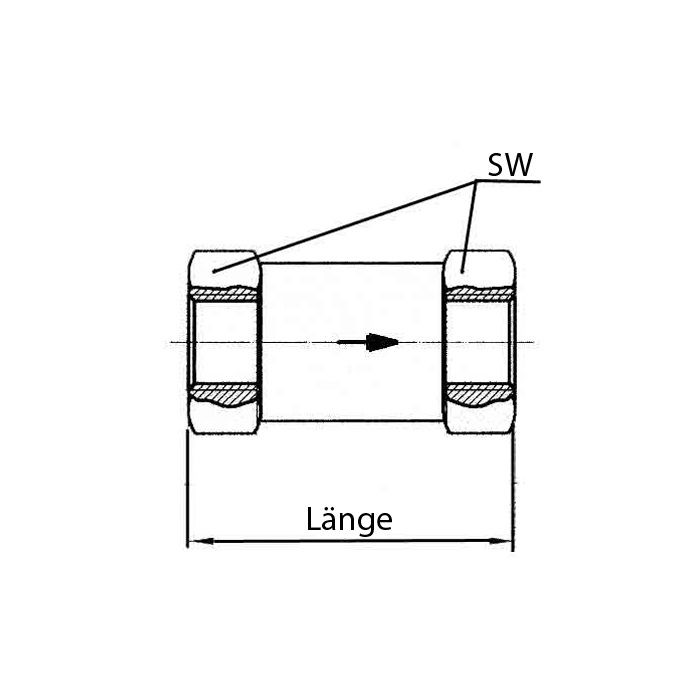

| Length | 58 mm |
| Material | Brass bright |
| Material identification | CW614N |
| Medium temperature max. | 180 °C |
| Medium temperature min. | -30 °C |
| Opening pressure min. | 0.1 - 0.2 bar |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW | 36 mm |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

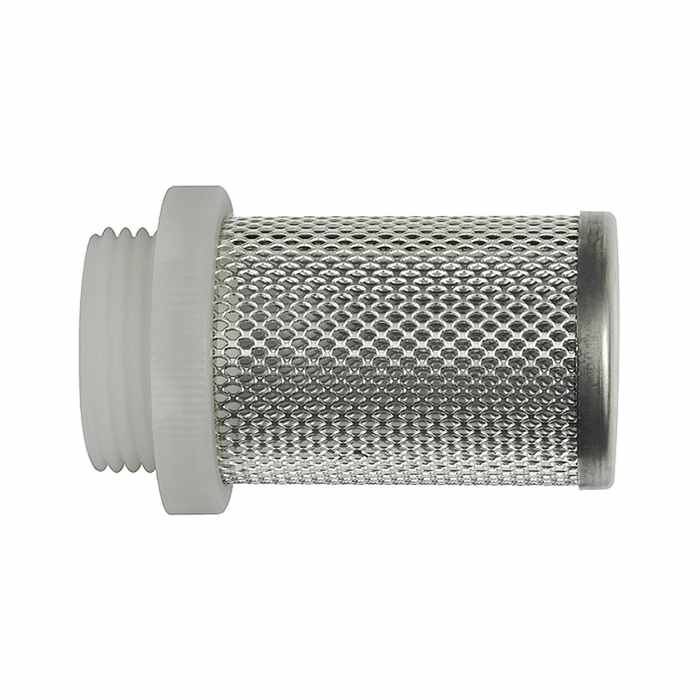

![[134047] RIEGLER Strainer for check valves, G 3/4, Stainless steel 1.4301/Plastic](/web/image/product.template/205323/image_128/%5B134047%5D%20RIEGLER%20Strainer%20for%20check%20valves%2C%20G%203-4%2C%20Stainless%20steel%201.4301-Plastic?unique=02a8bef)
|
