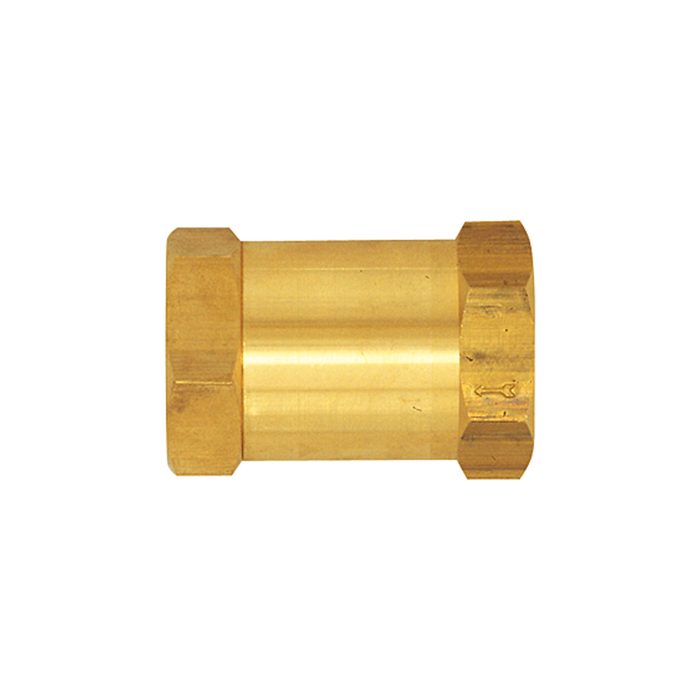

RIEGLER Non-return valve, straight through, MS, G 1 female thread, 0.1 - 0.2 bar
Type number: 227.05-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Check valve made of bare brass, for industrial systems, max. 16 bar - Type 227.05-1
The RIEGLER non-return valve, straight through, MS, G 1 female thread, 0.1 - 0.2 bar regulates or blocks the flow of media in industrial pipelines. The housing is made of bright brass with FKM seals. Designed for a maximum operating pressure of 16 bar. The permissible medium temperature is between -30 °C and 180 °C. Connection thread G 1 female thread - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Brass bright |
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Medium temperature min. | -30 °C |
| Medium temperature max. | 180 °C |
| Opening pressure min. | 0.1 - 0.2 bar |
| Material | Brass bright |
| Installation position | any (horizontal installation preferred) |
| Flow direction | Note arrow |
| Thread | G 1 IG |

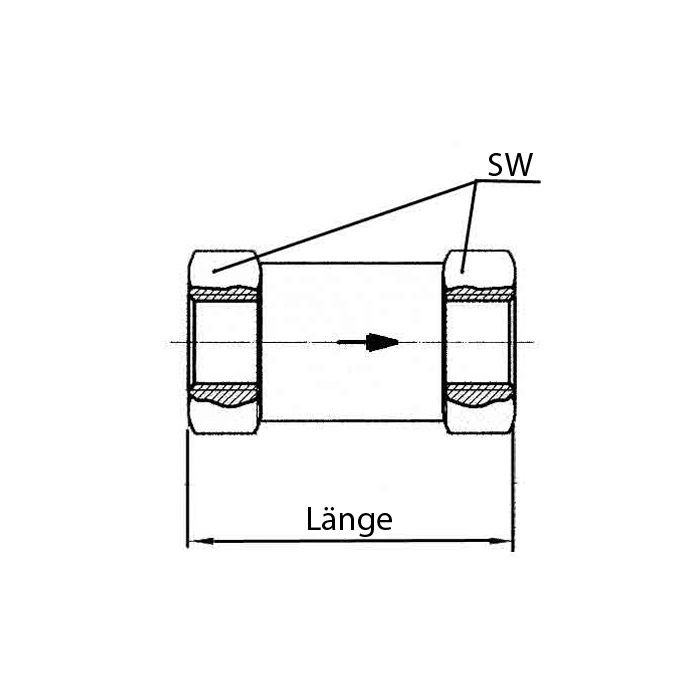

| SW | 46 mm |
| Max. operating pressure _2 | 16 bar |
| Length | 67 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45098 |
| Flow values | approx. 340 m³/h |
| Spring | Stainless steel 1.4322 |
