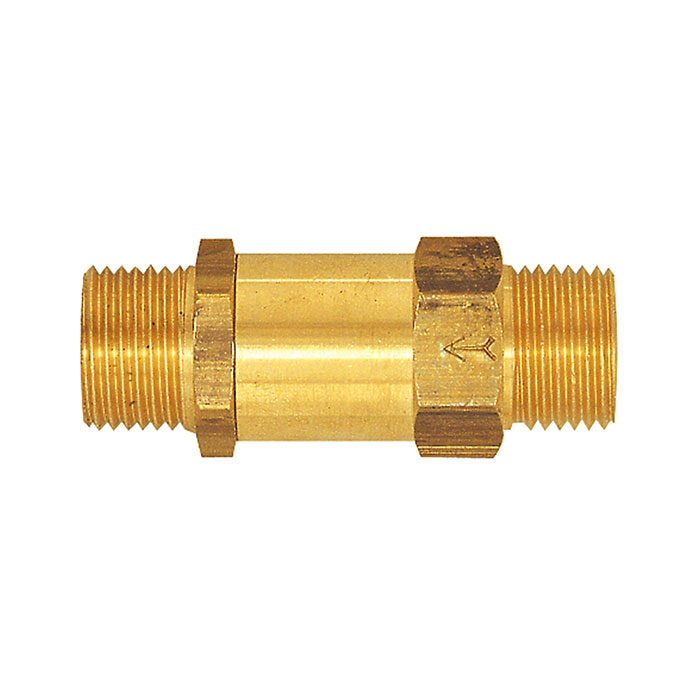

RIEGLER Non-return valve, straight through, MS, G 3/4 AG, 0,1 - 0,2 bar
Type number: 227.13-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Non-return valve, straight through, MS, max. medium temperature 180 °C, G 3/4 male, PN max. 16 bar, opening pressure 0.1 - 0.2 bar
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6c |
| Max. operating pressure | 16 bar |
| Max. operating pressure | 16 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | FKM |
| Flow direction | Note arrow |
| Flow values | approx. 190 m³/h |
| Installation position | any (horizontal installation preferred) |
| Spring | Stainless steel 1.4321 |
| Housing | Brass bright |
| Thread | G 3/4 AG |
| Class name | PLUS |

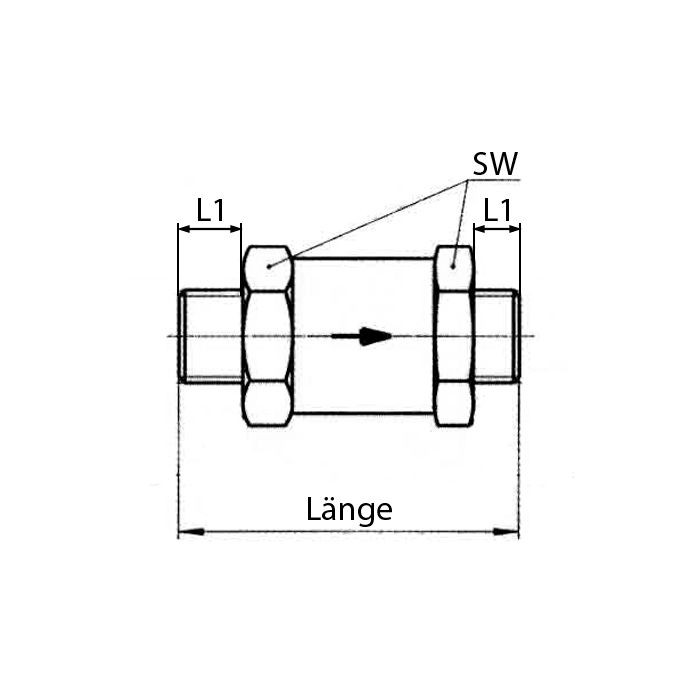

| L1 | 14 mm |
| Length | 77 mm |
| Material | Brass bright |
| Material identification | CW614N |
| Medium temperature max. | 180 °C |
| Medium temperature min. | -30 °C |
| Opening pressure min. | 0.1 - 0.2 bar |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW | 36 mm |
