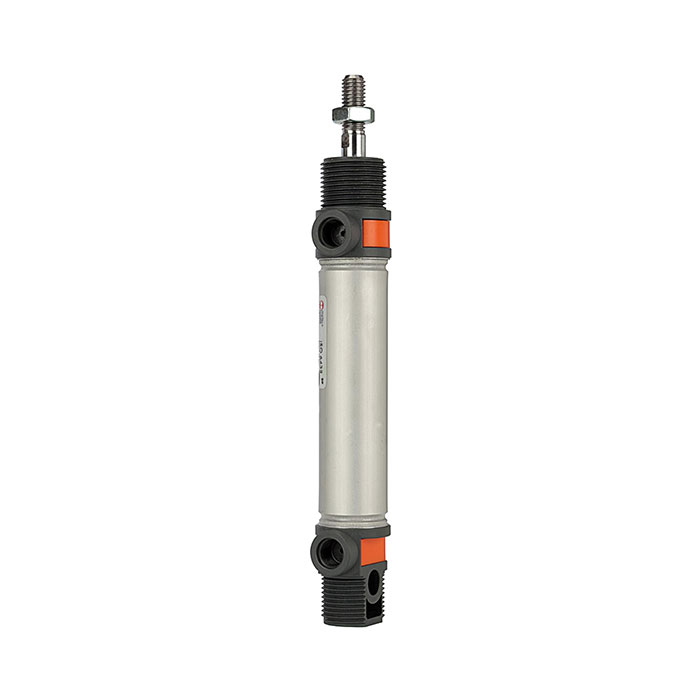

RIEGLER Round cylinder TP double-acting, Piston Ø 20, Stroke 160, G 1/8
Type number: 8.DM.20160
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Round cylinder TP double-acting for automation technology, max. 10 bar, G 1/8 - Type 8.DM.20160
The RIEGLER round cylinder TP double-acting, solenoid, piston Ø 20, stroke 160, G 1/8 converts compressed air into linear force and movement - manufactured in accordance with ISO 15552 / ISO 6432. Designed for a maximum operating pressure of 10 bar. The temperature range extends between -10 °C and 60 °C. G 1/8 connection thread - suitable for common industry standards. With piston Ø 20 mm, stroke 160 mm, C45 steel piston rod, hard chrome-plated - for powerful linear actuator solutions. Standard-compliant and interchangeable across manufacturers.
Field of application
Typical areas of application: Automation, mechanical engineering and handling technology.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Series | Series TP |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Lid | Technopolymer |
| Structure | Connection: Aluminum tube / flanged end caps |
| Floor | Technopolymer |
| Guide bush | Technopolymer |
| Piston rod seal | PU |
| Piston seal | PU |
| Piston Ø | 20 mm |
| Function | double-acting |
| Response pressure min. | 0.6 bar |
| Stroke | 160 mm |
| Piston rods AG | M8 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | C45 steel, hard chrome-plated |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
| Magnet | with magnet |
| Standard | according to ISO 6432 |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
