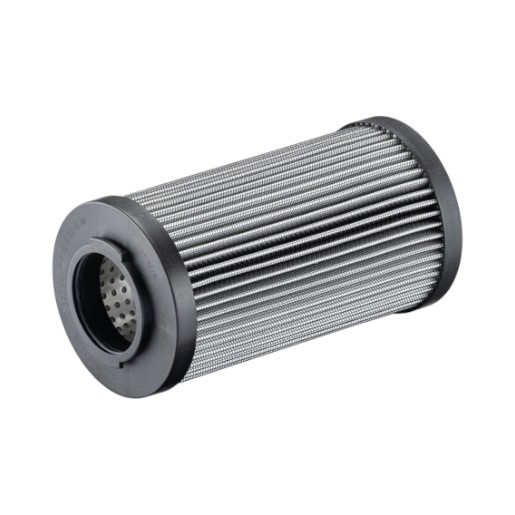

Hengst Pure Function filter element for Hydac filter 0330R010ON
Manufacturer type designation: 10.330LA PF10-E00-6-M
High-quality filtration solutions for hydraulic systems. In the filtration industry, one name stands for excellence, advancement, and top-notch performance: Hengst Filtration. Over many years, Hengst Filtration has established itself as a leading provider of filter solutions for diverse applications and industrial sectors.
| Nominal size | 330LA |
| Filter material | Multilayer glass fiber material |
| Filter fineness (micrometres) | 10 |
| max. differential pressure (bar) | 20 |
| Seal material | NBR |
| HFC/HFA resistance | Yes |
| Height (mm) | 194.5 |
| Inner diameter (mm) | 48.3 |
| Outer diameter (mm) | 94.5 |
