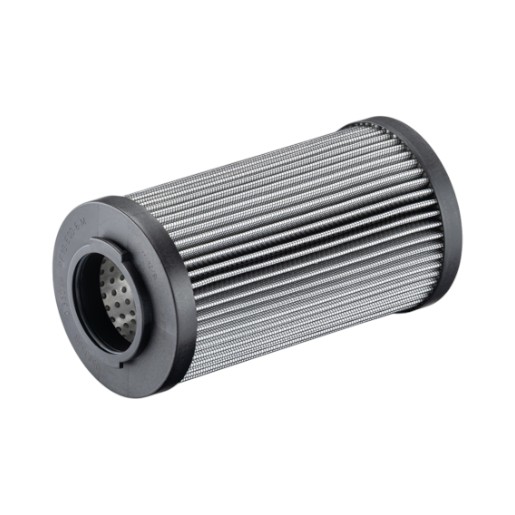

Hengst Pure Function filter element for Hydac filter 0110D010ON

Replacement filter element for Hydac 0110D010ON - Hengst Pure Function pressure filter with 10µm glass fiber

The Stallion Filter element Pure Function 9.110LA PF10-E00-0-M is a high-quality replacement filter element for the Hydac pressure filter 0110D010ON. This hydraulic filter element from the Hengst Pure Function series offers a reliable and economical alternative to the original Hydac pressure filter element. With a filter fineness of 10 µm and a glass fiber material (duo layer), it protects downstream hydraulic components such as valves, pumps and cylinders.

Performance data & compatibility

• Compatibility: Direct replacement for Hydac 0110D010ON - precise installation in Hydac pressure filter housings without modification.
• Hengst type designation: 9.110LA PF10-E00-0-M - from the Hengst Pure Function product line for hydraulic pressure lines.
• Filter fineness: 10 µm (nominal filter fineness) - reliable particle separation for clean hydraulic fluid.
• Filtration performance: β10 > 200 according to ISO 16889 - over 99.5 % separation efficiency for particles ≥ 10 µm.
• Filter medium: 1x glass fiber duo layer - three-stage filter structure (pre-filter, intermediate filter, main filter) for optimum dirt absorption.
• Pulsation stability: Excellent (+++) - robust against pressure peaks and pulsations in the hydraulic system.

3-layer material combination

• Support fabric: Inner and outer support fabric for mechanical stability of the filter element.
• Pre-filter (1st stage): Glass fiber pre-filter layer traps coarse particles and protects the main filter stage.
• Intermediate filter (2nd stage): Glass fiber intermediate layer for progressive filtration and increased dirt holding capacity.
• Main filter (3rd stage): Glass fiber main filter layer with 10 µm nominal filter fineness - defines the separation efficiency of the element.

Advantages of the Hengst Pure Function replacement filter element

• Cost-efficient alternative: High-quality replacement filter element for Hydac 0110D010ON at attractive conditions - without compromising on filter performance.
• Perfect replacement: Directly compatible with the Hydac pressure filter housing - simple 1:1 replacement without conversions or adjustments.
• Defined replacement intervals: Hengst Pure Function filter elements are designed for predictable maintenance intervals - reliable filtration over the entire service life.
• Sustainability: Hengst Pure Function stands for resource-conserving production and environmentally conscious filter technology.
